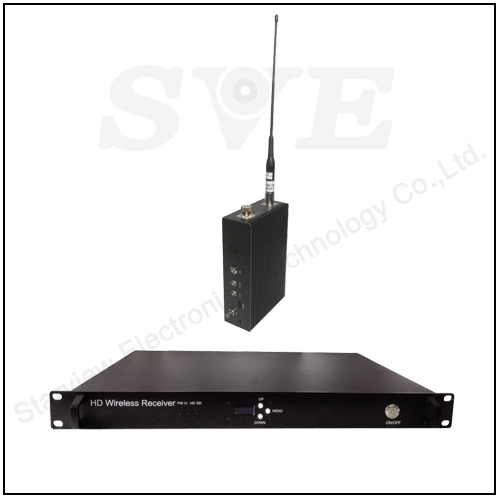

Cofdm HDMI SDI Cbvs Nlos Wireless Portable HD Video Transmitter System with Two-Way Voice

It has strong anti-interference ability and non line of sight diffraction ability
The system adopts H.264 digital video coding standardClear picture to HD 1080p effect
Use COFDM ( Coded Orthogonal Frequency Division Multiplexing:Coded orthogonal frequency division multiplexing
Diversity dual antenna reception, so that the real-time image clearer and smoother
Can be used in public security, fire, civil defense, emergency law enforcement, environmental monitoring, earthquake relief, flood control, emergency power, emergency rescue, maritime surveillance, law enforcement inspection, customs, port monitoring, forest fire prevention, oil security, television, unmanned vehicles, unmanned boat, special robot etc.

Model	SV-CF520A

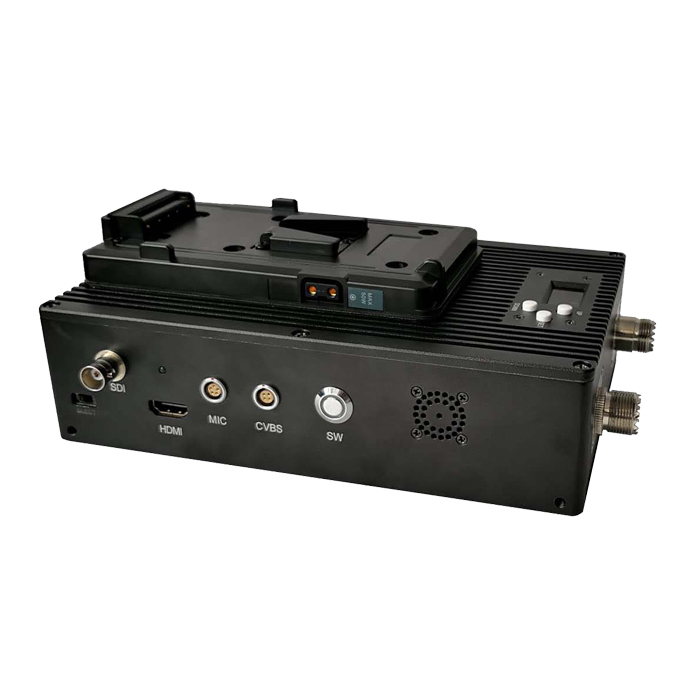

Transmitters
Working frequency	300MHz~2400MHz,Frequency customization
Voice frequency	150MHz-240MHz,Frequency customization
RF power	1-5W adjustable
Channel bandwidth	2/3/4/5/6/7/8MHz adjustable
FEC	1/2,2/3,3/4,5/6,7/8
Protection interval	1/32,1/16,1/8,1/4
Stream	2Mbps~12Mbps
Time delay	≤200ms
Compressed format	H.264
Transmission distance	ground-to-air > 70 km,Sea surface > 30 km,Urban area >3 km,A suburb > 10 km
Audio interface	HDMI/SDI1, CVBS1, Intercom interface*1
Image	HD1080P,Downward compatibility1080I,720P,480P,SD
Image frame	24,50,60/S,Compatible with other frame rates
Power	DC14.4V,Special battery for radio and television,SONY V
Size specification	21013155,No battery
Weight	1.6kg,No battery

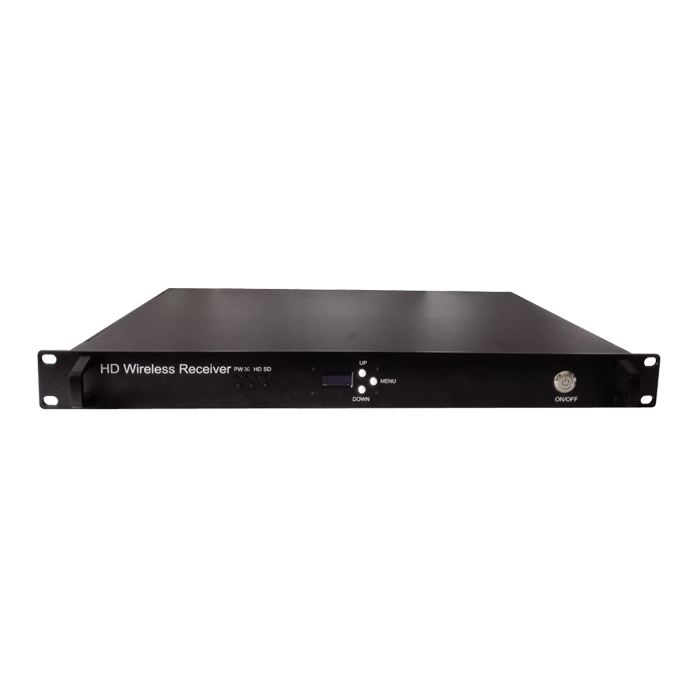

Receivers
Working frequency	300MHz~860MHz,Frequency customization
Voice frequency	150MHz-240MHz,Frequency customization
Channel bandwidth	2/3/4/5/6/7/8MHz adjustable
Sensitivity	2MHz:-103dBm;2.5MHz:-102dBm;4MHz:-100dBm;8MHz:-97dBm
Receiving technology	Spatial diversity technique
Receiving polarization	Vertical polarization, dual antenna reception
Compressed format	H.264
Video Output	1 way HDMI/HD-SDI,2 way BNC(RJ45 Optional)
Network interface	Optional
Image	HD1080P,Downward compatibility1080I,720P,480P,SD
Image frame	24,50,60/S,Compatible with other frame rates
Power	AC220/DC12V
Size specification(mm)	48028045mm
weight	4Kg

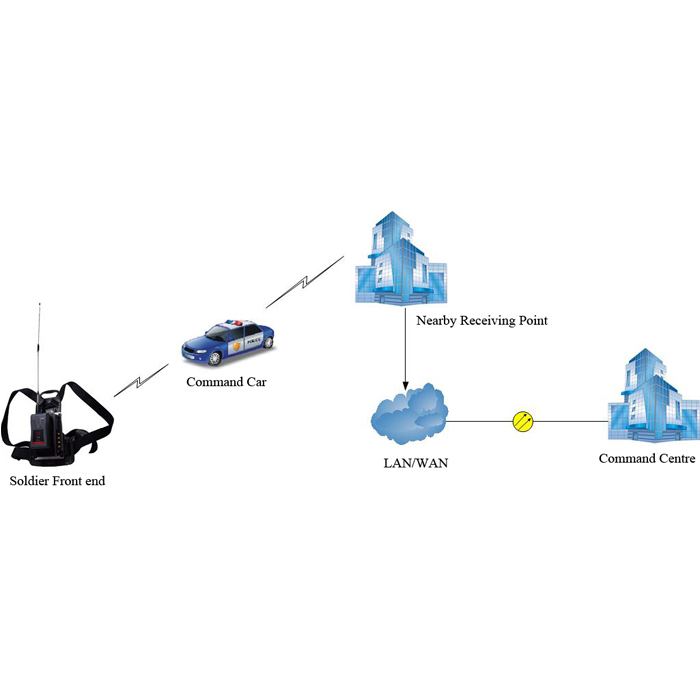

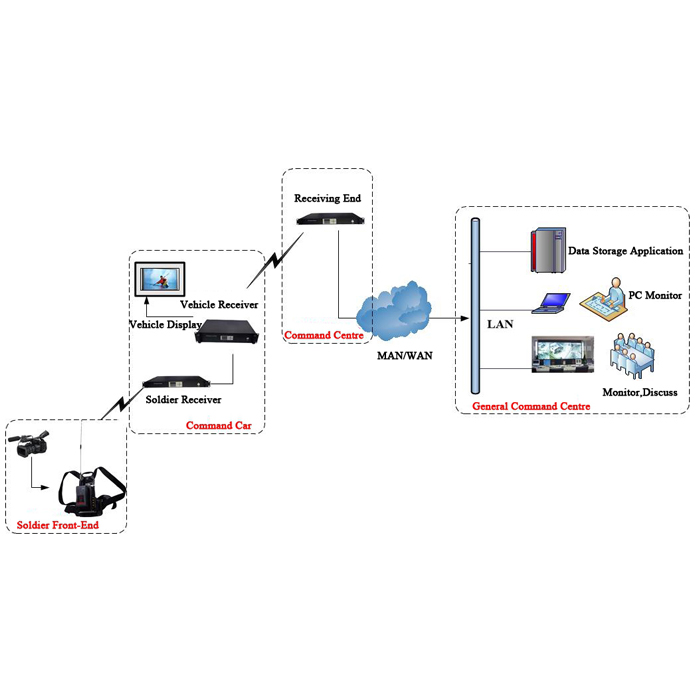

System List
