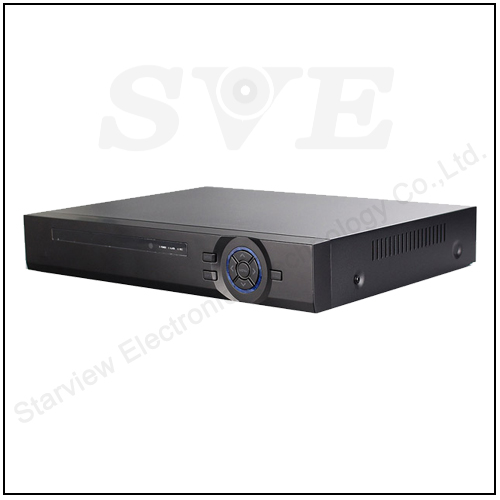

32 Channel H. 265 4K Embedded Plug and Play Poe NVR Support Face Detection
Product Description
Support Face Detection
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support various mobile monitoring (IOS, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely;
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support various mobile monitoring (IOS, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely;
| Model No. | NST-NVR7516P-4K |
| System | |
| Main Processor | Hi3798M |
| Operating system | Embedded LINUX operating system |
| System resource | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | |
| Operation interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Display screen | 1/4/8/16/25/32 |
| Video | |
| Video input (IP) | 32*4K/25*5MP/32*1080P |
| Video standards | PAL(625TVL,50f/s);NTSC(525TVL,60f/s) |
| Video compression | H.265/H.264 |
| Display quality | Max:4K |
| Playback quality | 4K/5MP/4M/3MP/960P |
| Decode | 1*4K/2*5M/4*1080P |
| Motion detection | Depend on camera |
| Audio | |
| Audio compression | G711A |
| intercom | Unsupport |
| Record and playback | |
| Record mode | Manual>Alarm>Video Detection>Continuous |
| Local playback | 1*4K/2*5M/4*1080P |
| Search mode | Search by Time/calendar/event/channel |
| Interface | |
| Video output | 1ch HDMI HD Output ,1CH VGA Output |
| Audio I/O | 0/0 |
| Alarm I/O | 0/0 |

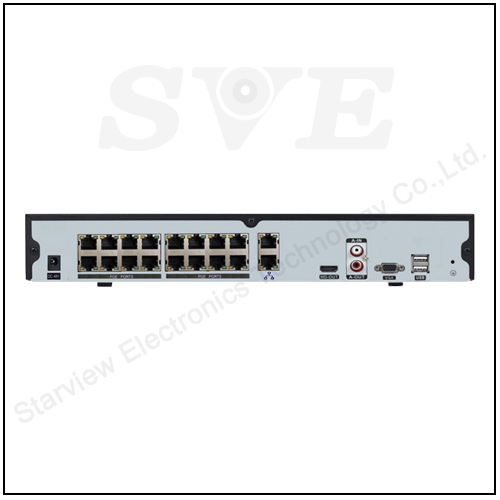

| Network interface | 1*SFP Port, 2* 100M/1000M Adaptive Ethernet port,16 POE Output ports |
| USB interface | 2*USB2.0 port |
| Hard disk | 2*SATA (Up to 8TB for each disk) |
| other | |
| PTZ control | Control PTZ device by network |
| ONVIF | Available |
| Power supply | DC 48V /5A |
| Power Consumption | <10W(Without HDD) |
| Work environment | Temperature: 0ºC- + 55ºC, Humidity: 10% - 90%RH , Atm: 86kpa - 106kp |
| Dimension | L440*W320*H45MM |
| Weight | 3.2KG |
