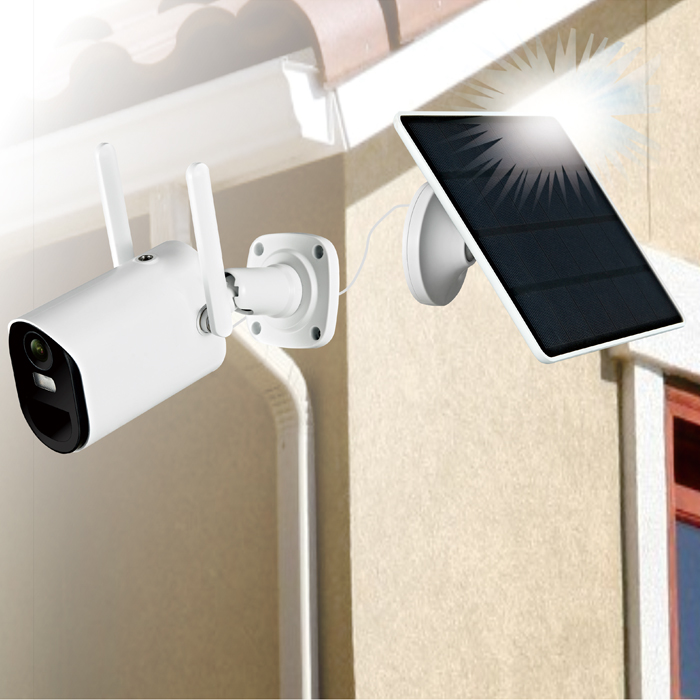

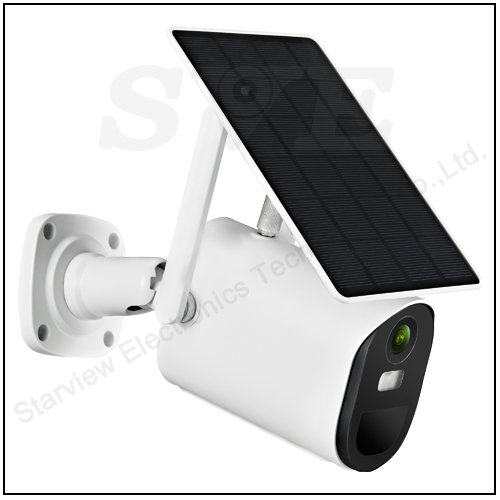

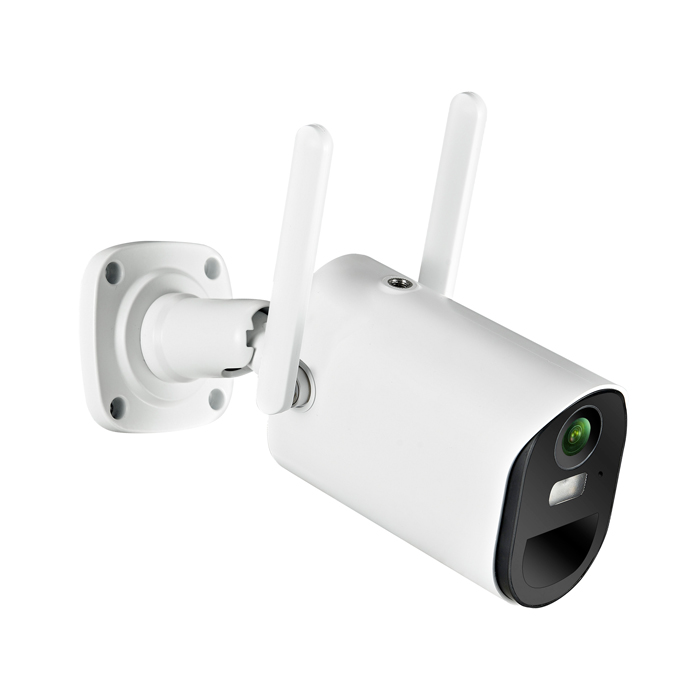

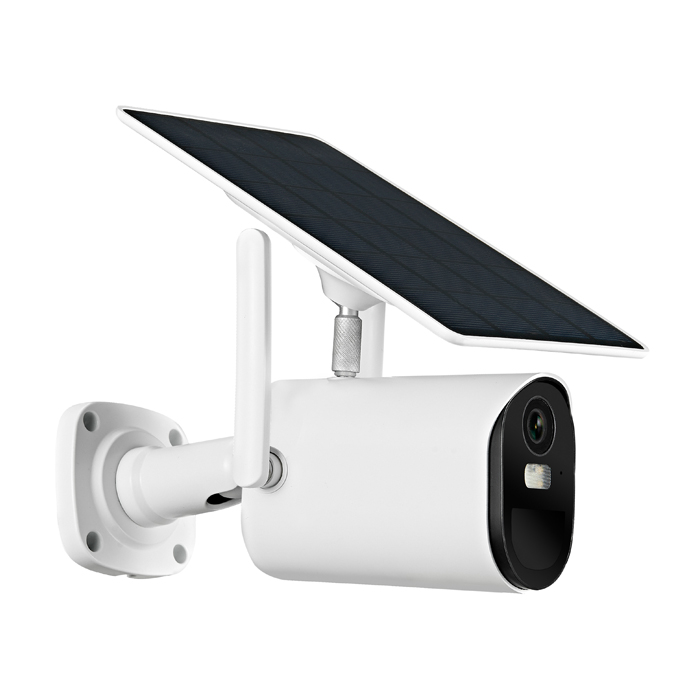

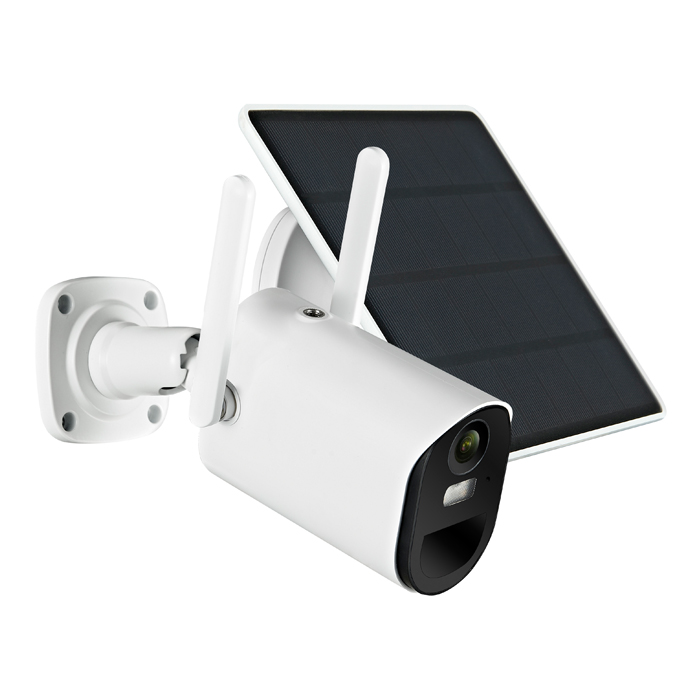

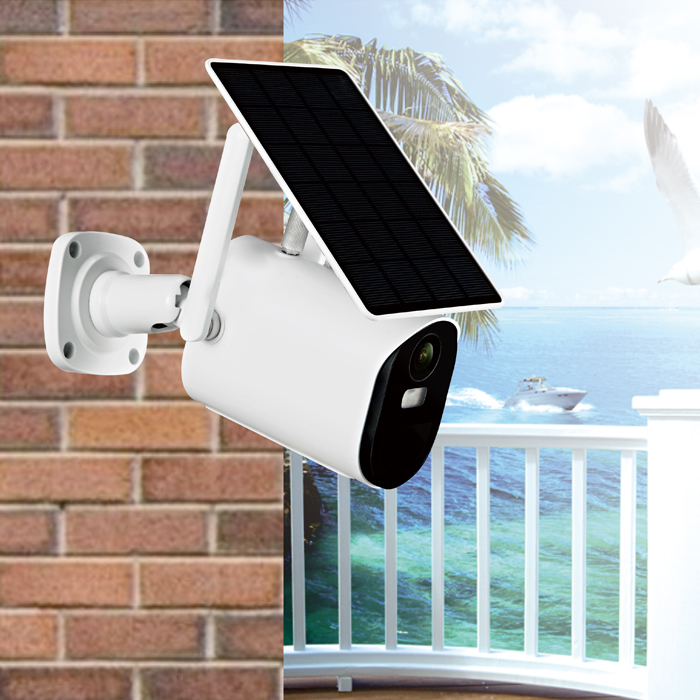

4G PIR Human Detection Ultra-Low Power IR IP Solar Camera
Product Features
Technical parameters
- Solar panel universal adjustment, built-in super capacity battery
- Ultra-low power standby, quick wake up in 0.2 seconds
- PIR Human detection + AI Human shape detection
- High-performance ISP and 1/2.7" progressive sensor, blacklight full color
- 1920*1080P or 2592*1520 HD video
- Built-in microphone and loudspeaker,support two way audio
- Support Cloud storage and local storage
- APP support Android/IOS
- IP65 waterproof
- Support All-in-One installation and separated installation
Technical parameters
| Model | ||
| Model No. | SV-B104G | |
| General | ||
| Resolution | 2MP(1920*1080) | 4MP(2592*1520) |
| Main processor | Ingenic-T31ZL | Ingenic-T31ZX |
| Image Senor | GC2063 | GC4653 |
| APP Operation System | Android, IOS | |
| Compression | H.264+/H.265 | |
| Internet Connection | ||
| 4G | TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD | |
| 4G Version | CN/ AU/ EU/ JP/ US/ ASEAN (Optional) | |
| Alarm | ||
| Detection Mode | PIR Human detection + AI Human shape detection | |
| Detection | Distance 0~12M | |
| Detect Angle | 105° | |
| Alarm | Realtime call or message push | |
| Night Vision | ||
| Full color night vision | 0.001LUX | |
| IR LED | infrared LED 15M IR distance | |
| White light LED | white light LED 15M distance | |
| Audio | ||
| Built-in speaker | 3W | |
| Built-in microphone | voice monitoring distance 20M | |
| Lens | ||
| Lens | 2.8mm | |
| Lens Angle | 105° | |
| Storage | ||
| Cloud Storage | storage when alarm recording | |
| Local Storage | TF Card Max 128G | |
| Power | ||
| Power Supply Mode | Solar Panel+ Build in Batteries | |
| Panel Material | monocrystalline silicon | |
| Solar Energy Power | 3.5W | |
| Battery Capacity | Bulit in 3pcs 18650 batteries | |
| Operating power consumption | 2.5W | |
| Standby consumption | 0.003W | |
| Others | ||
| Working Environment | Indoor/outdoor | |
| Operation Temperature | -30°~+60° | |
| Humidity | 0%~90%RH | |
| Package | ||
| N.W. | 1KG/PCS | |
| Giftbox size | 208*154*118mm | |
| Quantity in carton | 12pcs | |
| G.W. | 12.5KG | |
| Carton size | 48.5*22.1*49.3cm | |
