1080P Full-Color Panoramic Fixed-Focus Camera Full-Color Night Vision Auto-Zoom Camera IP67 IR IP PTZ Camera

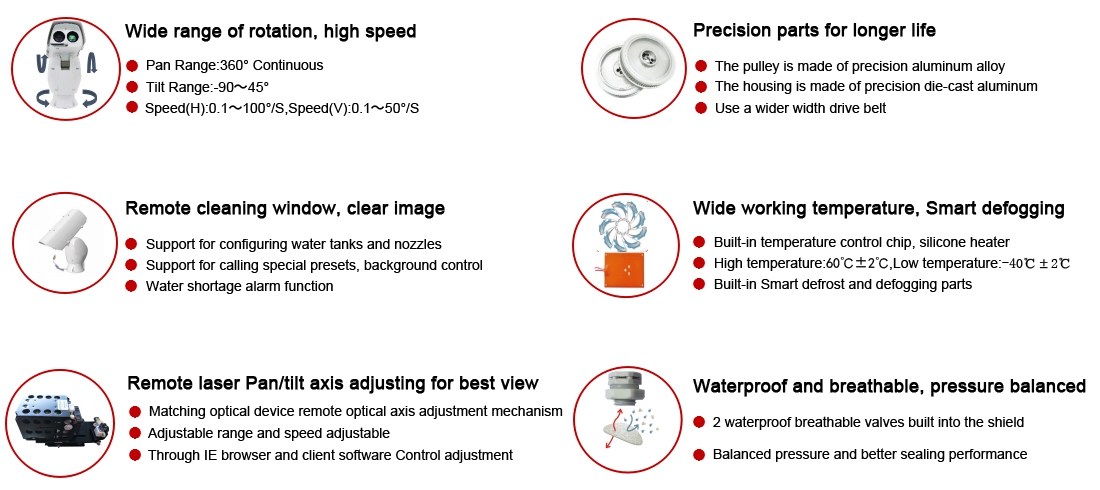

Key Features
  1. Full color imaging at very low illumination.
  2. Super distance recognition, no need to fill light
  3. No visible trailing shadows for moving objects in night scenes
  4. Fast focusing speed and super light suppression.
  5. Horizontal 360° continuous, vertical -90°~+45°rotation.
  6. Support 3D positioning function, clickable tracking and zooming through the client/IE.
  7. Outdoor IP67 protection level, lightning, surge and surge protection.
  8. Support timed task preset point, pattern scan, renewal scan, left right scan
Product Highlight
Full-color night vision head is based on the very low light imaging technology, through the separation of noise and real signal from the very low light signal deep learning AI algorithm; in the noise reduction at the same time the real signal is enhanced to the normal light environment intensity, the signal to noise ratio is effectively improved to achieve normal imaging in the very low light environment.
Mainly used in urban high-altitude lookout, border and sea defense, sea chokepoints, road monitoring, maritime farming, parks, industrial parks and other places.

Technical parameters
Model SVN-800AS30 SVN-800AS40 SVN-800ASFC
Sensor 1/1.8" Progressive Scan CMOS
Pixels 2.0MP
Minimum illumination Color:0.005Lux Color:0.001Lux
Frame Rate 10fps/30fps real time video
Lens focal length F=6.5~202mm, 31x optical zoom F=6.5~252mm, 40x optical zoom Equivalent 290mm
Lens aperture F1.55-F4.8 F1.4-F4.8 F1.6
Horizontal field of view 58.6°-2.02° 73°-1.9° 4.8°
Conversion Mode ICR infrared filter type
Video Compression H.265/H.264
White balance Automatic
Gain control Automatic
Wide Dynamic 120dB 72-120dB
Signal-to-noise ratio 0.01 LUX: S/N ratio ≥ 30dB. 0.01 LUX: S/N ratio ≥ 20dB.
AI digital noise reduction Support -
Rotation speed Horizontal 0.1 to 100°/S, vertical 0.1 to 50°/S
Positioning accuracy 0.1°±50%
Preset 255
3D function Support frame enlargement, target locking field of view center function (optional)
Automatic cruise Support focal length and head speed matching
Power failure memory Support power-off state memory function, automatically return to the head and lens state before power-off after power on
Watch function On/Off, preset point/cruise scan can stay in idle state after specified time
Automatic recall (including idle state entered after power-up)
Remote Upgrade Support both movement and head remote upgrade (related to movement)
Real-time angle back transmission Support real-time angle return or query angle return function
Information Display Support
Angle control Support
Smart Wiper Remote intelligent control
Fan/Heating Real-time temperature detection; low temperature start, pure physical detection
Waterproof respirator Built-in 2 waterproof respirators to reduce fogging and condensation

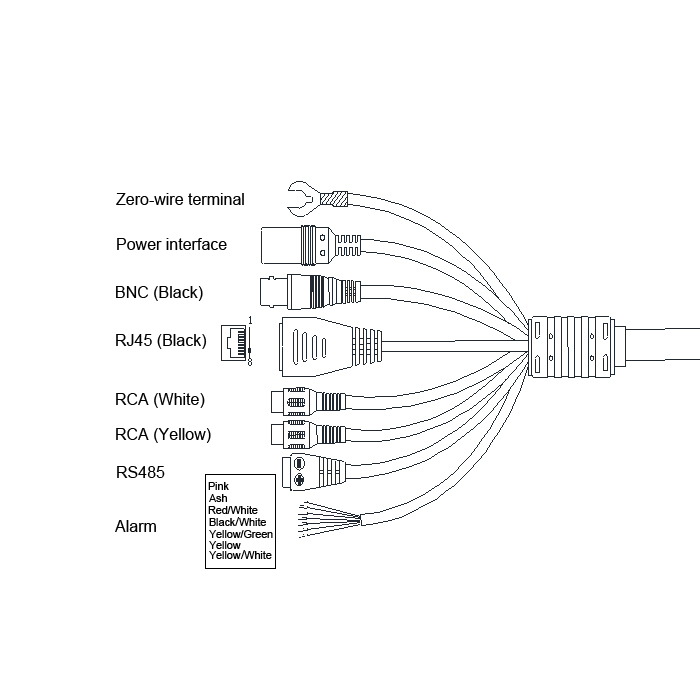

Communication Baud Rate 2400/4800/9600/19200bps
Communication Interface RS485+RS232
Communication protocols PELCO+VISCA
Network Protocols IPv4/IPv6,HTTP,DNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,DHCP
Access Protocol ONVIF/GB28181
Network Interface RJ4510/100Base-T
Audio Interface 1-channel audio input, 1-channel audio output (optional)
Alarm interface 2-channel alarm input/2-channel relay output (optional)
Analog video interface Not supported
External 485 interface Support adaptive Pelco-P, Pelco-D and other protocols
Ground Line Grounded all the way
Power supply DC/AC24V/3.0A
Power consumption <110W
Working environment temperature -40ºC~60ºC
Humidity of working environment 0~95% (non-condensing)
Protection level IP67, built-in 4000V lightning, surge and surge protection

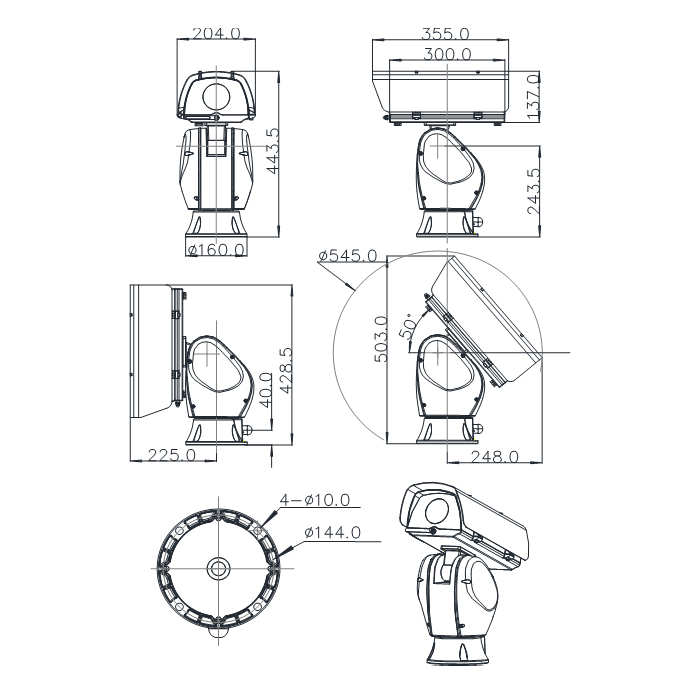

Dimension L355mm×W204mm×H443mm
Product weight ≤10kg
Load weight ≤4kg (including movement shield)
