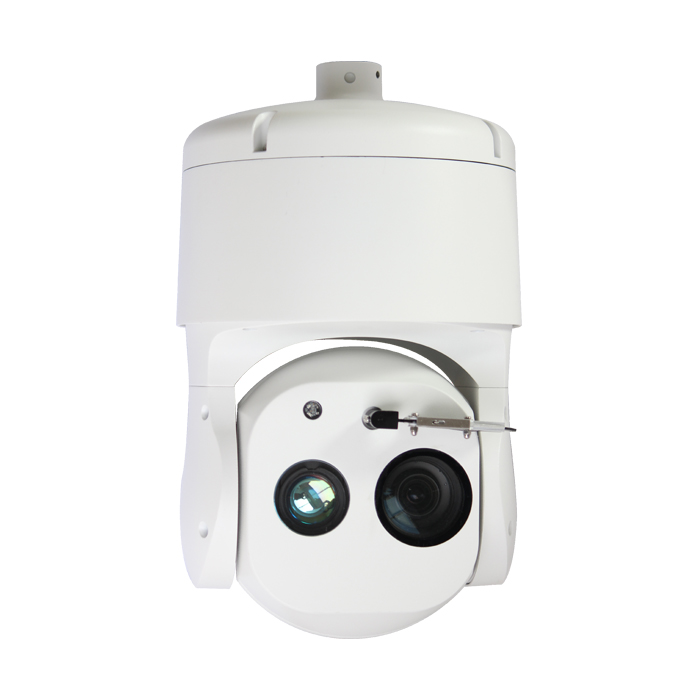

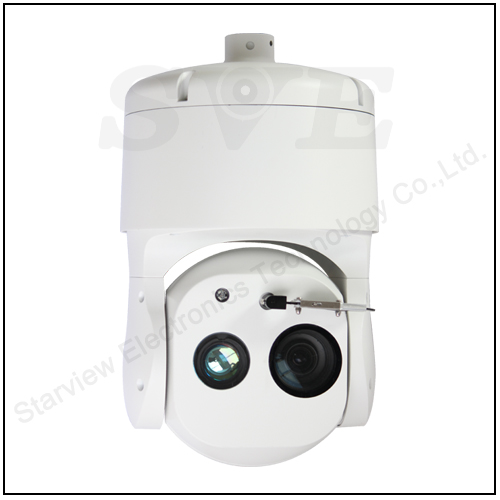

8MP 40X Zoom 500M IR lasers IP PTZ Camera
Key Features
Technical parameters- 8MP(3840*2560) 1/1.8 " Progressive Scan CMOS.
- 40X Optical Zoom, 6.4-256mm, Aperture value: F1.35- F4.6.
- Pan:360°, Tilt: -25°~90°,Speed: 0.05°~120°.
- H.265/H.264 video compression algorithm, ultra-low bitrate.
- Supports power failure state memory function
- Full metal struture with Magnesium base, strong toughness.
- Waterproof: IP66 With auto-sensing wipers, IR Laser distance: 500 Meters.
| Model | SVN-40HBP789-8MP |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min.Illumination | Color:0.0005 Lux @ (F1.8, AGC ON); B/W:0.0001Lux @ (F1.8, AGC ON) |
| Shutter | 1/25s to 1/100,000s; Support delayed shutter |
| Aperture | PIRIS |
| Day/Night Switch | ICR cut filter |
| Lens | |
| Focal Length | 6.4~256mm, 40x Optical Zoom |
| Aperture Range | F1.35-F4.6 |
| Horizontal Field of View | 59-1.98° (wide-tele) |
| Minimum Working Distance | 100mm-1500mm (wide-tele) |
| Zoom Speed | Approximately 4.5s(optical, wide-tele) |
| Compression Standard | |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| H.264 Type | BaseLine Profile / Main Profile / High Profile |
| Video Bitrate | 32 Kbps~16Mbps |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Image(Maximum Resolution: 3840*2160) | |
| Main Stream | 50Hz: 25fps (3840*2160, 1920*1080, 1280*960, 1280*720); |
| 60Hz: 30fps (3840*2160, 1920*1080, 1280*960, 1280*720). | |
| Third Stream | 50Hz: 25fps (704 x 576); 60Hz: 30fps (704 x 576) |
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse |
| BLC | Support |
| Exposure Mode | AE / Aperture Priority / Shutter Priority / Manual Exposure |
| Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
| Area Exposure / Focus | Support |
| Defog | Support |
| Day/Night Switch | Automatic, manual, timing, alarm trigger |
| 3D Noise Reduction | Support |
| Picture Overlay Switch | Support BMP 24-bit image overlay, customizable area |
| Region of Interest | Support three streams and four fixed areas |
| Intelligent Calculation | 0.8T |
| Network | |
| Storage | Support micro SD card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) |
| Pan&Tilt | |
| Pan Range | 360° rotate continuously |
| Pan Speed | Keyed 200° /s, Manual 0.05°~200° /s |
| Tilt Range | -25°~90° |
| Tilt Speed | Keyed 120°/s, Manual 0.05°~120° /s |
| Position accuracy | ±0.3° (±0.05° optional) |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Wiper function | Auto/Manual, supports rain-sensing auto mode. |
| Power loss recovery | Support |
| IR Lasers | |
| Distance | 500m |
| Perspectives | Synchronized zoom with camera |
| General | |
| Power Supply | AC24±25%, 50Hz |
| Power consumption | MAX 48W |
| Work.Environment | -40 °C~70°, Humidity less than 90% |

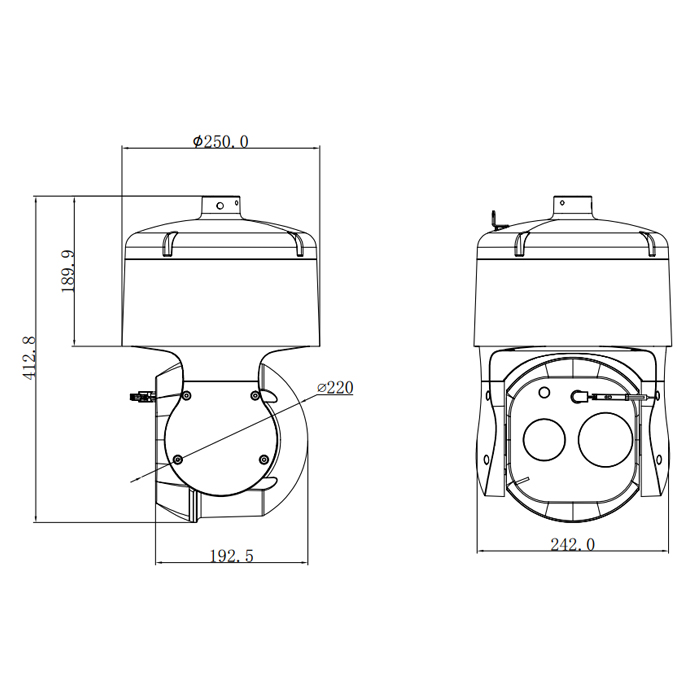

| Dimension | 412.8*φ250mm |
| Weight | 7.8Kg |
| Protection level | IP66 |
