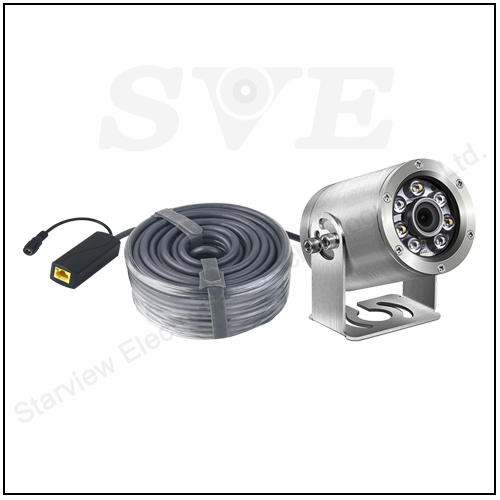

1080P 316L stainless Steel IP68 Underwater Camera
| Model | SVN-S2P-CX5 |
| Resolution | 1920*1080 |
| Frame rate | 25fps |
| Lens | 2.0mm/2.8mm |
| Image sensor | HiSilicon + Sony |
| Certification | IP68 waterproof certification, CE certification |
| Material | 316L stainless steel, corrosion resistant, acid and alkali resistant |

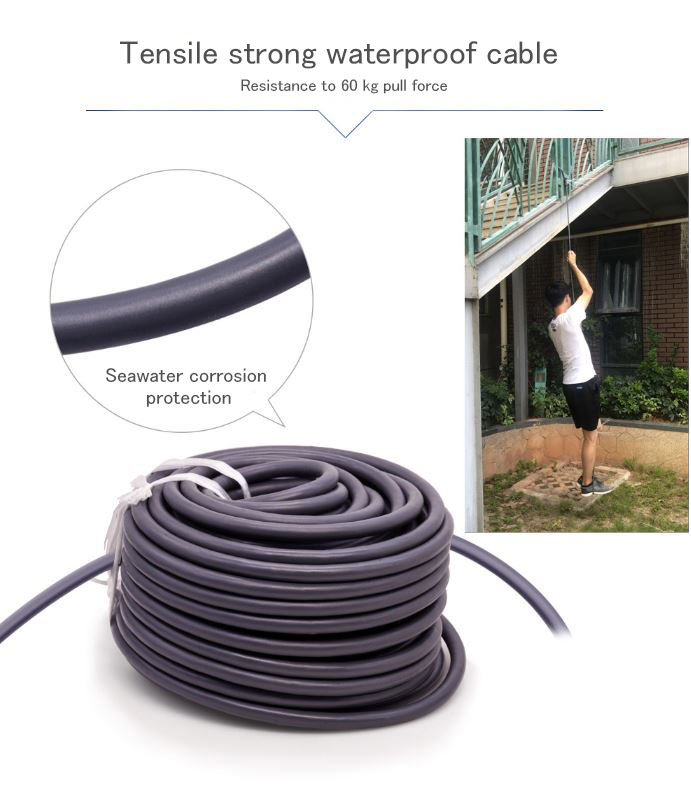

| Wire rod | Waterproof, corrosion-resistant, acid and alkali resistant, and at the same time can bear the weight of 30KG normal work |
| Applicable water quality | Sea water, fresh water |
| Visible distance | Depends on water clarity and turbidity, 0-20 meters. |
| Waterproof level | IP68 waterproof, 0-50 meters water depth without water ingress |

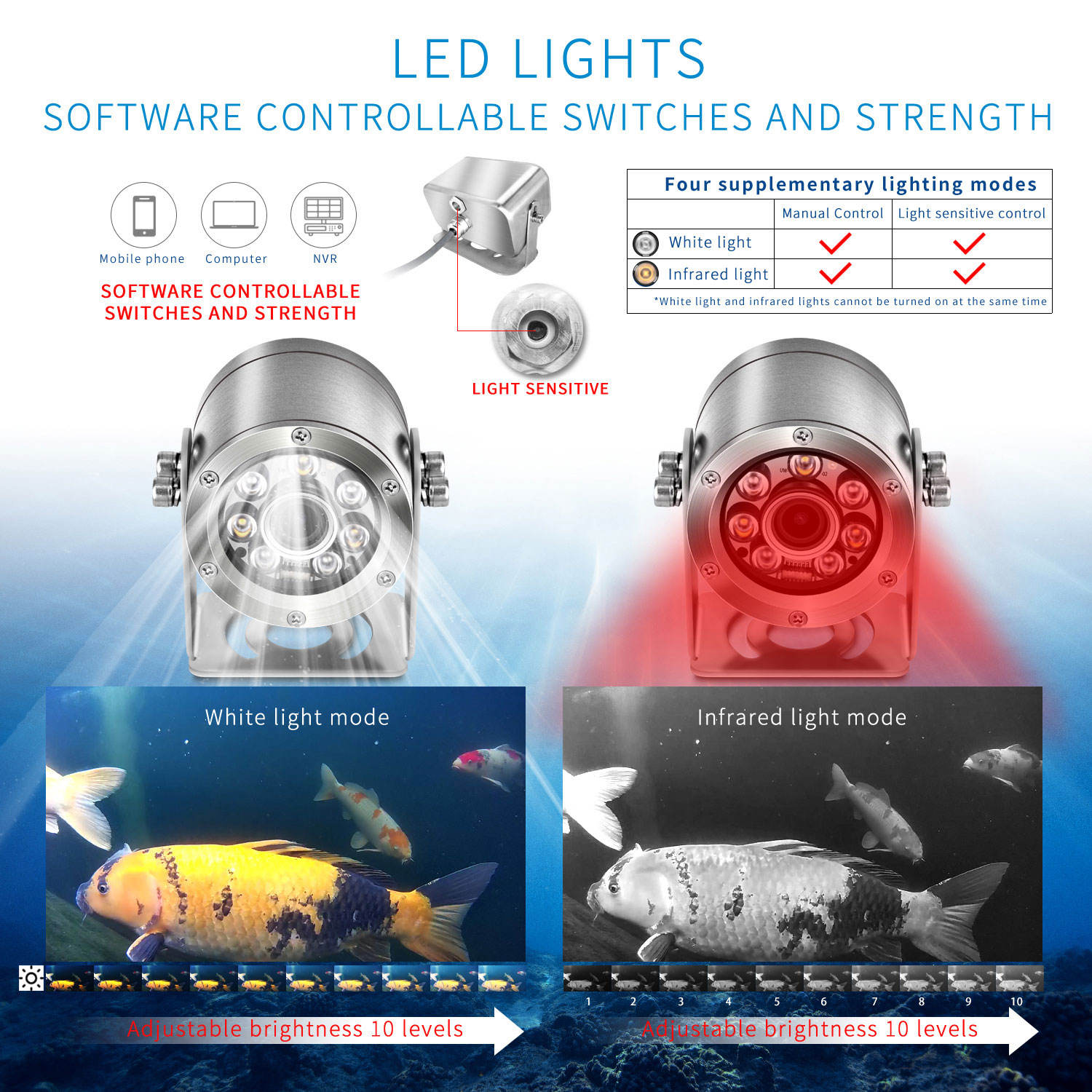

| IR LED | White light + infrared, 4pcs high power infrared lamps + 3pcs high power white light lamps; White light lumens: 2.0mm lens - 900 lumens / 2.8mm lens - 600 lumens |
| Night vision | Black and white in IR lamp mode, color in white lamp mode |
| Light Adjustment | White light and infrared light can be controlled on/off, 10 levels of light brightness adjustment.Can be controlled by VCR, computer client, APP.According to the actual application environment to switch the light, fine-tuning, to prevent overexposure |
| Line length | The default cable length is 5 meters, which can be extended to 80 meters upon request. Note: more than 80 meters need special customization |
| Power supply | 12V/2A,24V/2A, Note: Camera tail line shorter than 10 meters with 12V/2A, more than 10 meters: 24V/2A |
| POE power supply | Support (Note: Camera tail line longer than 10 meters, power supply and POE power supply can only be two choose one.) |
| Network protocol | IPv4/IPv6,802.1x,ONVIF,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development |
| Network interface | RJ45 /network port, power port |

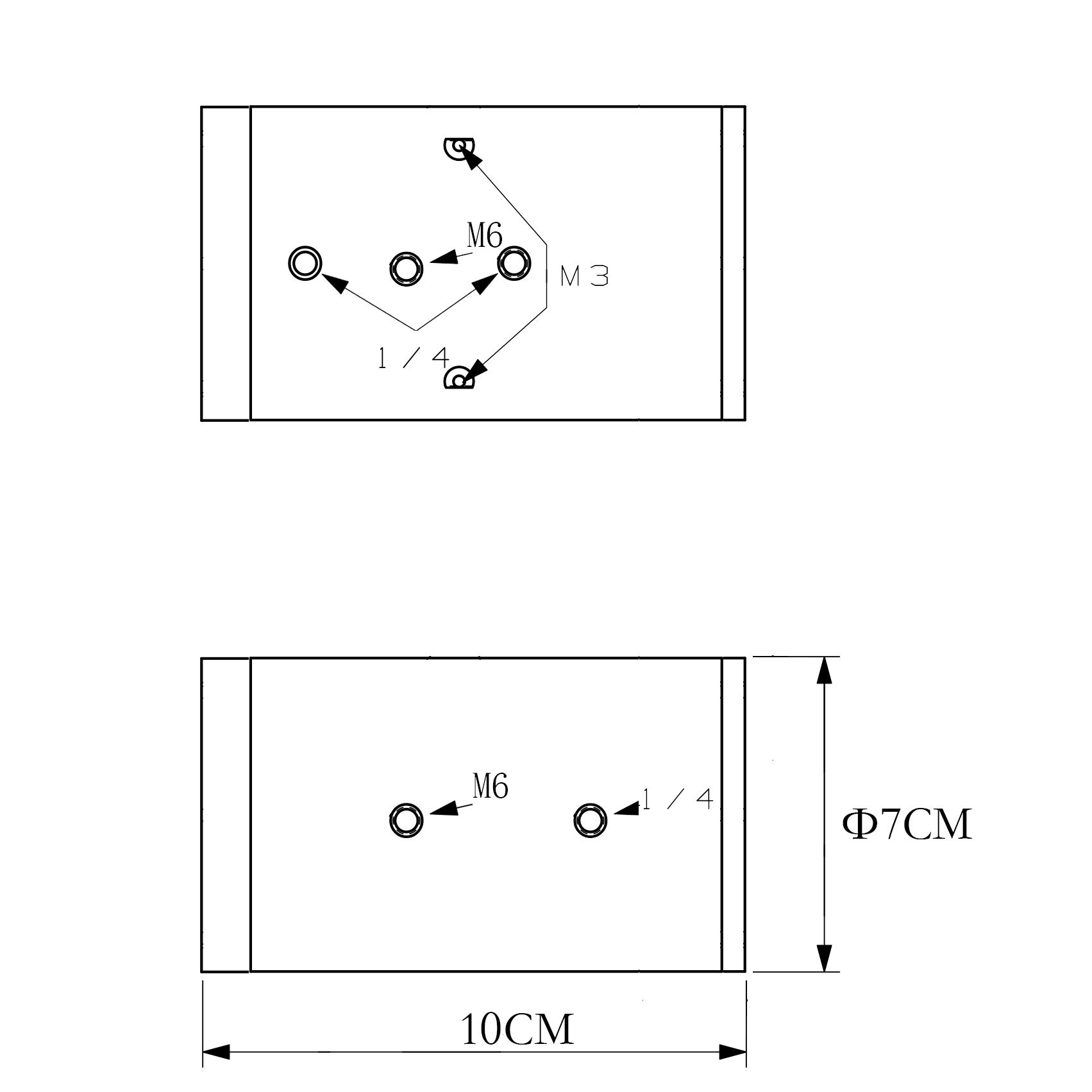

| Dimension | 70mm*100mm |
| Weight | 2Kg |
| Remote monitoring | Support |
| Client | Support, CMS / Hikvision iVMS-4200 |
| App | Support, APP: umeye pro |
| NVR | ONVIF protocol, Hikvision, Dahua, Xiongmai, etc. |
