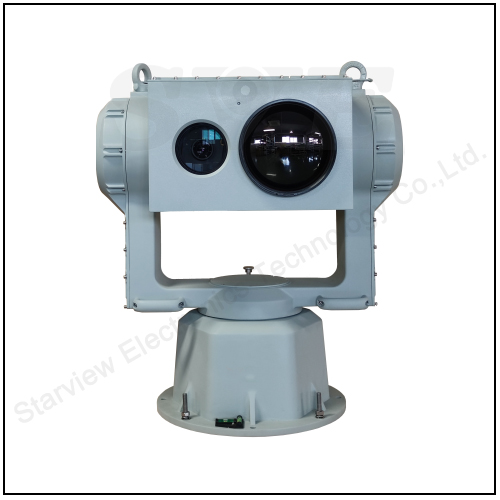

1080P Visible+ 640*215 Thermal 65X Zoom Multi-Spectral Target Recognition Tracking Servo Load IP PTZ Camera
- Ultra-long focal length variable focus, optical Defog, uncooled thermal imaging, long-range target imaging;
- Target classification detection, identification, automatic search, locking and tracking of heat sources and other targets within the full screen of the frame;
- Image coding, intelligent computing is completed simultaneously, more than 80 kinds of high-efficiency target classification and recognition, percentage judgment;
- High-efficiency detection, low-latency tracking control, target imaging to tracking algorithms can be completed in less than 80 milliseconds;
- High-speed, high-precision direct-drive servo control system, accurate geodetic coordinates (latitude and longitude height) position reporting;
- Special servo system, maximum -90-90° vertical range, flat-top design, can be loaded with a variety of equipment with the same machine, synchronous operation;
- Stand-alone support for latitude and longitude coordinate transformation, third-party data forwarding and other high-level application systems, to achieve synergy with third-party systems;
- Can be equipped with: laser ranging, BeiDou GPS, gyroscope anti-shake, angle deflection;
- Access to: third-party radar, radio detection systems, enemy identification systems, level signals or protocol alarm signals;
- Industry applications for typical targets such as 1-6KM low, small and slow targets in the air;
- To-air 1-25KM large aircraft target detection, 1-15KM aircraft landing gear target identification
Technical parameters
| Model | |
| Model No. | SVN-9612-U1V65-6 |
| Visible Image | |
| Image resolution | 1920*1080 @25fps |
| Lens focal length | F12.3-800mm (65X optical continuous zoom) |
| Image Mode | Color, black & white, optical Defog |
| Image Adjustment | White balance, exposure compensation, wide dynamic, gain control, 3D noise reduction |
| Video parameters | Brightness, Contrast, Sharpness, Saturation |
| Focus mode | Automatic / Manual |
| Daytime Performance Indicators |

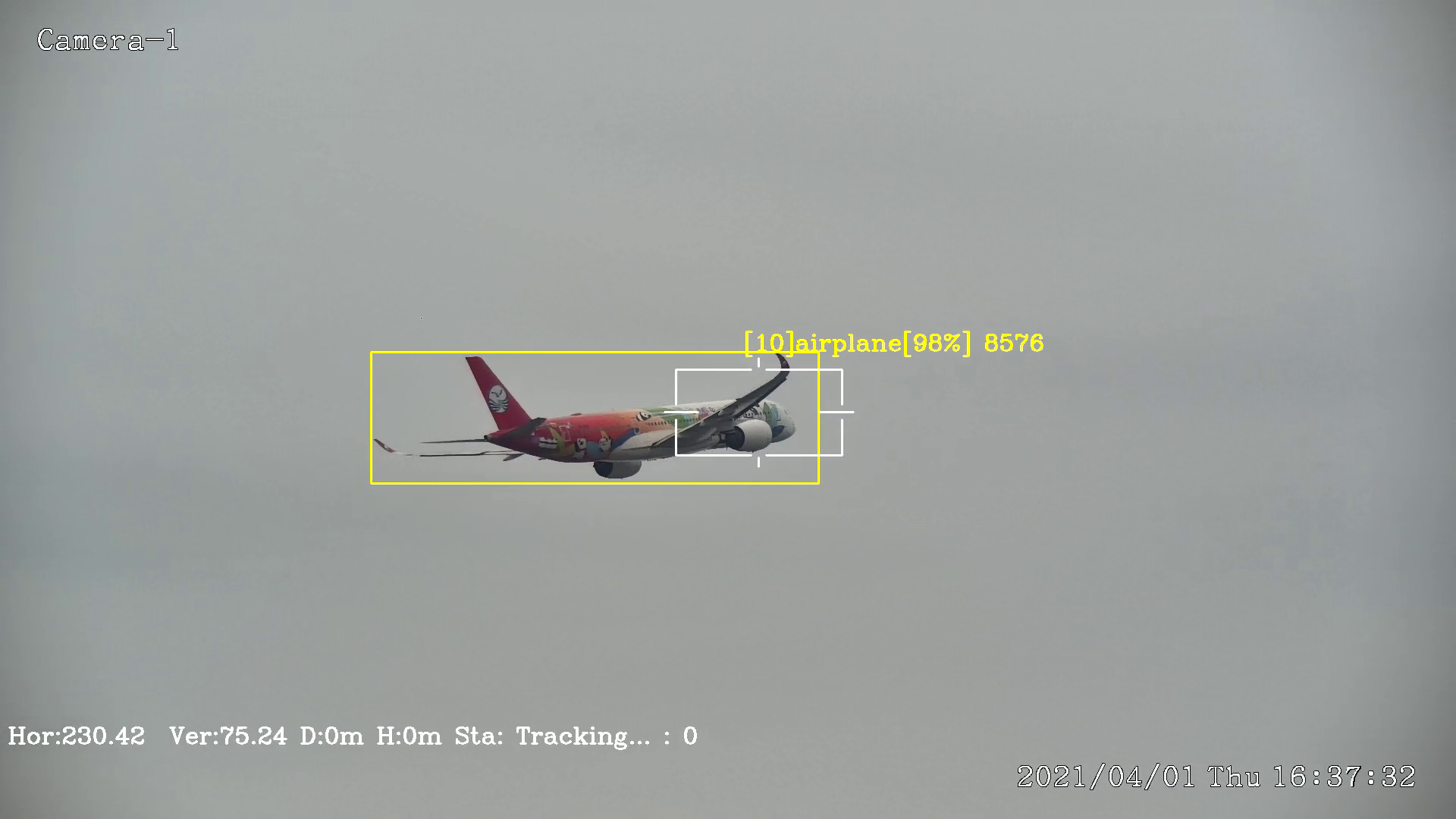

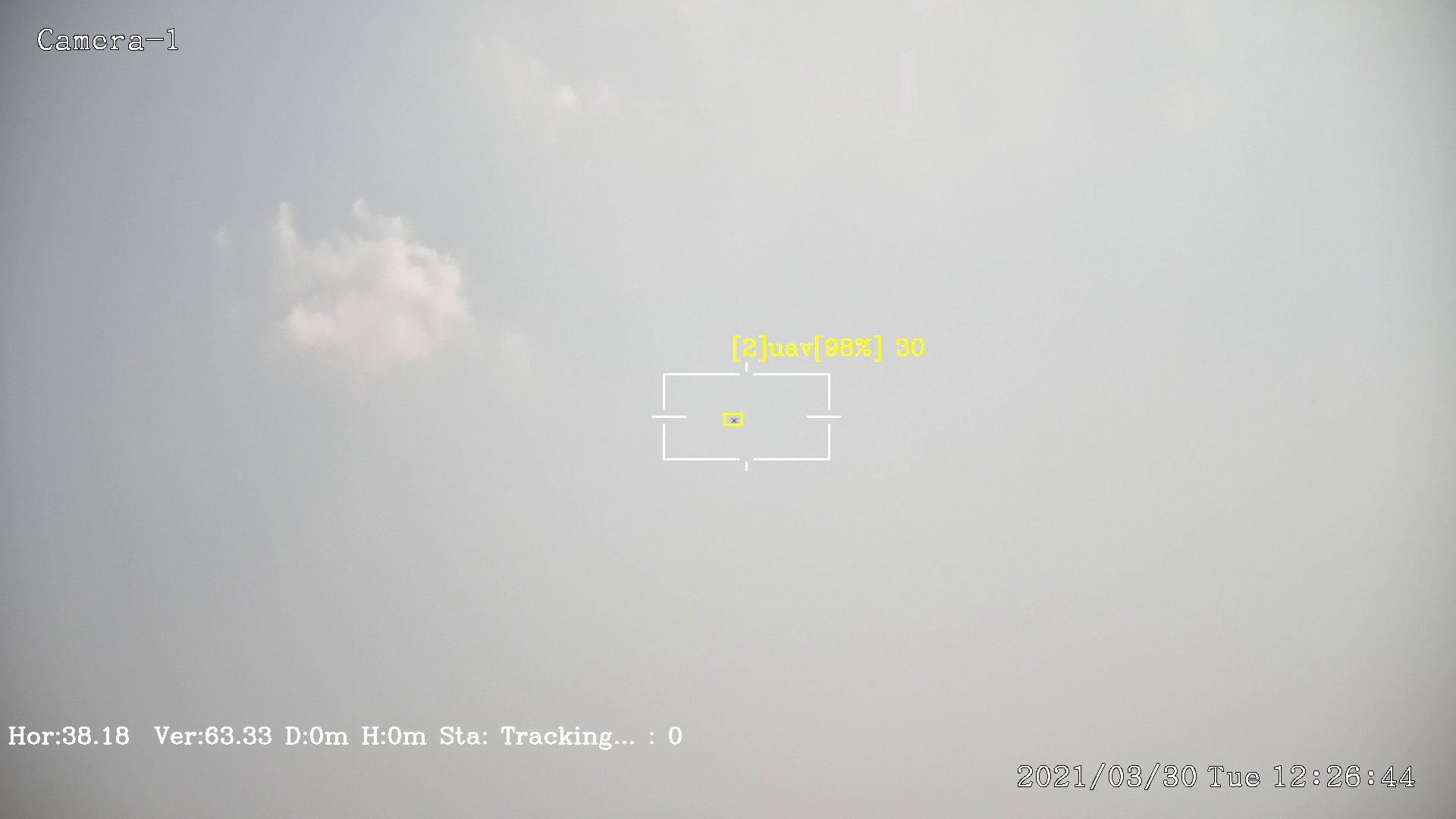

1. Reference target: civil aviation airliner Detection distance: ≥25KM; tracking distance: ≥20KM; identification distance: ≥15KM 2.Reference target: UAV 0.35m*0.35m Detection distance: ≥6KM; Tracking distance: ≥5KM; Recognition distance: ≥4.5KM (Working conditions: ambient temperature: 20ºC, visibility: ≥20Km, relative humidity: <40%) |
| Thermal image | |
| Detector type | Uncooled |
| Image resolution | 640*512; image encoding resolution: 1280*1024 |
| Lens focal length | F30-150mm |
| Image Mode | Thermal black, Thermal white, Pseudo-color |
| Video parameters | Brightness, Contrast, Sharpness, Saturation |
| Night performance indicators |
1. Reference target: civil aviation airliner Detection distance: ≥18KM; tracking distance: ≥15KM; identification distance: ≥12KM 2.Reference target: UAV 0.35m*0.35m Detection distance: ≥1.8KM; Tracking distance: ≥1.5KM; Recognition distance: ≥1.2KM (Working conditions: ambient temperature: 20ºC, visibility: ≥20Km, relative humidity: <40%) |
| Servo turntable | |
| Turntable Type | Servo-direct drive , PID feedback |
| Horizontal range, speed | 0°~360° horizontal keying speed: 0.05°~80°/s |
| Vertical range, speed | -45°~+70°(-90°~90°optional) vertical keying speed: 0.05°~60°/s |
| Angular deflection correction | Electronic compensation |
| Preset Bit Stop Accuracy | ±0.01° |
| PTZ Functions | 3D control, watchdog position, auto cruise, fancy scanning, telephoto speed limit |
| Intelligent Applications | |
| Automated searches | Full-screen motion target search, hot target tracking search |
| Bootstrap model | Can receive radar, spectrum, TDOA, ADS-B; multi-point photoelectric positioning guidance |
| Tracking mode | Specific target recognition tracking, moving target tracking, guided tracking, manual tracking |
| Target identification | Support more than 80 kinds of classification targets such as drones, people, cars, boats, etc. classification and recognition, similarity judgment, etc. |
| Early warning linkage | Alarm protocol upload, capture, preset position linkage |
| Image and system | |
| video compression format | H.256 / H.264 / MJPEG (image capture only) |
| Video protocol | ONVIF, GB T-28181, RTSP |
| Network protocol | IPv4, TCP/IP, UDP, etc. |
| Network function | System remote upgrade, virtual dual IP address |
| Diagnostic monitoring | IP conflict detection, heartbeat detection, logging |
| General | |
| Interfaces | Standard Circular Connector interface (including: DC24V power supply, 10M/100M adaptive network interface) |
| Protection class | IP66 |
| Operating Temperature/Humidity | -35ºC~+60ºC, humidity <90% |
| Power supply & power consumption |
Standard special power supply AC220V / DC48V; ≤240W (max); Optional load equipment power consumption is calculated separately |

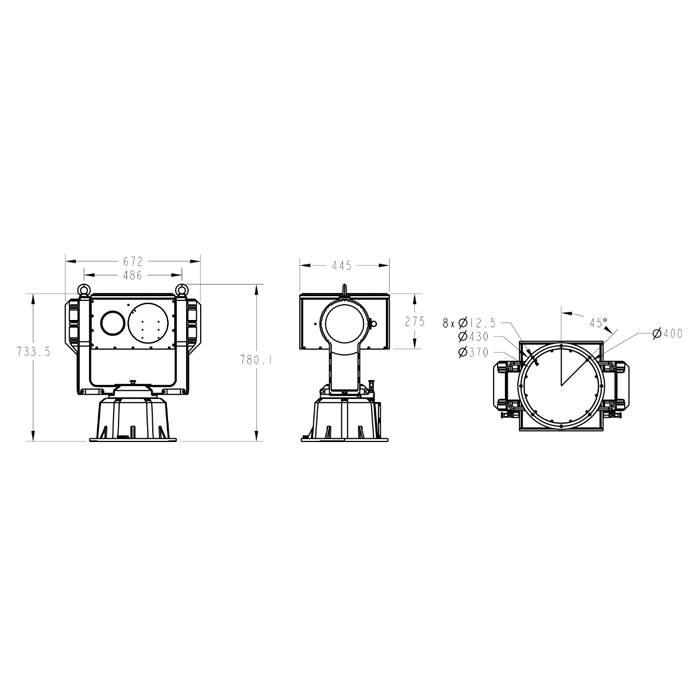

| Size | 672mm(W) ×445(L)×780mm(H) |
| Weight (net) | ≤80Kg |
