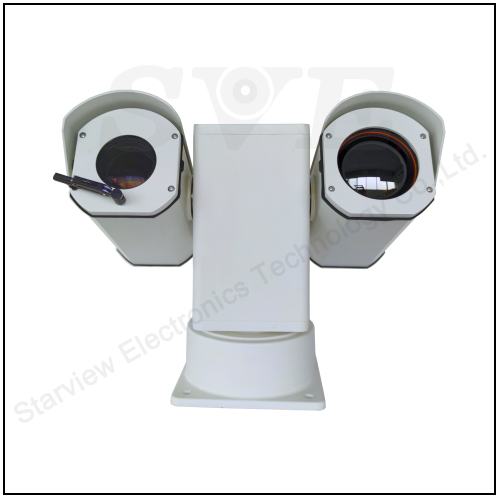

1080P Visible+ 640*512 Thermal 65X Zoom Multi-Spectral Target Recognition Tracking Servo Load IP PTZ Camera
Key Features
- Visible + thermal imaging combination, multi-channel imaging, data fusion;
- Automatic zoom, focus, optical Defog, servo tracking integrated design;
- Edge computing, more than 80 types of target classification and recognition algorithms for people, cars, airplanes, etc. are available, specific target detection and recognition;
- Integration of heat source detection, tracking, early warning and alarm, linked to visible image zoom close-up and capture;
- Horizontal: 0-360° infinite position, Vertical: -90--+90°;
- Accurate azimuth and field of view return, temperature and humidity, angle deflection multiple data fusion;
- Low power consumption, the whole machine steady state power consumption ≤ 30W, the weight of the machine ≤ 8KG;
- Access: radar guidance, spectrum positioning guidance, GPS positioning, environmental data, power management;
- IP66 protection, optional shock absorbing design;

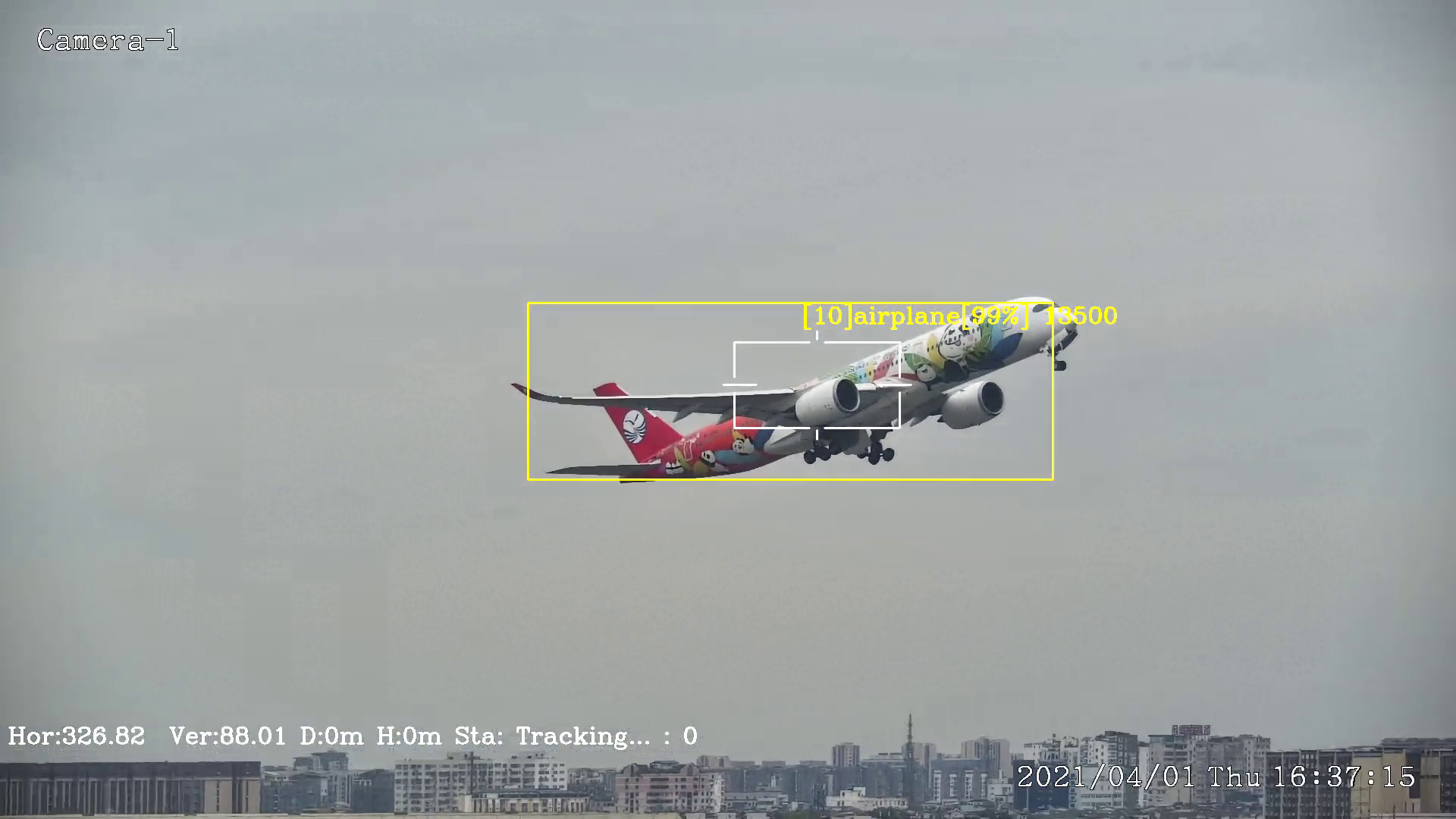

- To-air 1-2KM low-small-slow target detection, tracking and identification, intelligent early warning;
- To-air 1-12KM large aircraft target detection, tracking, 1-3KM aircraft landing gear target identification
Technical parameters
| Model | |
| Model No. | SVN-9512-U1V48-D75 |
| Visible Image | |
| Image resolution | 1920*1080 @25fps/30fps |
| Lens focal length | F6.5-312mm (48X optical continuous zoom) |
| Image Mode | Color, black & white, optical Defog |
| Image Adjustment | White balance, exposure compensation, wide dynamic, gain control, 3D noise reduction |
| Video parameters | Brightness, Contrast, Sharpness, Saturation |
| Focus mode | Automatic / Manual |
| Daytime Performance Indicators |
1. Reference target: civil aviation airliner Detection distance: ≥12KM; tracking distance: ≥8KM; identification distance: ≥6KM 2.Reference target: UAV 0.35m*0.35m Detection distance: ≥2.5KM; Tracking distance: ≥2KM; Recognition distance: ≥1.5KM (Working conditions: ambient temperature: 20ºC, visibility: ≥20Km, relative humidity: <40%) |
| Thermal image | |
| Detector type | Uncooled |
| Image resolution | 640*512; image encoding resolution: 1280*1024 |
| Lens focal length | Fixed Focus 75mm |
| Image Mode | Thermal black, Thermal white, Pseudo-color |
| Video parameters | Brightness, Contrast, Sharpness, Saturation |
| Night performance indicators |
1. Reference target: civil aviation airliner Detection distance: ≥5KM; tracking distance: ≥3KM; identification distance: ≥2KM 2.Reference target: UAV 0.35m*0.35m Detection distance: ≥1.1KM; Tracking distance: ≥0.8KM; Recognition distance: ≥0.6KM (Working conditions: ambient temperature: 20ºC, visibility: ≥20Km, relative humidity: <40%) |
| Servo turntable | |
| Turntable Type | Stepper motor, PID feedback |
| Horizontal range, speed | 0°~360° horizontal keying speed: 0.1°~80°/s |
| Vertical range, speed | -90°~90° vertical keying speed: 0.1°~60°/s |
| Angular deflection correction | Electronic compensation |
| Preset Bit Stop Accuracy | ±0.01° |
| PTZ Functions | 3D control, watchdog position, auto cruise, fancy scanning, telephoto speed limit |
| Intelligent Applications | |
| Automated searches | Full-screen motion target search, hot target tracking search |
| Bootstrap model | Can receive radar, spectrum, TDOA, ADS-B; multi-point photoelectric positioning guidance |
| Tracking mode | Specific target recognition tracking, moving target tracking, guided tracking, manual tracking |
| Target identification | Support more than 80 kinds of classification targets such as drones, people, cars, boats, etc. classification and recognition, similarity judgment, etc. |
| Early warning linkage | Alarm protocol upload, capture, preset position linkage |
| Image and system | |
| video compression format | H.256 / H.264 / MJPEG (image capture only) |
| Video protocol | ONVIF, GB T-28181, RTSP |
| Network protocol | IPv4, TCP/IP, UDP, etc. |
| Network function | System remote upgrade, virtual dual IP address |
| Diagnostic monitoring | IP conflict detection, heartbeat detection, logging |
| General | |
| Interfaces | Standard Circular Connector interface (including: DC24V power supply, 10M/100M adaptive network interface) |
| Protection class | IP66 |
| Operating Temperature/Humidity | 20ºC~+60ºC, humidity <90% Optional: -40ºC~+60ºC |
| Power supply & power consumption | AC220V ±15% (photoelectric system) normal operation ≤30W, start peak ≤50W |

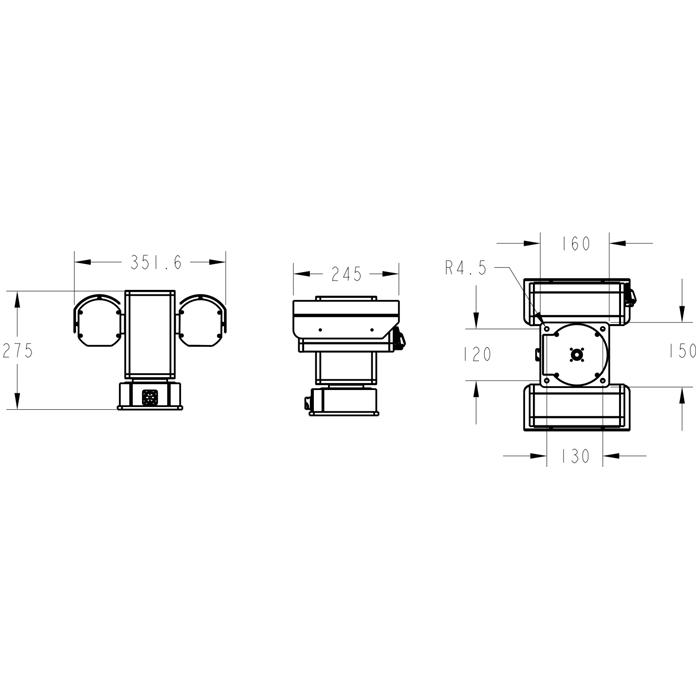

| Size | 352mm(W) ×245(L)×275mm(H) |
| Weight (net) | ≤8Kg |
