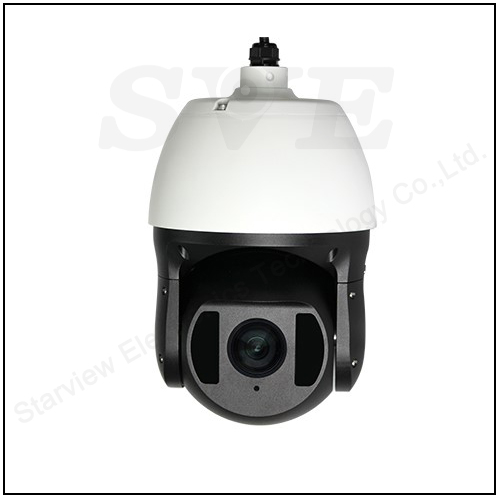

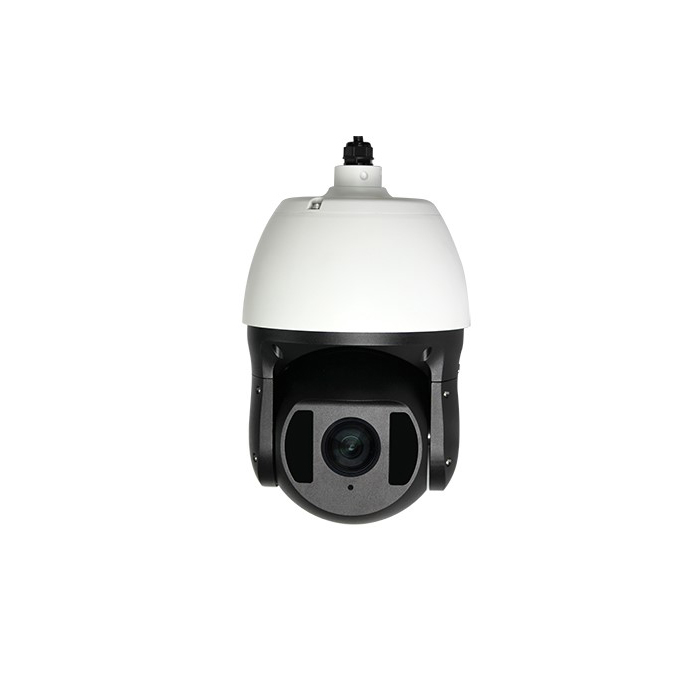

4MP 40X Optical Zoom PTZ IP 360 Continuous Rotation Security IP PTZ Camera
Key Features
- 4MP(2688*1520) 1/1.8 " Progressive Scan CMOS.
- 40X Optical Zoom, 6.6-264mm, Aperture value: F1.61- F5.19.
- Pan range: 360° endless, tilt range: -15°~93°.
- H.265/H.264 video compression algorithm, ultra-low bitrate.
- Supports power failure state memory function
- High-strength alloy aluminum monolithic die-casting shell, internal all-metal structure
- Super heat dissipation design, reduce the temperature of the inner cavity of the ball machine, to prevent the ball machine cover fogging.
- Waterproof: IP66, IR LED distance: 180 Meters.
Technical parameters
| Model | SVN-40HS884 |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min.Illumination | Color:0.0005 Lux @ (F1.6, AGC ON); B/W:0.0001Lux @ (F1.6, AGC ON) |
| Shutter | 1/25s to 1/100,000s; Support delayed shutter |
| Aperture | DC Drive |
| Day/Night Switch | ICR cut filter |
| Lens | |
| Focal Length | 6.6~264mm, 40x Optical Zoom |
| Aperture Range | F1.61-F5.19 |
| Horizontal Field of View | 59.8-2.95° (wide-tele) |
| Minimum Working Distance | 100mm-1500mm (wide-tele) |
| Zoom Speed | Approximately 4s(optical, wide-tele) |
| Compression Standard | |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| H.264 Type | BaseLine Profile / Main Profile / High Profile |
| Video Bitrate | 32 Kbps~16Mbps |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio Bitrate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Image(Maximum Resolution: 2688*1520) | |
| Main Stream | 50Hz: 25fps (2688*1520, 1920*1080, 1280*960, 1280*720); |
| 60Hz: 30fps (2688*1520, 1920*1080, 1280*960, 1280*720). | |
| Sub Stream | 50Hz: 25fps (1920x1080 ,1280x720 ,704x576 ,640x480 ,352x288) |
| 60Hz: 30fps (1920x1080 ,1280x720 ,704x480 ,640x480 ,352x288) | |
| Third Stream | 50Hz: 25fps (1280x720 ,704x576 ,640x480 ,352x240) |
| 60Hz: 30fps (1280x720 ,704x480 ,640x480 ,352x240) | |
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browse |
| BLC | Support |
| Exposure Mode | AE / Aperture Priority / Shutter Priority / Manual Exposure |
| Focus Mode | Auto Focus / One Focus / Manual Focus / Semi-Auto Focus |
| Area Exposure / Focus | Support |
| Defog | Support |
| Stability | EIS |
| Day/Night Switch | Automatic, manual, timing, alarm trigger |
| 3D Noise Reduction | Support |
| Picture Overlay Switch | Support BMP 24-bit image overlay, customizable area |
| Region of Interest | Support three streams and four fixed areas |
| Network | |
| Storage | Support micro SD card (256g) offline local storage, NAS (NFS, SMB / CIFS support) |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) |
| Pan&Tilt | |
| Pan Range | 360° endless |
| Pan Speed | 0.05°~300° /s |
| Tilt Range | -15°~93° |
| Tilt Speed | 0.05°~200°/s |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 mins |
| Power loss recovery | Support |
| IR Laser | |
| Distance | Up to 180m |
| IR intensity | Automatically adjusted, depending on the zoom ratio |
| General | |
| Power | AC 24V, 50W(Max) |
| Working temperature | -40ºC -60ºC |
| Humidity | 90% or less |
| Protection level | IP66, TVS 4000V Lightning protection, surge protection |
| Mount option | Wall Mounting, Ceiling Mounting |

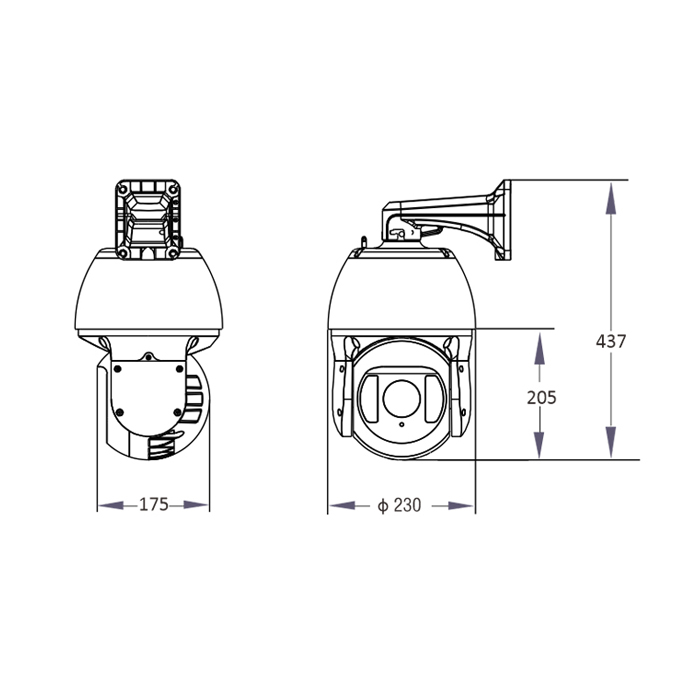

| Dimension | Φ230×437(mm) |
| Weight | 6.5kg |
| Protection level | IP66 |
