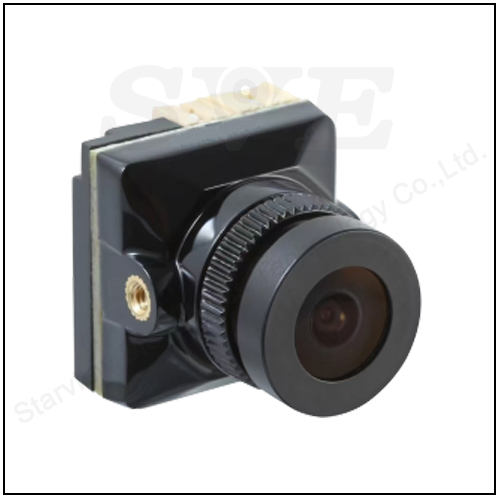

1500tvl 1.8mm Lens Black Light Night Vision Fpv Camera
* PAL/NTSC Video Output;
* Adoption of micro-light fill light night vision;
* Colorful HD visual experience in low-light environments;
* Fly in any day/night environment.
* Freestyle Live Transfer FPV Camera
* Small size, low power consumption, can be integrated into
various types of equipment.
| Model | SV-B19Pro |
| Image Sensor | 1/2.7" Black light sensor |
| TV line | TV line |
| Len | 1.8mm |
| Standard | PAL/NTSC (OSD Internal adjustable) |
| SNR | > 38Db |
| Electronic shutter | PAL: 1/50-100.000, NTSC:1/60-100,000 |
| Video output | CVBS |
| FOV | 165° |
| low illumination | 0.00001Lux |
| DNR | 3DNR |
| Day & Night Mode | Color /AR Black Light/Auto |
| input voltage | DC 5V-20V |
| weights | 6.0g |
| Operating temperature | -20°~ +70° |
| Dimensions | 19mm*19mm |
| OSD | |
| Graphics | 16:9 |
| Exposure | Electronic shutter/automatic gain control/Brightness |
| White balance | Automatic tracking white balance |
| Day/Night mode | Internal automatic/color mode/black and white mode |
| Video Settings | Contrast/sharpness/saturation/digital noise reduction |
| Language | Chinese/English/German/Italian/Russian/Japanese |
| Restore Factory Settings | OK |
| Save to exit | OK |
Interface definition

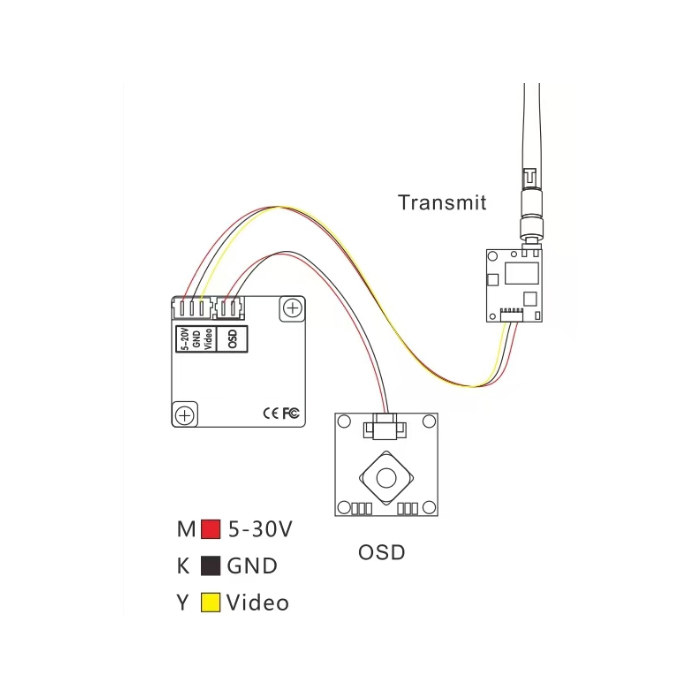

Interface Board Schematic
Pin Definitions
| 1 | POWER | DC 5~20V power supply |
| 2 | GND | Ground |
| 3 | CVBS | CVBS video signal |
| 4 | OSD | Menu board positive + |
| 5 | OSD | Menu board negative - |

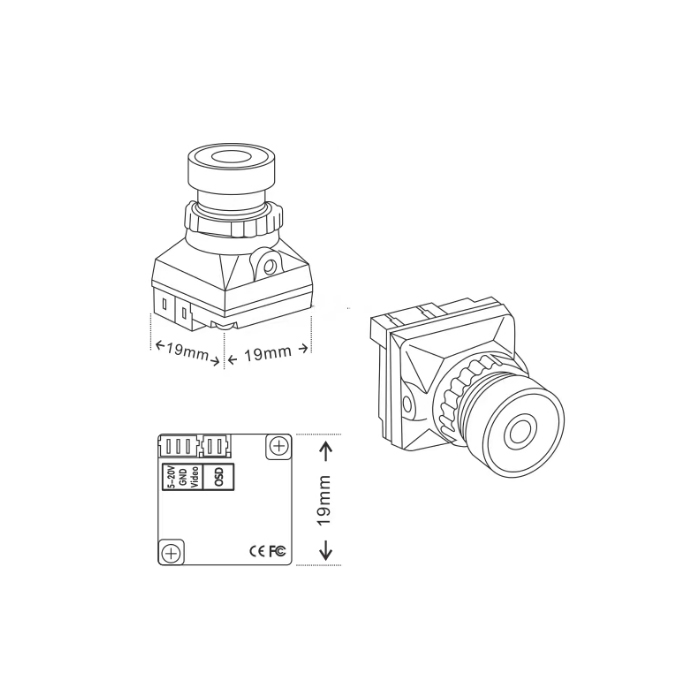

Interface definition(19mm*19mm*24mm)
