1800tvl 2.1mm Lens Ar Shimmer Fill Light Fpv Camera
* PAL/NTSC Video Output;
* Adopts AR Shimmering Complementary Light Technology;
* Colorful HD visual experience in low-light environments
* Daytime: Wide Dynamic No blinding in bright light / backlighting;
*. Night: Starlight-rated night vision camera.
* Small size, low power consumption, can be integrated into various types of equipment.
| Model | SV-BAT1 |
| Image Sensor | 1/2.7" SONY COMS Sensor |
| TV line | 1800TVL |
| Lens | 2.1mm |
| Standard | PAL/NTSC (OSD Internal adjustable) |
| SNR | > 60Db (AGC OFF) |
| Electronic shutter | PAL: 1/50-100.000, NTSC:1/60-100,000 |
| Video output | CVBS/AHD |
| BLC | YES |
| low illumination | 0.00001Lux |
| WDR | D-WDR(super) |
| DNR | 3DNR |
| Day & Night Mode | Color /AI Black Light/Auto |
| input voltage | DC 5V-20V |
| weights | 6.0g |
| Operating temperature | -20°~ +70° |

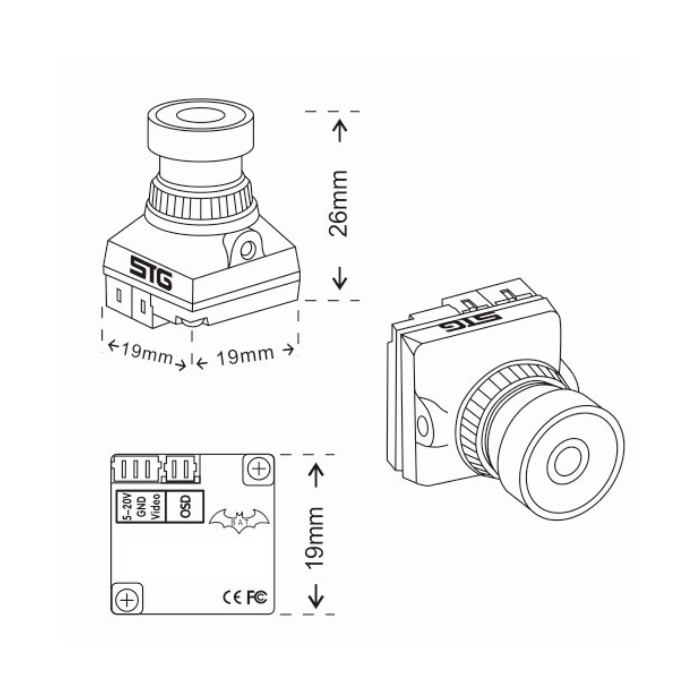

| Dimensions | 19mm*19mm*22mm |
| OSD | |
| Graphics | 4:3/16:9 |
| Exposure | Electronic Shutter/Auto Gain Control/Brightness/Digital Wide Dynamic |
| White balance | Automatic tracking white balance |
| Day/Night mode | Internal automatic/color mode/black and white mode |
| Video Settings | Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamic |
| Language | Chinese/English/German/Italian/Russian |
| Restore Factory Settings | OK |
| Save to exit | OK |
Interface definition

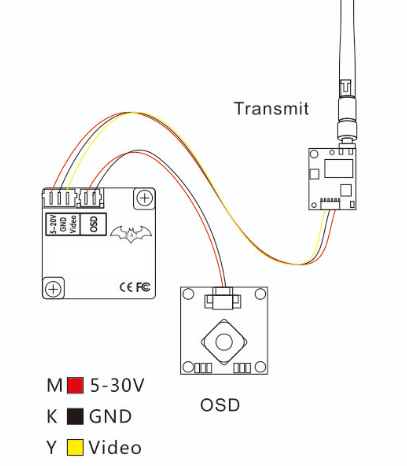

Interface Board Schematic
Pin Definitions
Interface definition
| 1 | POWER | DC 5~20V power supply |
| 2 | GND | Ground |
| 3 | CVBS | CVBS video signal |
| 4 | OSD | Menu board positive + |
| 5 | OSD | Menu board negative - |
Interface definition
