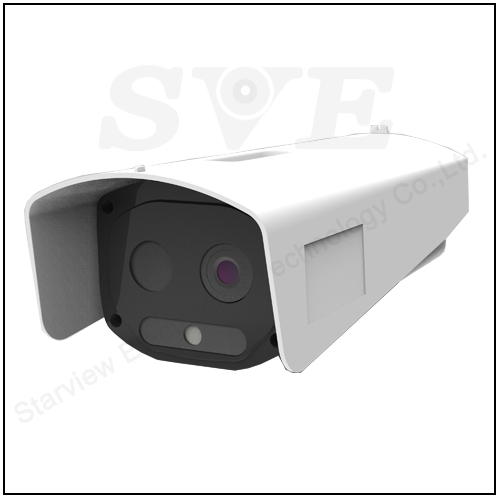

640*512 Thermal Imager 7mm Lens 4MP 6mm Focal Length Visible Camera
- 640*512 7mm lens thermal camera + 2592*1536 6mm fixed lens Visible Camera
- Fire point detection, high temperature detection; area intrusion, boundary crossing, entry/exit zone detection.
- Support 1 line temperature measurement, 9 frame temperature measurement, 10 point temperature measurement, 2 irregular area, 2 round area temperature measurement, Full-screen maximum and minimum temperature positioning.
- Temperature measurement range: -20ºC-150ºC; extendable to 550ºC; Temperature measurement accuracy: ±2ºC or ±2% of the reading (take the larger value).
- Support 2-channel alarm input, 2-channel alarm output.
Applied to the electric power industry, chemical disposal centers, combustible warehouses, petrochemical plants, coal mines and other industrial sites, the need for real-time monitoring of the temperature of key locations, in order to prevent the occurrence of hazardous events scenarios.
Specification
| Model | SVN-DC13P640 |
| Thermal imager Camera | |
| Detector type | Vanadium Oxide Uncooled Focal Plane Detector |
| Image resolution | 640*512 |
| Pixel size | 17μm |
| Detector type | Vanadium Oxide Uncooled Focal Plane Detector |
| Image resolution | 640*512 |
| Pixel size | 17μm |
| Detector NETD | <=40mK@25ºC |
| Response band | 8~14μm |
| Package Type | wafer-level |
| Lens Type | Fixed, F1.0 |
| Focus Control | 7 mm |
| Visible Camera | |
| Image Sensor | 1/2.8"CMOS |
| Resolution | 2592×1536 |
| Minimum illumination | 0. 002Lux/F1.5 (Color), 0.0002Lux/F1.5(B/W) |
| Infrared fill light | 30m |
| Digital zoom | Support |
| Automatic Gain Control | ICR Infrared Filter Type |
| Focal Length | 6mm |
| Image processing | |
| Digital video | H.264 |
| Main stream image | Visible Camera: 25fps (2592×1536,1920×1080,1280×720) 30fps (2592×1536,1920×1080,1280×720) Thermal imaging Camera: 25fps (720×576) |
| Boot time | 10s |
| Image processing | Non-uniformity Correction, Intelligent Gain Control, Digital Detail Blending Enhancement, 3D Noise Reduction |
| Palette | Supports 10 color palettes including black hot, white hot, iron red, rainbow, etc. /Customizable |
| Image mirroring | Left, right, up, down, center |
| Functionality | |
| Abnormal temperature alarm | Support temperature abnormality alarm |
| Temperature measurement function | Full-screen maximum and minimum temperature positioning |
| Supports 1 line, 9 frames, 10 points, 2 irregular areas, 2 elliptical areas for temperature measurement | |
| Temperature range: -20ºC~150ºC (extendable to 550ºC) @ -10~50ºC. | |
| Temperature measurement accuracy: ±2ºC or ±2% (whichever is greater) no black body | |
| Supports reflected temperature, atmospheric temperature setting, target range correction, and emissivity correction. | |
| Alarms | IP conflict, linkage alarm function |
| Network | |
| Ethernet Type | 100Mbps |
| Network protocol | IPV4, HTTP, FTP, RTSP, RTCP, RTP, TCP, UDP. |
| Concurrent access | 20 CH |
| Safe mode | Authorized Users and Passwords |
| Access standard | Private SDK, ONVIF, GB/T28181 |
| Data interface | |
| Compressed data | H264 video, standard JPEG images |
| System integration | |
| Communications interface | RJ45, Network Transmission |
| 1CH RS485 | |
| PTZ control | Pelco-D protocol, RS-485 interface |
| Alarm Input/Output | 2 in/2 out |
| General | |
| Power supply | DC12 |
| Power consumption | 2.2W |
| Product Dimension | 86.7mm*109.5mm*254.7mm |
| Weight (without accessories) | 958g (without stand) |
| Waterproof grade | IP66 |
| Operating temperature/°C | -30ºC~+60ºC |
| Storage temperature/°C | -45ºC~+75ºC |
| Humidity/RH | ≤95% |

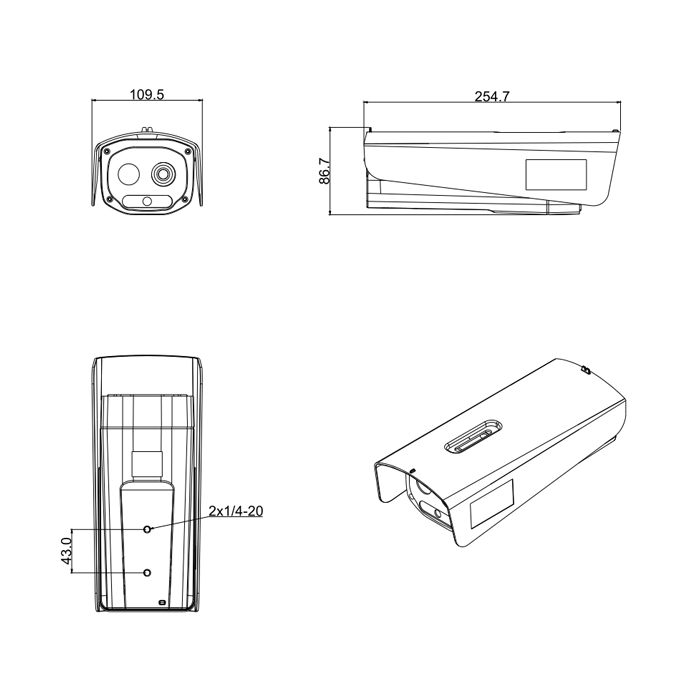

Structural dimensions(mm)
