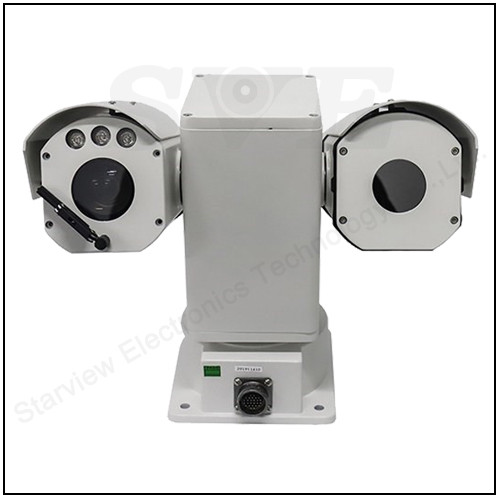

25X Optical Zoom 1080P +640*512 5mm Thermal IP PTZ Camera
Product Description
- 640*512 Thermal 5mm Camera + 1080P 25x HD Starlight Camera, Dual Optical Network PTZ Camera.
- 1/2.8" Image CMOS, 1920(H) x 1080(V), 25x optical zoom, 16x digital zoom.
- Thermal imaging detector 640(H) × 512(V), 5mm IR thermal imaging lens.
- 360° horizontal rotation, ±90° vertical.
- Preset position accuracy to 0.1°, fastest speed 90° per sec.
- Built-in 3 IR LED, up to 50 M (optional LED white light)
- The whole machine adopts super strong aluminum alloy shell, excellent heat dissipation performance, IP67 protection, anti-rain and anti-dust.
Suitable for forest fire prevention, border and sea defense, environmental protection, petrochemical, electric power and other industries and medium and long-distance area inspection..
Specification
| Model | |
| Model No. | SVN-SH05-640-5mm-25X |
| Type | 640*512 Thermal 5mm Lens Camera + 1080P 25x Zoom PTZ Camera |
| Thermal imaging camera | |
| Detector type | Uncooled infrared focal plane sensor |
| Material type | vanadium oxide |
| Original pixel | 640(H) ×512(V) |
| Video resolution | 1280*1080 |
| Pixel pitch | 12μm |
| Thermal Sensitivity (NETD) | 8~14μm |
| Frame rate output | 25/30Hz |
| Thermal imaging Lens | |
| Lens Type | Fixed focal length |
| Focal length | 5 mm |
| F-value | F1.0 |
| FOV | 81.5° × 6.1° |
| Detection distance (Human: 1.8x0.5m) | Detection: 198m, Recognize: 59m |
| Detection distance (Vehicle: 4.0x1.5m) | Detection: 510m, Recognize 170m |
| Fire point Detection distance (1.0mx1.0m) | Detection: 417m |
| Digital video | H.264 |
| Master stream image | 1280*1024, 1280*720, 640*480, 25Hz |
| Boot time | 10s |
| Image processing | Non-uniformity correction, intelligent gain control, digital detail blending enhancement, 3D noise reduction |
| palette | Supports 15 color palettes including black hot, white hot, iron red, rainbow, etc./Customizable |
| Thermal imaging for temperature measurement | |
| Abnormal temperature alarm | support |
| Full screen high Temperature positioning | support |
| Full Screen Minimum Temperature Positioning | support |
| Area temperature measurement | Supports 1 line, 7 boxes, and 10 points temperature measurement mode |
| Temperature range | Temperature range: -20~150ºC, 0~550ºC expansion |
| Temperature measurement accuracy | Temperature measurement accuracy: ±2ºC or ±2% (the larger value) without black body |
| Temperature measuring function | Support reflection temperature, atmospheric temperature setting, target distance correction, support emissivity correction |
| Visible Camera | |
| Image sensors | 1/2.8 "Progressive scan CMOS sensor |
| Total pixel | 2MP |
| Lens focal length | 4.8~120mm |
| Optical zoom | 25x |
| HOV | 57.6 ~ 2.5° |
| Aperture | F1.6 ~ F3.5 |
| Close-up range | 0.1m ~ 1.5m (near focus ~ far focus) |
| Zoom speed | Approx. 5.5s (optical, wide Angle ~ field of view) |
| Video compression mode | H.265/H.264/H.264H/MJPEG |
| Resolution | Main stream: H264/H265 1920*1080@25fps |
| Video compression bit rate | 32kbps~16384kbps |
| Video frame rate | 25fps |
| Storage function | Supports TF card storage with a maximum capacity of 1TB |
| Network protocol | Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP |
| Intelligent alarm | Motion detection, occlusion alarm, storage full |
| Behavior analysis | Fence crossing, trip wire intrusion, area intrusion, items left behind, fast movement, parking detection, people gathering, items moving, wandering detection |
| Firmware upgrade | Support |
| Minimum illumination | Color: 0.005Lux/F1.5; Black and white: 0.0005Lux/F1.5 |
| shutter | 1/3 to 1/30000 second |
| Digital noise reduction | 2D / 3D |
| Image setting | Brightness, contrast, saturation, sharpness, gamma |
| Image inversion | Support |
| Exposure mode | Auto/manual/aperture priority/shutter priority |
| Exposure compensation | Support |
| Wide dynamic | Support |
| Backlight compensation | Support |
| Strong light suppression | Support |
| Signal-to-noise ratio | ≥ 55dB (AGC Off,Weight ON) |
| Automatic gain control | Support |
| White balance | Automatic/manual/tracking/Outdoor/Indoor/outdoor automatic/sodium lamp automatic/sodium lamp |
| Day-night switching mode | ICR infrared filter type |
| Digital Zoom | 16x |
| Focusing mode | Semi-automatic/automatic/manual/one-time autofocus |
| Electronic anti-shake | On/off |
| Communication interface | TTL level (3.3V), compatible with SONY VISCA protocol |
| Video output | Network |
| Baud rate | 9600 |
| Pan/Tilt | |
| Rotation angle | Horizontal: 0° ~ 360° continuous rotation, Vertical: +90° ~ -90 |
| Rotation speed | Horizontal: 0.01° ~60° /s; Vertical: 0.01° ~60° /s |
| wiper function | optional |
| Preset Accuracy | ±0.1° |
| Scan | 8 groups (each group can add 32 preset points) |
| cruise | 12 groups (each group can add 32 preset points) |
| trajectory | 6 paths (each path takes longer than 5 minutes) |
| guardian position | Support |
| 3D positioning | Support |
| Power Failure Memory | Support |
| angular return | Horizontal and tilt angle support is returned at the same time. |
| Scan | Horizontal: 0° ~ 360° continuous rotation, Vertical: +90° ~ -90 |
| Video and Audio | |
| Main stream | 60fps(2688*1520) |
| sub stream | 60fps(1280X720) |
| Stream control | CBR/VBR |
| Stream range | Thermal imaging, main stream 100Kbps~6MKbps, |
| Audio compression standard | G711: 8kbps, RAW_PCM:16kbps |
| Video format | H.264/H.265 |
| Functional characteristics | |
| Intelligent alarm | Motion detection alarm, I/O alarm, disk alarm, temperature warning, intelligent analysis alarm, network anomaly alarm |

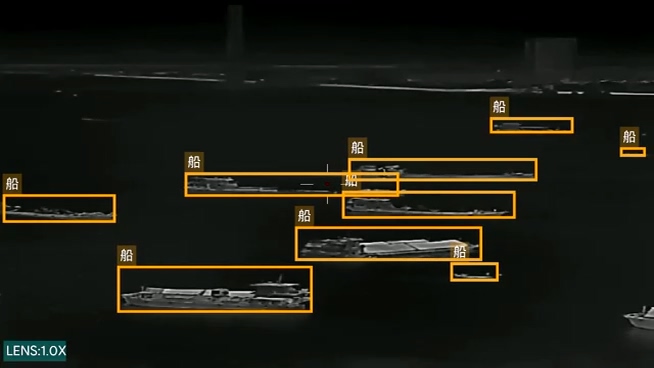

| Intelligent detection | Supports humanoid and vehicle detection |
| Intelligent analysis | Trip wire, fence crossing, area intrusion, item left behind, fast movement, parking detection, people gathering, item moving, wandering detection |
| Privacy masking | nonsupport |
| Character display | Temperature, time, date, channel name, Custom |
| Network service | |
| Network protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, GB28181, Onvif |
| Concurrent user | 10 CH |
| user rights | Maximum 20 |
| Support SDK development | Linux C /windows |
| Device autodiscovery | Support |
| Front End Access Protocol | ONVIF |
| web language | Detection support only, shipments are not fully supported |
| interfaces | |
| Network | 1 RJ45 10/100Base-T adaptive Ethernet interface |
| Audio interface | 1 channel Intercom capable |
| Alarm Interface | Supports customization (conventional 1 input and 1 output) |
| Analog Video | unsupported |
| PTZ control | RS485 |
| Reset | Camera built-in |
| SD card slot | Support up to 1Tb |
| General | |
| Power supply | DC9-36V (AC24V optional) |
| Power wastage | ≤30W |
| Work environment | Temperature -40°C~60°C, Humidity 0~90% RH |
| Shell material | aluminum |
| Protection class | IP67 |
| Installation method | vertical installation |
| Dimension | 353 x 220 x 278.5mm (L x W x H) (side outlet) 353 x 220 x 296mm (L x W x H) (bottom outlet) |
| weights | 7.5KG |

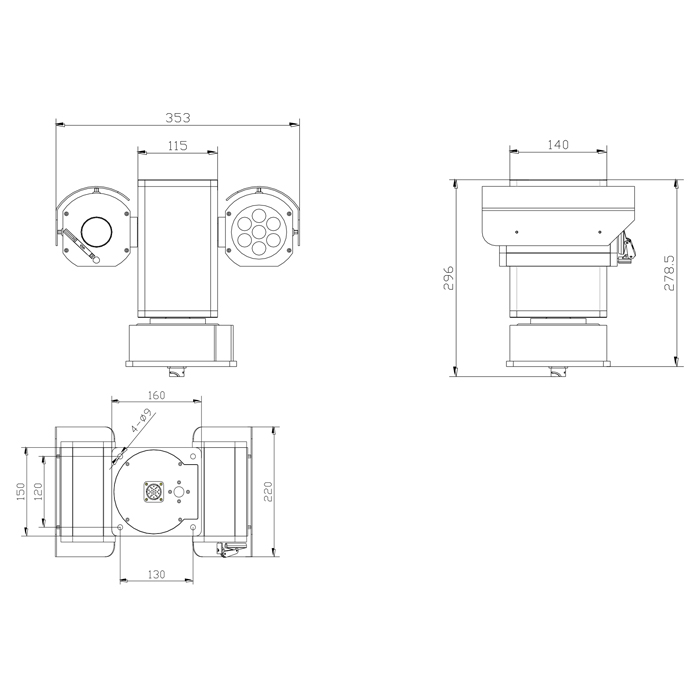

Structural dimensions(mm)
