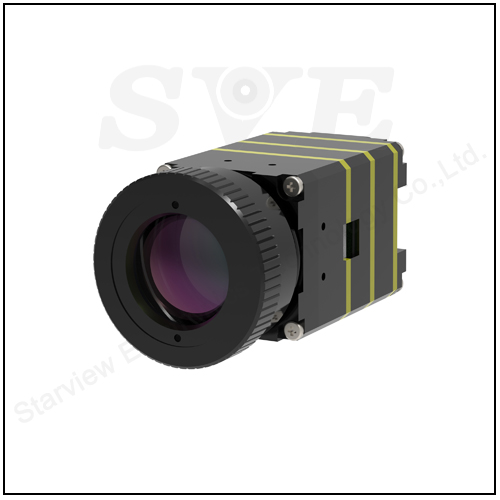

640*512 Thermal Imaging Temperature Measurement UVC Camera
Key Features
Thermal imaging Resolution: 640*512;
Intelligent gain control algorithm, detail hybrid enhancement algorithm, 3D noise reduction algorithm, and 10 kinds of false colors;
Temperature measurement range: -20℃ to 150℃;
Full-screen positioning of the highest and lowest temperatures, and display of the center temperature;
SDK development kit is provided to facilitate secondary development and integration;
It is used in the integration of fire helmets, night vision devices, handheld devices, traversers and other equipment.
Thermal imaging Resolution: 640*512;
Intelligent gain control algorithm, detail hybrid enhancement algorithm, 3D noise reduction algorithm, and 10 kinds of false colors;
Temperature measurement range: -20℃ to 150℃;
Full-screen positioning of the highest and lowest temperatures, and display of the center temperature;
SDK development kit is provided to facilitate secondary development and integration;
It is used in the integration of fire helmets, night vision devices, handheld devices, traversers and other equipment.
Technical parameters
| Model | SVN-U612TP |
| Sensor | |
| Type | Vanadium oxide uncooled focal plane detector |
| Image resolution | 640*512 |
| Cell distance | 12μm |
| NETD | ≦40mK@25℃ |
| Response bands | 8~14μm |
| Package type | Ceramic package |
| Lens type | |
| Lens (optional) | Field of view（FOV） |
| 9mm | 46.2°(H)×37.7°(V) |
| 13mm | 32.9°(H)×26.6°(V) |
| 19mm | 22.9°(H)×18.4°(V) |
| 25mm | 17.5°(H)×14.0°(V) |
| Image processing | |
| Main stream image | 640*512, 25Hz |
| Boot time | 10s |
| Image processing | Non-uniformity correction, intelligent gain control, digital detail blending enhancement, 3D noise reduction |
| Palette | Support 10 color palettes such as black hot, white hot, iron red, rainbow / customizable |
| Image mirroring | Left and right, up and down, center |
| System features | |
| OSD menu | Support |
| language of the system | English |
| Temperature measurement | Full-screen maximum temperature positioning, minimum temperature positioning, and center temperature display |
| Temperature measurement range | -20℃~150℃ |
| Data interface | |
| Video output | UVC output |
| Communication interfaces | UART, type-C |
| Power supply | |
| Power supply range | DC5V |
| Typical power consumption | 1.6W |
| Physical properties | |
| Product Dimensions (Without Lens) | 26mm*26mm*36.7mm |
| Weight (without accessories) | 30.0g |
| Environmental adaptability | |
| Operating temperature/℃ | -30℃～+60℃ |
| Storage temperature/℃ | -45℃～+75℃ |
| Humidity/RH | ≤95% |

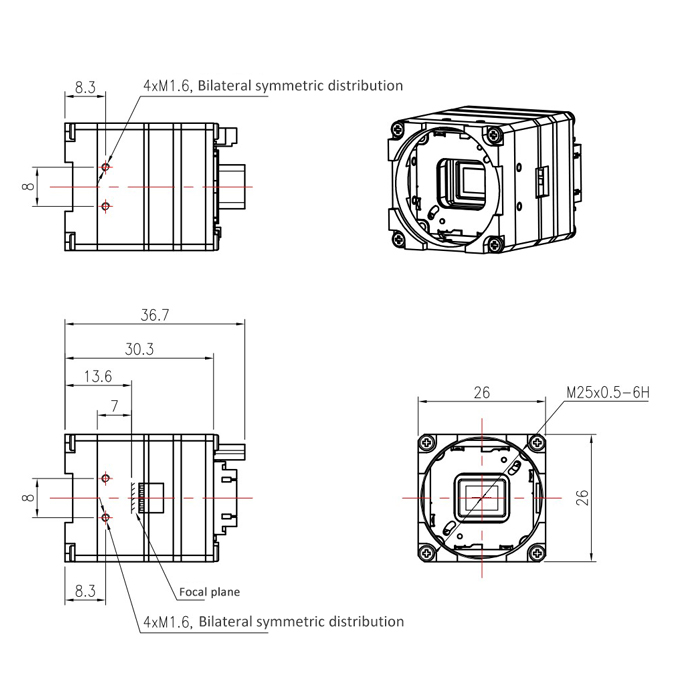

Structural dimensions
