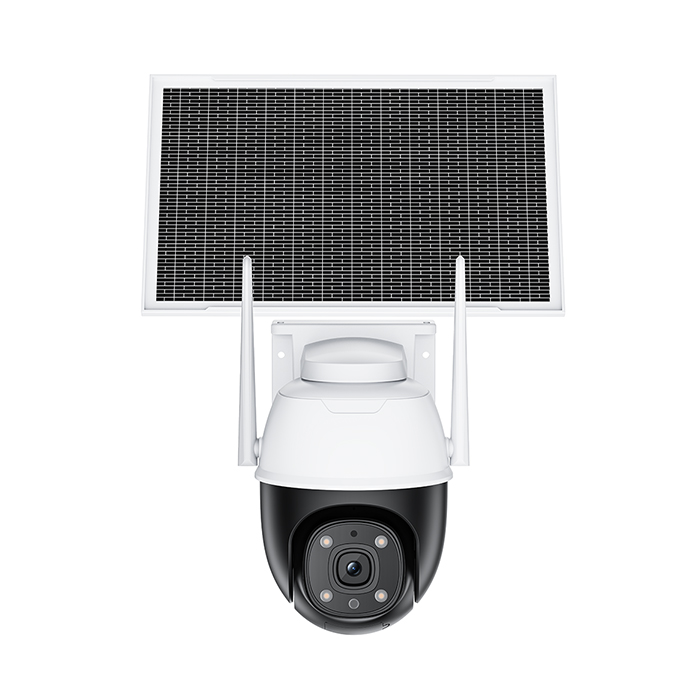

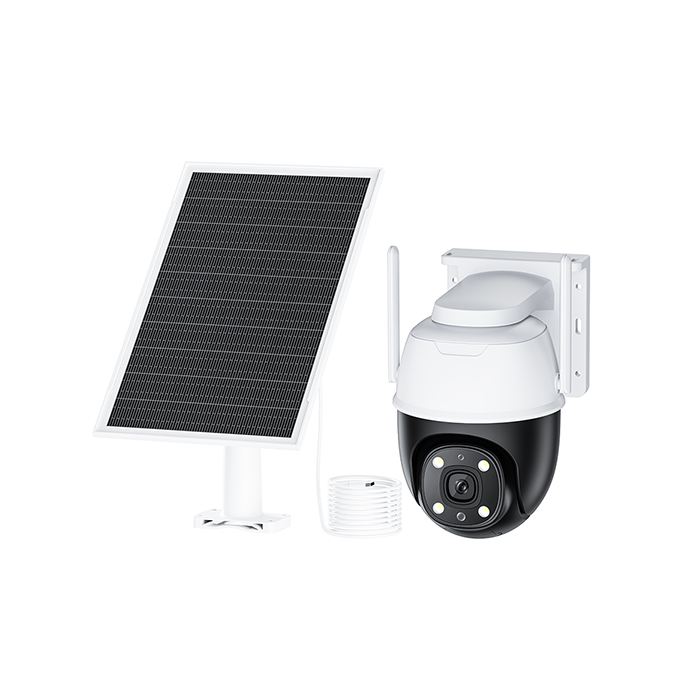

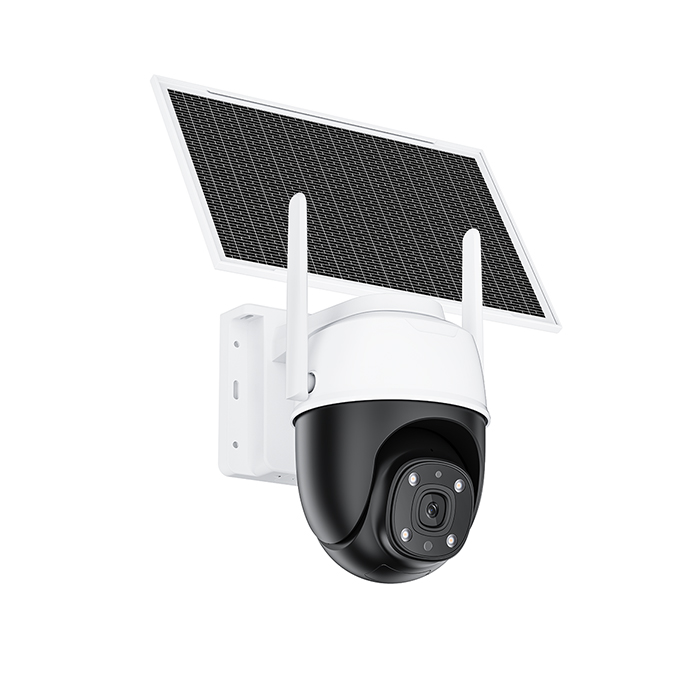

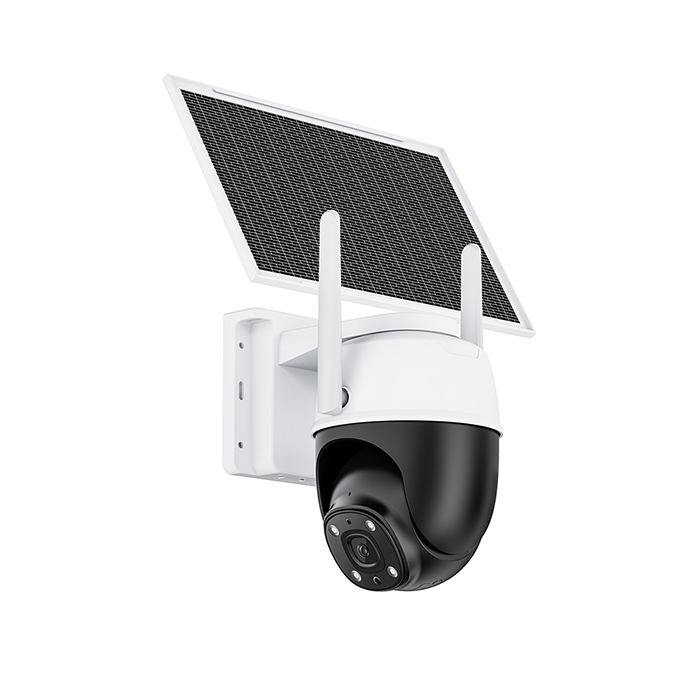

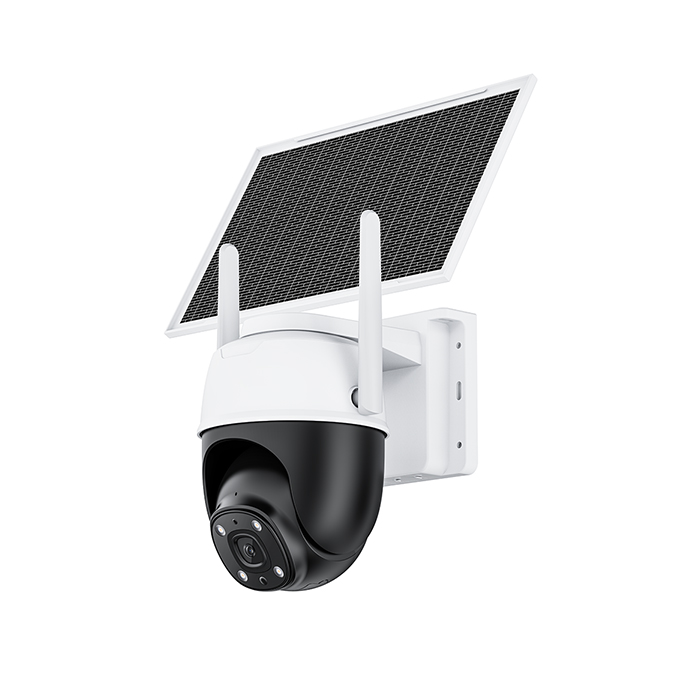

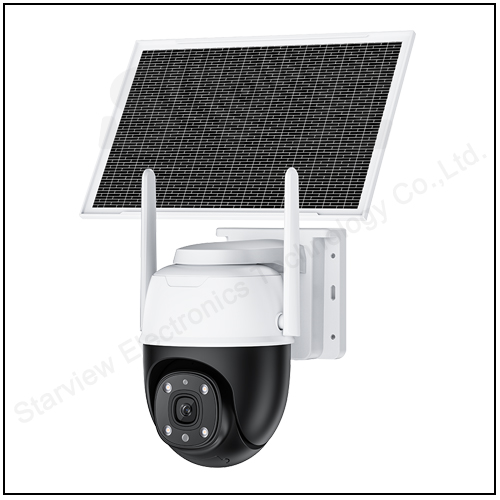

AOV ultra-low power Consumption Full Color 4G Solar Battery Camera
Key Features
* AOV ultra-low power consumption, ultra-long battery life, photovoltaic panel 8W=263x171mm; The battery capacity is 14400MAH.
* 4G connection, stable online.
* Full-duplex voice intercom
* Support cloud storage.
* One-piece board design for easy assembly.
* 3MP HD Resolution.
* Humanoid tracker.
* Real-time video recording.
Technical parameters
* AOV ultra-low power consumption, ultra-long battery life, photovoltaic panel 8W=263x171mm; The battery capacity is 14400MAH.
* 4G connection, stable online.
* Full-duplex voice intercom
* Support cloud storage.
* One-piece board design for easy assembly.
* 3MP HD Resolution.
* Humanoid tracker.
* Real-time video recording.
Technical parameters
| Model No. | SV-AOV4GEU |
| Video stream | No secondary stream, 1 CH stream,: 3MP, 2304×1296 |
| 50/60HZ can be set, frame rate, bit rate, main frame interval, image quality can be set. | |
| Frame rate | 15 fps, 1 fps at AOV. |
| Video encoding format | H265, H264 |
| Audio | Monitor, Intercom, G711 |
| Audio on, off | |
| Audio modes, linear and microphone | |
| Input Volume, Output Volume | |
| SD card recording | 10 minutes of scheduled video recording, 15 seconds of alarm recording, and no audio recording during AOV recording. |
| Scheduled recording time period, alarm recording time period. | |
| Alarms | Only AI alarms ( human and motor vehicles), no motion detection |
| AI front-end frameless, back-end framed | |
| Setting the AI alarm sensitivity | |
| AOV | Wake up every second, detect AI, one frame per second. |
| Alarm linkage | Alarm video, warning signal, alarm light, alarm message push, AI tracking. |
| PTZ control | Four-way control, self-test, AI tracking. |
| SD card playback | Maximum support 128G, SD video remote playback, SD card formatting |
| OSD | Video overlay OSD name and time |
| OSD name can be modified | |
| White fill light | No lights on during the day, light status determined by settings at night |
| Light has 3 modes, auto, custom, off | |
| Automatic: automatically adjusts the brightness of the light according to the ambient illuminance | |
| Custom: Specify the brightness of the lamp 1-100 | |
| Off: No lights on | |
| imaging | Brightness, saturation, contrast, up/down, left/right flip |
| Equipment Information | Name, Type, Network, Connections, IP, Gateway DNS, MCU Version, Software Version, Check for Updates (Internet Upgrade) |
| indicator light | Red light: work indicator, IPC normal work |
| Blue light: 4G network is normal | |
| Red and blue lights flash alternately, QR code configures APN status | |
| Reset key | Long press for more than 5 seconds IPC reset |
| If the 4G is unable to access the Internet it automatically enters the QR Code Configuration APN state for 5 minutes. | |
| operating temperature | - 10 ℃~50 ℃ |
| limits | Change the password of admin |
| batteries | 30% turns off 4G (stops P2P and alarm push) and motors, restores at 50%. |
| 20% stops scheduled recordings, only alarm recordings and white lights are retained | |
| 10% automatic shutdown | |
| 4G European bands | EU: LTE-FDD:B1/B3/B5/B7/B8/B20/B28 |
| 4G US bands | US: LTE-FDD:B2/B4/B5/B12/B13/B66 |
|
Dimension and weight of a single unit |
290x172x212mm 2kg/unit |
| box | One box of 8 units = 17kg, outer box size: 600x440x365mm |
