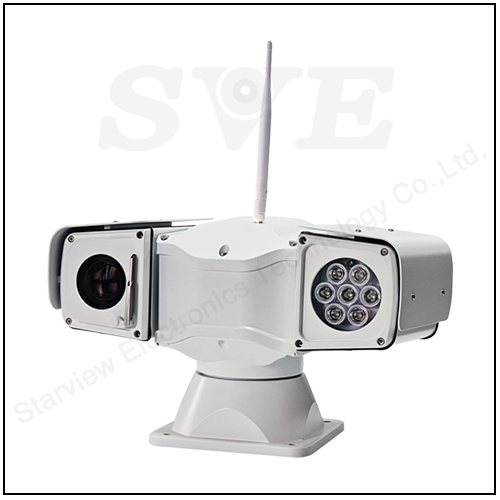

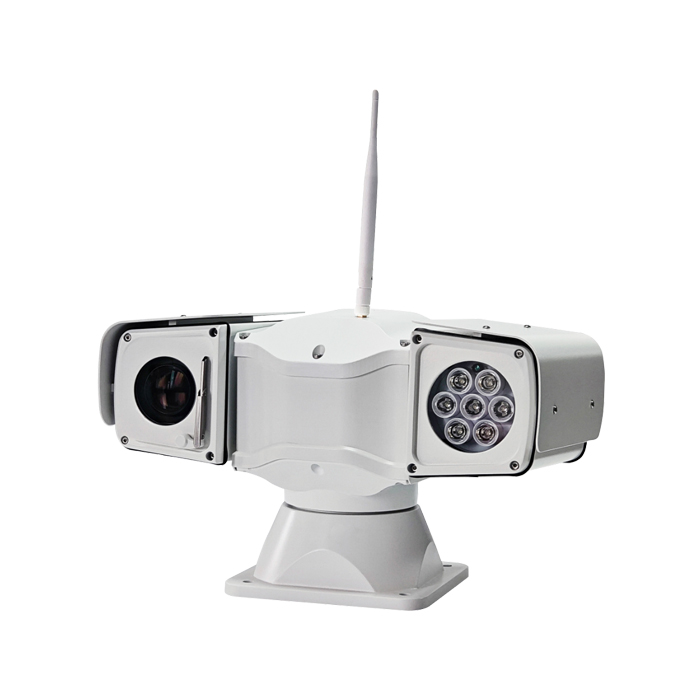

4MP 40X (6.8-272mm) Zoom 4G/WiFi Vehicle IP PTZ Camera
Product Description
- 4MP (2688*1520) 1/1.8" Progressive Scan CMOS;
- Minimum Illumination: Color:0.01 Lux (AGC ON); B/W:0.005Lux (AGC ON);
- 4G, Wifi, Hotspot, Network Connected, GPS localization
- Support GPS module for precise positioning
- Video is superimposed with 4G signal strength information, and the signal quality can be read in real time locally and remotely
- Horizontal Rotation: 360°, Vertical Rotation: -90°~90°;
- IR Distance: 120~150M (Optional laser), Support two-way voice intercom.
Technical parameters
| Model No. | SVN-TW10-SX4G-40X |
| Camera | |
| Image Sensor | Sony 1/1.8" CMOS |
| Focal Length | 6.8-272mm, 40x optical zoom |
| Shutter | 1/25~1/100000 |
| Minimum Illumination | Colour @0.01Lux (AGC ON), B/W @0.005Lux (AGC ON) |
| Horizontal field of view | 60-1.7°(wide-tele) |
| Minimum Working distance | 100mm- Infinity (wide-tele) |
| Zoom speed | About 10 seconds (optical, wide-tele) |
| Day/Night Switch | ICR automatic filter switching, supporting image algorithms, time periods, and serial port triggering |
| Pan&Tilt | |
| Preset pan speed | 100°/S |
| Preset tilt speed | 60°/S |
| Pan manual control speed | 0° ~ 60°/S |
| Tilt manual control speed | 0° ~ 40°/S |
| Pan range | 360 ° rotation |
| Tilt range | -90° ~ +90° |
| Preset accuracy | ±0.1° |
| Preset | 256 preset, 8 cruise trajectories |
| Wiper function | support |
| Control mode | RS485, Built in PELCO D/P protocol(Baud rate:2400Bps-19200Bps) |
| Video | |
| Main Stream | PAL:( 2688*1520, 1920*1080, 1280*720)25fps, NTSC: (2304*1296, 1920*1080, 1280*720)30fps |
| Auxiliary stream | PAL: (720*576, 352*288)25fps, NTCS: (720*480, 352*240)30fps |
| Third Stream | PAL: (720*576, 352*288)25fps, NTCS: (720*480, 352*240)30fps |
| Focus mode | Automatic, manual, semi-automatic, single focus (effective in automatic mode) |
| Wide Dynamic | 120dB |
| Image adjustment | Brightness, contrast, saturation, sharpness, and chromaticity are adjustable |
| Image settings | Area occlusion, anti flicker, defogging, mirroring, flipping, backlight compensation, strong light suppression, bad pixel compensation, watchful, power-off memory, electronic stabilization, distortion correction, 3D positioning |
| Network | |
| Intelligent alarm | Motion detection, video occlusion, network disconnection, hard drive error, IP conflict, disk full |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, IGMP, QoSR, RTMP, IPV6 |
| Interface Protocol | ONVIF, GB/T28181 |
| General functions | Three stream, password protection, heartbeat, IP blacklist and whitelist, offline local storage, offline continuation, up to 20 preview channels |
| Video Compression | H.264/H.265: Baseline, Main Profile, High Profile, MJPEG |
| Video Compressed bitrate | 64 Kbps~16Mbps |
| Audio Compression | G.711A, AAC, G711U, G726 |
| Audio Compressed bitrate | 8/16Kbps |
| Wireless | |
| 4G | Supports all-network or private network protocols |
| Wifi | Built-in WIFI module, supports 802.11b/g/n |
| Hotspot Mode | Support AP hotspot mode, support connecting router STA mode |
| Localization | built-in GPS |
| General | |
| Storage | built-in SD card Slot (max 256G) |
| Power consumption | DC10.8~DC18V |
| Operating temperature | -35ºC~+55ºC |
| Operating humidity | <90% |
| Protection grade | IP66 |
| Impact resistance | ≥4G |
| Installation method | Multiple installation methods to choose from based on the application environment |

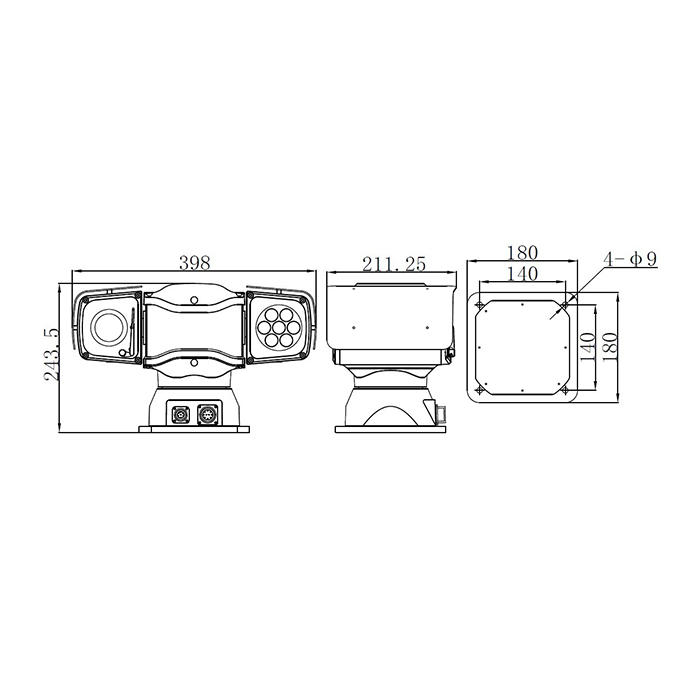

| Dimension | 398*211*243.5mm |
| Wight | 7Kg |
