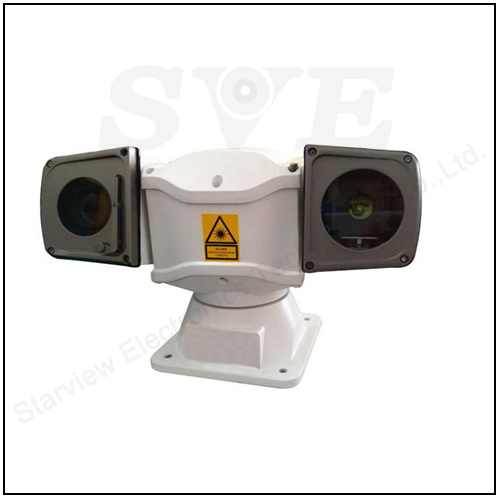

55X Optical Zoom 1500m Laser 1080P Rugged Portable Rapid Deployment IP66
Vehicle Security IP PTZ Camera
Vehicle Security IP PTZ Camera
Features：
- 55X 1080P (1920*1080) @30fps
- Working Temperature:-35° ~ +65°
- 360°continuous pan,-90°~90° tilt with "AUTO FLIP"
- 0°~60°/s pan speed, 0°~40°/s tilt speed
- 256 presets, ±0.1° preset accuracy
- Fastest Speed-up & Speed-down for tracking
- 6 Sequence with up to 18 presets
- Unique design to fulfill Anti-fog and defogging
- Defogging /defrosting function(High quality heating parts)
- Vertical motor self lock not to move after power off

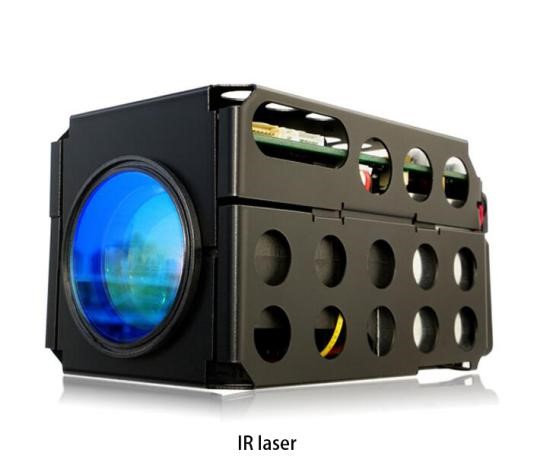

- Laser distance:1500m
- Support functions such as motion detection, video occlusion, tripwire (out of bounds) detection, perimeter (area intrusion), lost items, left items, audio detection, etc
| SVN-55TW10SL15W | ||
| Camera | ||
| Image Sensor | 1/1.8” Progressive Scan starlight Sensor | |
| Effective pixels | 2MP (1920*1080) @30fps | |
| Min illumination | Color: 0.001Lux@F1.8, B/W: 0.0005Lux@F1.8 | |
| White balance | AUTO/MANUAL/ATW/INDOOR/OUTDOOR | |
| Focal length | F=6.1-336mm (F1.8 to 6.5) | |
| Optical Zoom | 55X | |
| HOV | 42°~0.9° | |
| AGC | AUTO/MANUAL | |
| S/N Ratio | ≥50dB | |
| WDR | 120dB | |
| Shutter time |
|
|
| PTZ Function | ||
| Pan preset speed | 100°/s | |
| Tilt preset speed | 60°/s | |
| Pan control speed | 0°~60°/S | |
| Tilt control speed | 0°~40°/S | |
| Pan range | 360°endless rotation | |
| Tilt range | -90° ~ +90° | |
| Preset positions | 256 positions 8 tracking | |
| Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional | |
| Relative Humidity | Less than 90% | |
| IP Grade | IP66 | |
| Working Temperature | -35° ~ +65° | |
| Power Supply | DC12V3A | |
| Impact resistance requirements | ≥4G | |
| Wiper | Support | |
| Installation | Variety of installation according to the environment | |
| Weight | 7kg | |
| Network | ||
| Video Compression | H.264/H.265/MJPEG | |
| Audio Compression (Optional) | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 | |
| Compression output rate | 32Kbps—12Mbps | |
| Support Protocol | TCP/IP, MTU, HTTP, HTTPS, FTP, DHCP, DDNS, UPNP, RTSP, RTMP, NTP, SMTP, PPPOE | |
| Communication Protocol | PelcoD-P Protocol | |
| Storage Function | Support MicroSD storage | |
| Alarm | Motion detection, video occlusion, tripwire (out of bounds) detection, perimeter (area intrusion), lost items, left items, audio detection, etc |
| Distance | 1500m |
| Wavelength | 808±10nm |
| Laser chip power | 8.5W±0.5W |
