20X Optical Zoom 4K/60fps Ndi Optional HDMI/USB/3G SDI/Network Conference PTZ Camera

Key Features
  1. 1/1.8" 4K(3840*2160)@60fps Exmor R CMOS Sensor
  2. 20X (5.33~110mm) Optical Zoom, 16X Digital Zoom
  3. 2D/3D noise reduction algorithm, wide dynamic range
  4. Horizontal rotation: ±170º, Vertical rotation: -30° ~ +90°, Preset: 255
  5. HDMI:4K60/50/30/25, 1080P60/50/30/25, 720P60/50;
  6. Network: 4K60/50/30/25, 1080P30/25, 720P30/25;
  7. USB3.0: 4K30/25, 1080P30/25, 720P30/25
  8. RS232, RS485, IP external control interface;
  9. 3G-SDI: 1080P60/50/30/25, 720P60/50;
  10. Network protocols: Supports ONVIF, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols;
  11. Control interface: RS422 is compatible with RS485, RS232-IN, and RS232-OUT. The RS232 interface supports cascading
  12. With multi-function infrared remote control, easy to operate.
  13. Supports VISCA, PELCO-D, and PELCO-P protocols, and supports automatic identification protocols.
  14. Support auto-tracking, Defog, HDMI audio and video output simultaneously, Image freeze, Preset position cruise, POE&NDI(Optional)
  15. Work on Zoom, Facebook, Youtube, SKype, OBS, Potplyer,
Technical parameters
Model
Model No. SVN-4K60U12PW
Camera
Signal system 3840*2160P60/50/30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50
Image Sensor 1/2.5"8MP Exmor R CMOS Sensor
Scanning mode progressive
Lens 20X Optical Zoom, F1.65-3.8, f=5.33-110mm
Digital zoom 16X
Minimum illumination Supports ultra-low illumination,  0.1Lux@F1.6 (color), 0.01Lux@F1.6 (B&W)
Shutters 1/30s ~ 1/10000s
White balance Automatic, Indoor, Outdoor, Manual
BLC Support
Digital noise reduction 2D&3D Digital noise reduction
Signal-to-noise ratio ≥52dB
HOV 58°(Wide) ~ 2.9°(Far)
Horizontal rotation ±170º
Vertical rotation -30° ~ +90°
Horizontal rotation speed 1 º/s ~ 100 º/s
Vertical rotation speed 1 º/s ~ 60 º/s
Mirror Support Horizontal, Vertical
Preset 255
Preset Accuracy ±0.1°

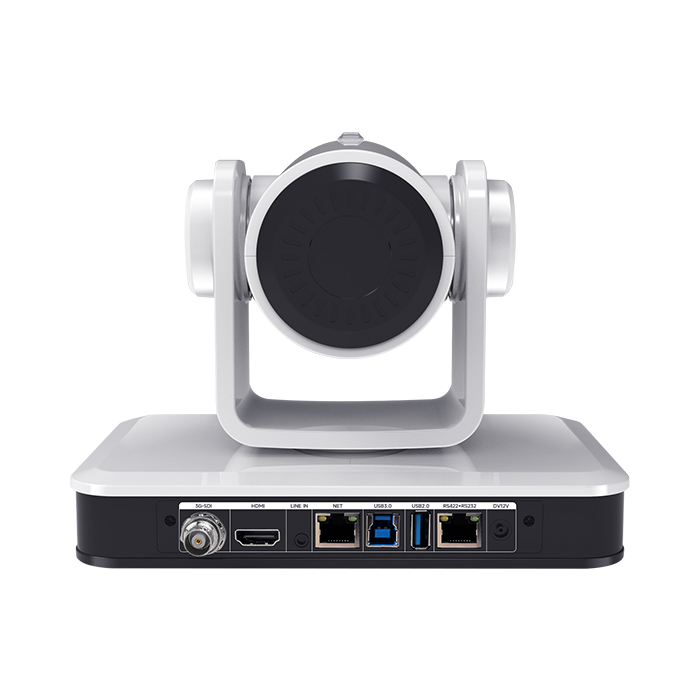

I/O interface
HDMI 2.0 4K60/50/30/25, 1080P60/50/30/25, 720P60/50
3G-SDI 1080P60/50/30/25, 720P60/50
USB 3.0 4K30/25, 1080P30/25, 720P30/25
USB 2.0 Reserved
Network Encoding H.265/H.264
Network protocol IPv4, TCP, UDP, HTTP, NTP, DNS, DHCP, RTSP, RTP, RTCP, RTMP, NDI(Optional),ONVIF, VISCA OVER IP
Communication interface 1 CH RS-232 IN, max. distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 CH RS-422, max. distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power supply JEITA Type (DC IN 12V) HEC3800
General
Input voltage AC110V-AC220V to DC12V/2A
Current DC12V(DC11.5-DC12.5V)
Operating temperature 0°C ~+45°C
Storage temperature -10°C ~ +60°C
Power consumption 24W(Max)

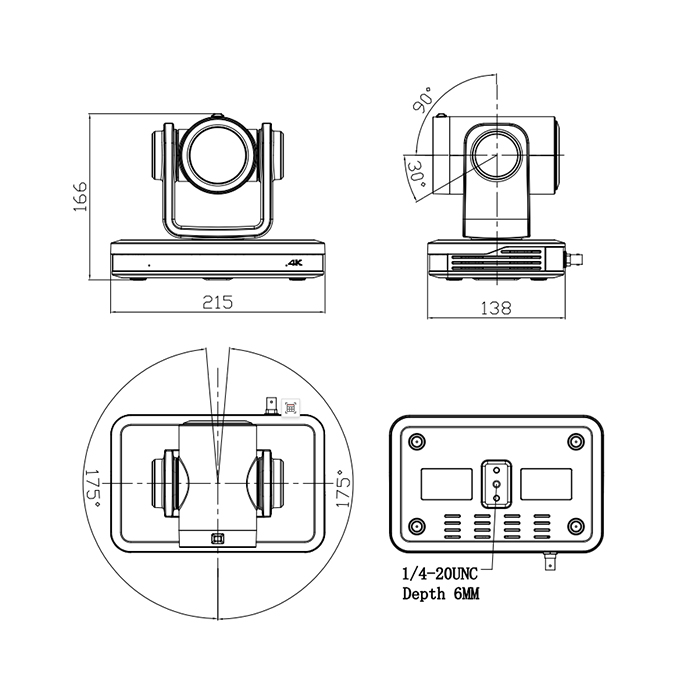

Size 215*150*166mm
Package Size 355mm*138mm*255mm
Weight (net) 3.5KG(1.6KG)
