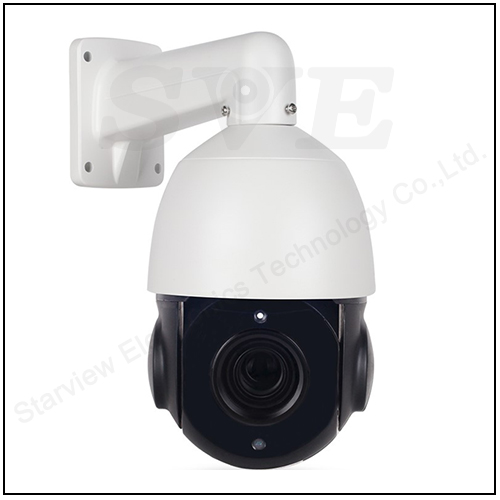

4.5" 18X Optical Zoom 8MP Auto Tracking Vehicle Human Detection Poe IP PTZ Camera
Key Features
8MP (3840*2160@30fps) Progressive Scan SONY415 CMOS Sensor.
18X Optical Zoom, Aperture value: F2.5-3.8, HOV: 52° -3.3°.
Pan: 360° continuous; 0.1~30°/S, Tilt: 0°~93°; 0.1°~15°/S, Preset: 220.
Support Human Motion Tracking, Motion Detection, Vehivle Detection.
4.5 inch Mini Speed Dome, Two-way Audio, 6pcs Φ38 LED IR Distance 80M
IP66 Waterproof, Power supply: DC 12V or POE 48V.
Support Android / IOS Smart Phone Remote Control, strong setting via.
Download PDF
Technical parameters
| Model | SVN-HD54F |
| Basic Parameters | |
| DSP | Hi3516CV610 |
| Image Sensor | 1/2.8” SONY IMX415 image sensor |
| Min. illumination | 0.03Lux@(F1.8, AGC ON), 3.0 Lux with IR |
| Noise reduction | 2D & 3D noise reduction |
| Image Settings | Support automatic white balance, digital wide dynamic, backlight compensation, adjustable brightness, contrast, chromaticity and other parameters; |
| General Function | Horizontal rotation, vertical rotation, preset cruise, 360 ° scan, AB scan |
| Lightning protection | 6KV lightning surge protection |
| Business function | Support OSD, real-time video transmission, intelligent detection alarm linkage and other functions |
| Web login | Built in web 2.0 pages, supporting non IE core browsers such as Edge, Chrome, Safari, Firefox, etc |
| Lens | |
| Focal length | 5.98 ～ 93.9 mm ±5%(18X Optical Zoom) |
| Field of view angle | FOV: 59.36°-3.84°; H FOV: 52.12°-3.36°, V FOV: 29.75°-1.9° |
| Aperture | F2.57(Wide) ～ F3.85(Tele) ±5% |
| PTZ | |
| Control angle | Horizontal: 0 º~360 º; Vertical: 0-93 º |
| Control speed | Horizontal: 0 º~30 °/s Vertical: 0 º~15 °/s |
| Preset | 220 |
| Scan/Cruise | Supports 360 ° scanning, A-B two-point scanning, and preset point cruising |
| Automatic tracking of effective range | 3-50m |
| Video | |
| Encoding format | H.264, H.265, H.265+ |
| Main stream | 4K (3840 * 2160) @ 30FPS/6MP (3200 * 1800) @ 30FPS/5MP (2880*1620)/4MP (2560*1440)/3MP (2304*1296)/2MP (1920*1080) |
| Sub stream | 720P/448P (800 * 448)/360P (640 * 360)/CIF (352 * 288) |
| Audio | |
| Audio processing | G.711A, G.711U |
| Audio function | 1 audio input/1 audio output; |
| Smart Application | |
| Electronic fence | Support detecting human/vehicle shapes, and the device will sound an alarm after entering the alert area; |
| Boundary Detection | Support detection of human/vehicle shapes, support A ->B, B ->A, A<->B direction detection |
| Off duty detection | Support setting up detection areas, where the device will sound an alarm after personnel leave for a certain period of time, and the alarm will stop when they return; |
| Passenger flow statistics | Support counting the number of people entering and leaving, and real-time overlay of OSD on the screen; Daily data available; |
| Humanoid tracking | Support humanoid tracking function, automatically track after detecting personnel; Electronic fence/boundary detection needs to be activated first; |
| Voice alarm | Support linked voice broadcasting, with customizable recording of voice content; |
| NVR linkage | Support functions such as linked video recorder large screen, local voice, AI recording, and push notifications; |
| Network | |
| Network protocol | ONVIF, P2P, CGI, HTTP, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS |
| Access Protocol | ONVIF protocol/Private protocol/CGI |
| Interface | |
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static capability |
| Remote monitoring | |
| Remote monitoring | Mobile monitoring (iOS, Android); APP: HiEasy; PC client: EasyVMS |
| Device Sharing | Support sharing function, the app can share up to 16 people |
| Fill light | |
| IR irradiation distance | 80m |
| IR light/warm light | 6 dot matrix infrared |
| General specifications | |
| Power supply method | Power adapter DC: 12V3A |
| Power interface type | Φ 5.5mm round mouth |
| POE (optional) | Support 1236/4578 power supply |
| Device power consumption | DC:12V, The maximum current is about 1.2A, and the maximum power consumption is about 14.4W |
| Operating Temperature | Turn on the fill light -30 ℃~45 ℃, turn off the fill light: -30 ℃~55 ℃ |
| Restore factory settings | Support |
| Material | Combination of metal structural components and plastic structural components |

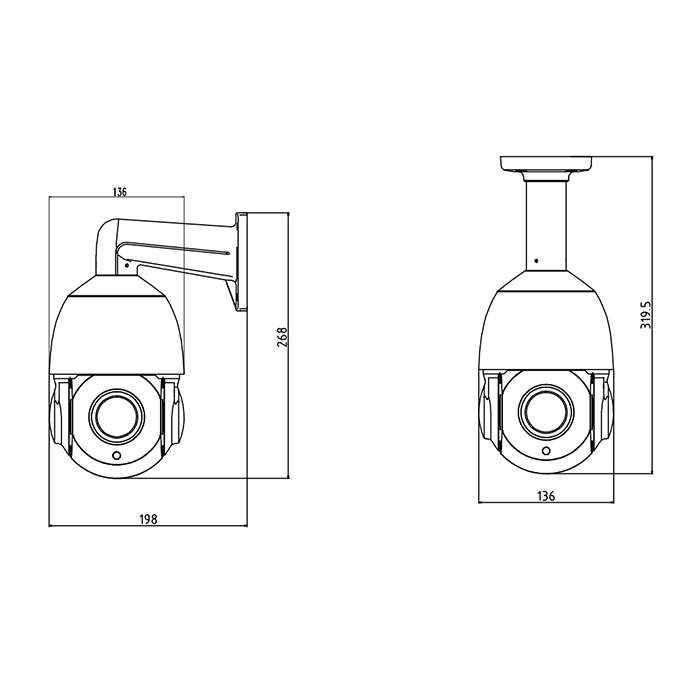

| Size | Product size: 136 * 136 * 230mm; Packaging size: 185 * 185 * 285mm |
| weight | Net weight: approximately 1.56KG; Gross weight: approximately 2.24KG |
| Protection | IP66 |
| Packaging accessories | Waterproof cap x1, instruction manual x1, certificate of conformity x1, warranty card x1 (not included in foreign countries), screw package x1, Bracket x1, power supply x1 |
