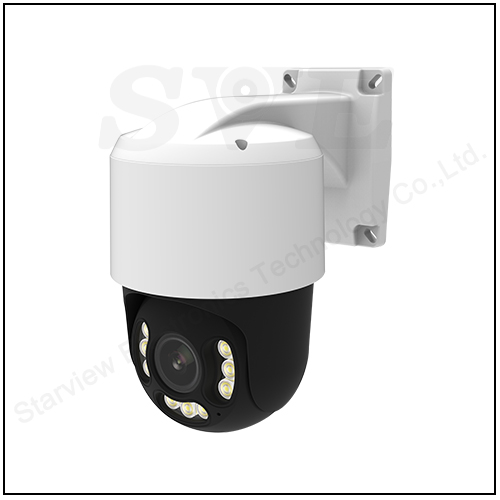

5MP 5X Optical Zoom No Exposure of 10m Face/License Plate Tzip Low Storage Encoding Poe IP Humanoid Tracking PTZ Camera
Key Features
- 5X optical zoom supports AI humanoid tracking lens with automatic zoom;
- 5MP (2880 * 1620) UHD Image Quality;0.01 Lux ultra-low illumination
- TPIC receiving light, no exposure of 10M face/license plate, clear view of face/license plate;
- Active voice alert;
- Onvif protocol, TZIP Low Storage Encoding;
- TF card supports a maximum of 512GB;
- Support area intrusion/boundary detection, intelligent playback
- and video linkage of humanoid/car shapes, etc
| Model No | SVN-MG13BW-500TS-5XP |
|
System Architecture
|
Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog, 8MB FLASH
|
| Image Sensor |
5MP 1/2.7" CMOS
|
| Video processing |
H. 265+/H.265/H.264 video encoding, supports dual stream, AVI format; Supports adjustable bitstreams ranging from 500k to 8000k bps, and supports both P and N formats;
|
| Frame rate | 5MP@25 FPS |
| Main stream |
2880 × 1620, 2592 × 1520, 2560 × 1440, 2048 × 1520, 2304 × 1296, 1920 × 1080;
|
| Sub stream | 800 × 448, 640 × 480, 640 × 360, 480 × 360, 352 × 288 |
| ONVIF protocol |
Support ONVIF2.4
|
| Audio processing |
G. 711 encoding standard, supports two-way voice intercom function, supports audio and video synchronization
|
| Remote Mobile | Supports Android and iOS smartphone access, and supports "Seetong" cloud service |
| Electronic Shutter | automatic |
| Local storage | TF card maximum 512GB |
| Digital WDR |
support
|
| Noise reduction | Support 2D and 3D noise reduction |
| Network protocol | Supports TPS, TCP/IP, IPv4, DHCP, RTSP, P2P, ONVIF, GB28181 |
| Business function |
Support web configuration, OSD, real-time video transmission, motion detection alarm linkage, and linkage between center reminder and pop-up screen after motion detection alarm; Support remote monitoring software (Seetong) and other system
applications;
|
| Lens | 5X |
| Rotation range |
Horizontal: 350 º; Vertical: 95 º
|
| Horizontal rotation speed | 30°/s |
| Vertical rotation speed | 20°/s |
|
Automatic tracking of
effective range
|
5M-30M
|
| Night vision fill light | 9 dot matrix infrared lights+9 dot matrix warm light ligh |
| Night vision distance | Black &white: 50 meters, full-color: 40 meters |
| preset | 16 |
| AB scan | Random setting |
| Power consumption | ≤12W |
|
Working temperature
range
|
-10℃～+50℃
|
| Power supply |
POE/DC12V(2A)
|
| Waterproof | IP66 |
