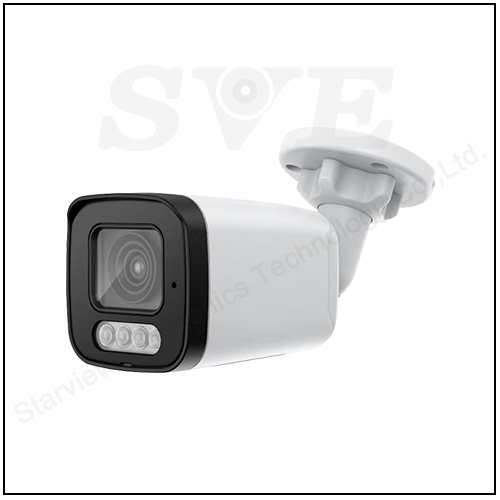

5MP Dual Light Alert Ultra-Low Illumination No Exposure of 10m Face/License Plate IP66 Poe IP Camera
Key Features
- Support 12X digital zoom and automatic enlargement of the human centered lens;
- Support red & blue flashing warning lights
- 5MP (2880 * 1620) UHD Image Quality;
- 0.01 Lux ultra-low illumination
- TPIC receiving light, no exposure of 10 meter face/license plate, clear view of face/license plate;
- Active voice alert;
- Onvif protocol, TZIP Low Storage Encoding;
- TF card supports a maximum of 512GB;
- Support area intrusion/boundary detection, intelligent playback and video linkage of humanoid/car shapes, etc
| Model No. |
SVN-MG500CCI-12BW-5MPTS-3.6mm
|
| System Architecture |
Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog, 8MB FLASH
|
| Image Sensor | 5MP 1/2.7" CMOS |
| Video processing |
H. 265+/H.265/H.264 video encoding, supports dual stream, AVI format; Supports adjustable bitstreams ranging from 500k to 8000k bps, and supports both P and N formats;
|
| Frame rate |
5MP@25 FPS
|
| Main stream |
2880 × 1620, 2592 × 1520, 2560 × 1440, 2048 × 1520, 2304 × 1296, 1920 × 1080;
|
| Sub stream | 800 × 448, 640 × 480, 640 × 360, 480 × 360, 352 × 288 |
| ONVIF protocol | Support ONVIF2.4 |
|
Audio processing
|
G. 711 encoding standard, supports two-way voice intercom function, supports audio and video synchronization
|
| Remote Mobile |
Supports Android and iOS smartphone access, and supports "Seetong" cloud service
|
| Electronic Shutter | automatic |
| Local storage | TF card maximum 512GB |
| Digital WDR | support |
| Noise reduction | Support 2D and 3D noise reduction |
| Network protocol | Supports TPS, TCP/IP, IPv4, DHCP, RTSP, P2P, ONVIF, GB28181 |
| Business function |
Support web configuration, OSD, real-time video transmission, motion detection alarm linkage, and linkage between center reminder and pop-up screen after motion detection alarm; Support remote monitoring software (Seetong) and other system applications;
|
| Lens | 3.6mm |
| Night vision distance |
15m
|
| Power consumption | ≤5W |
|
Working temperature
range
|
-10℃～+50℃
|
| Power supply | POE/DC12V (1A) |
| Waterproof | IP66 |
