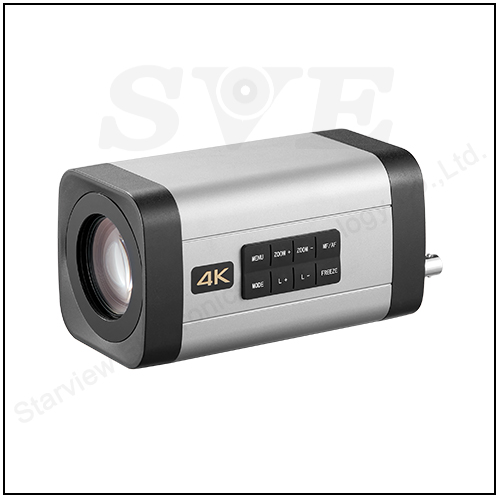

4K/30fps HDMI UHD 3G-SDI USB3.0 Network 20X Video Camera

Product Description

1. 4K Full HD images: Using a high-quality Exmor R CMOS sensor with 1/2.5 inch and 8.51 million effective pixels, it can achieve high-quality images with 3840 × 2160 ultra-high resolution.
2. Low noise and high signal-to-noise ratio: 2D and motion estimation based 3D denoising algorithms were applied, and a new generation of low-noise sensors were used to effectively reduce noise.
3. 20x optical zoom, 12x digital zoom: 20x optical zoom, Focal length: 5.5-110mm HOV: 58°~2.9°, 12x digital zoom
4. 4KP30 HDMI Video Output: USB3.0: 4KP30/25,1080P30/25, 720P30/25.
5. 4KP30 USB3.0 Video Output: USB3.0: 4KP30/25,1080P30/25, 720P30/25.
6. 4K Network Video Output: Network: 4KP30/25, 1080P30/25, 720P30/25.
7. 3G-SDI Video Output: 3G-SDI: 1080P60/50/30/25, 720P60/50.
8. 255 preset positions: 255 positions can be pre-set through the serial port, including preset zoom and power-off storage.
9. OSD Menu Function

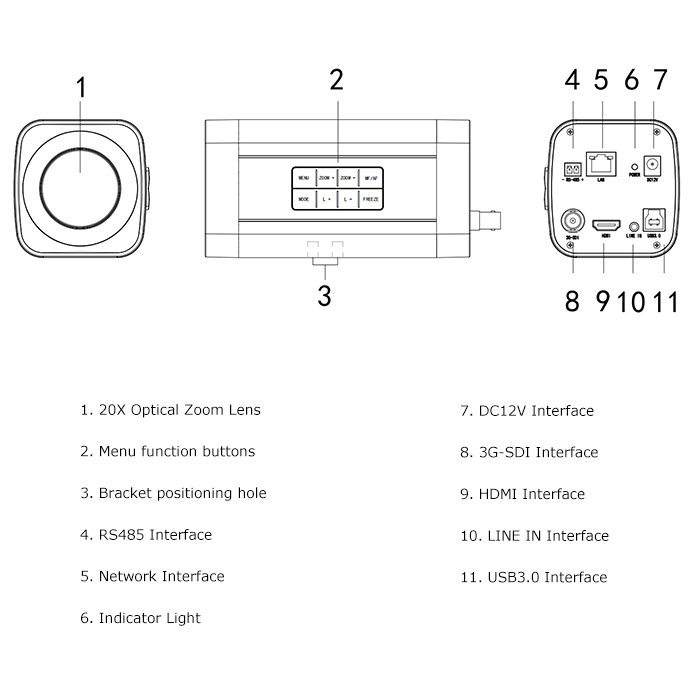

Camera interface function

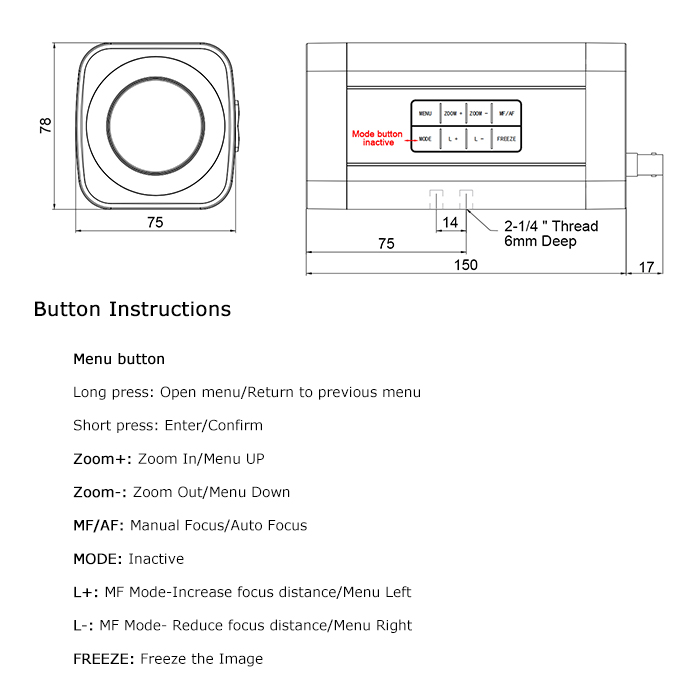

Dimensional drawing

Product Specifications


Camera
Signal system	3840*2160P30/25, 1080P60/50/30/25, 720P60/50
Image Sensor	1/2.5" 8.51MP UHD CMOS Sensor
Scanning method	progressive scanning
Optical Zoom	20X
Digital Zoom	12X
Minimum illuminance	Ultralow illumination: 0.1Lux@F1.6(Color), 0.01Lux@F1.6(B/W)
Shutter	Automatic, indoor, outdoor, manual
White balance	Automatic, indoor, outdoor, manual
BLC	Support
Digital noise Reduction	2D&3DNR
SNR	≥52dB
HOV	58°~2.9°, focal length: 5.5mm~110mm
Horizontal & vertical flip	Support
Preset position	255
Interface
HDMI2.0	Max 4K/30
USB3.0	Max 4KP30, Encode: H.264/MJPEG/YUY2
3G-SDI	Max 3G-SDI, 1080P60
Network	Encode: H.264/MJPEG (H.265 inactive) Network protocol: IPv4, TCP, UDP, HTTP, NTP, DNS, DHCP, ARP, RTSP, RTP, RTCP, RTMP, NDI (optional), ONVIF, VISCA OVER IP.
Communication interface	1 CH, RS-485, Maximum distance: 1200M, VISCA/Pelco-D/Pelco-P Protocol Default baud rate: Pelco-D, 9600bps
Power interface	JEITA Type (DC IN 12V) HEC3800
Input voltage	AC110V-AC220V to DC12V/1.5A
Input current	DC12V(DC11.5-DC12.5V)
Operating temperature	0°C~ +45°C
Storage temperature	-10°C~ +60°C
Power consumption	12W(Max)
Product dimensions	(D)167mm * (W)75mm * (H)78mm
Package dimensions	(D)220mm * (W)110mm * (H)110mm
Weight (net weight)	1KG(0.8KG)
