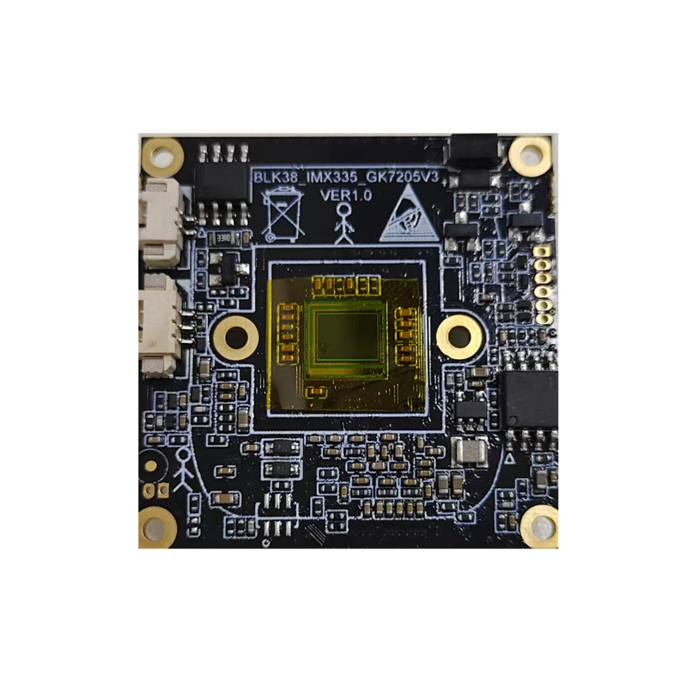

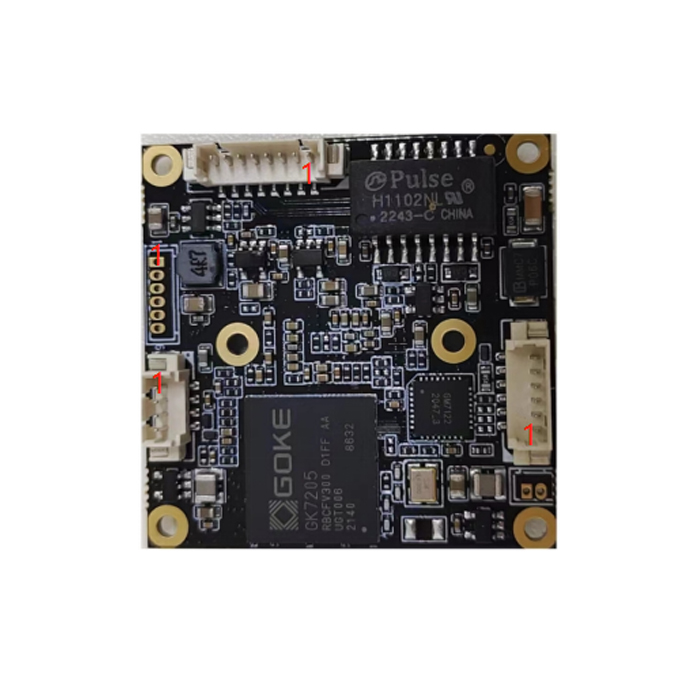

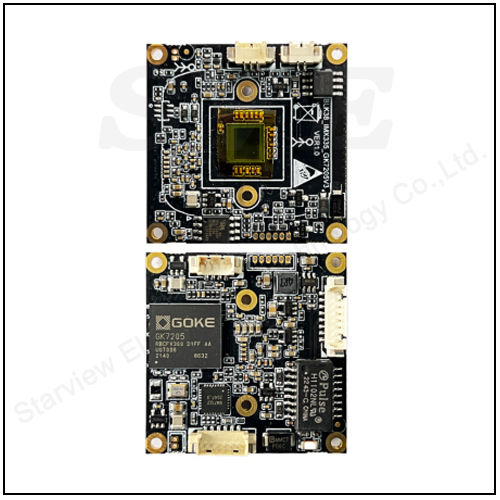

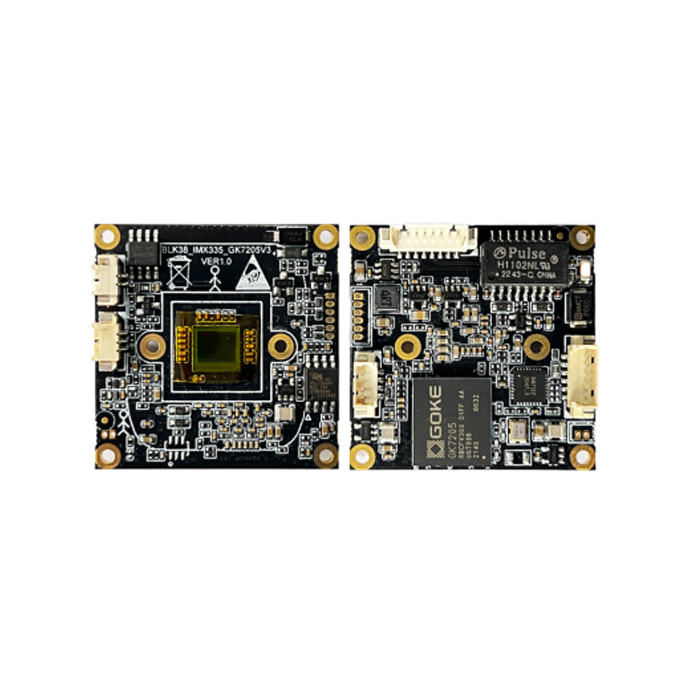

5MP Imx 335 CMOS Sensor H. 265+ Onvif 38*38 IP Camera Module
Key Features
- 1/2.8" 5MP CMOS Sensor;
- Standard 38*38 Single-layer boards structure;
- H.265+, H.265, H.264 encoding;
- Supports image flip, backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, and digital wide motion;
- IR/full color mode, support PWM dimming;
- Support CVBS analog video output (optional)
- Standard ONVIF
- Supports motorized zoom (optional)
- Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarms
- Provide SDK development kit, support secondary development
Technical parameters
| Model | |||
| Model No. | SVN-NGS335C | ||
| Master chip | GK7205V300, Cortex A7@900MHz, 128MB Internal DDR3 | ||
| Image Sensor | 1/2.8" Progressive Scan CMOS IMX335 | ||
| Minimum illumination | Color: 0.01Lux@F1.2 (AGC ON), B/W: 0 Lux (IR ON) | ||
| Wide dynamic | 100 dB | ||
| Main stream | 20fps@(2592*1944) | 25fps@(2592*1520, 2560*1440) | 30fps@(1920*1080) |
| Sub stream | 20fps@(704*576, 640*480) | 25fps@(704*576, 640*480) | 30fps@(704*576, 640*480) |
| Video compression standard | H.265+/H.265/H.264 | ||
| Video compression bit rate | 32 Kbps~16 Mbps | ||
| H.264 encoding type | BaseLine Profile/Main Profile/High Profile | ||
| H.265 encoding type | Main Profile | ||
| Bitrate control | Fixed Bit Rate, Variable Bit Rate | ||
| Character overlay | support | ||
| Image enhancement | Backlight Compensation, Glare Suppression, 3D Digital Noise Reduction, Fog Transmission | ||
| Image Settings | Rotation, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance, Support Day/Night Conversion | ||
| Audio interface | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier | ||
| Audio sampling rate | 8 kHz | ||
| Audio Compression Standards | G.711ulaw / G.711alaw / G.726 / AAC-LC | ||
| Simultaneous previews | Maximum 6 channels | ||
| Network protocol | Supports HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE, etc., supports ONVIF and other standards-based agreements | ||
| Browser |
Preview using plug-ins: IE10, IE11 Preview using native services: Edge, Chrome, Firefox, etc. |
||
| Network | 1 RJ45 Ethernet port, 10 M/100 M adaptive | ||
| Audio | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier | ||
| lamppanel | Support photosensitive detection input, support PWM dimming | ||
| USB port | 1 USB2.0 interface (5V power supply), support the expansion of 4G/WiFi function | ||
| Reset | Support | ||
| CVBS Output | Support 1 CH CVBS analog video output (optional) | ||
| Sizes | 38×38×10.8mm, 38 Single-layer boards structure | ||
| weights | 10g | ||
| operating temperature | -20ºC~+60ºC | ||
| Power supply & power consumption | DC12V power input, 1.2W (MAX) power consumption | ||
