1080P Sony Imx385 CMOS Sensor H. 265+ 120dB WDR Onvif 38*38 IP Double Layers Camera Module
Key Features
- 1/2" 1080P CMOS Sensor;

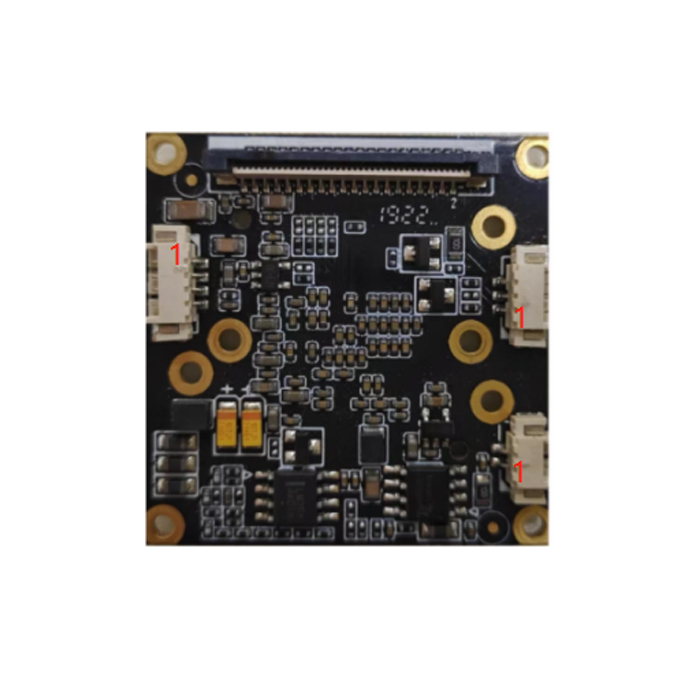

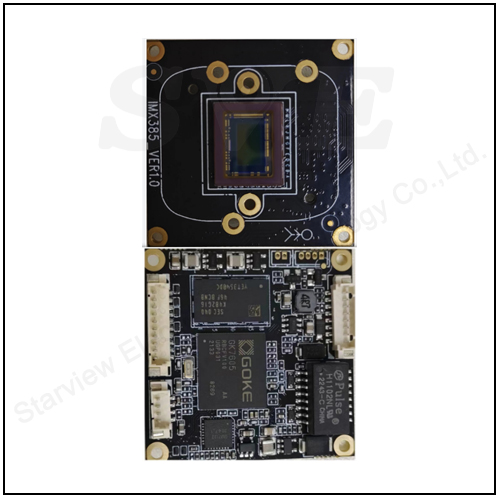

- Standard 38*38 Double layers boards structure;
- H.265+, H.265, H.264 encoding;
- Supports image flip, backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, and digital wide motion;
- IR/full color mode, support PWM dimming;
- Support CVBS analog video output (optional)
- Standard ONVIF
- Supports motorized zoom (optional)
- Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarms
- Provide SDK development kit, support secondary development
Technical parameters
| Model | |
| Model No. | SV-NGD385A |

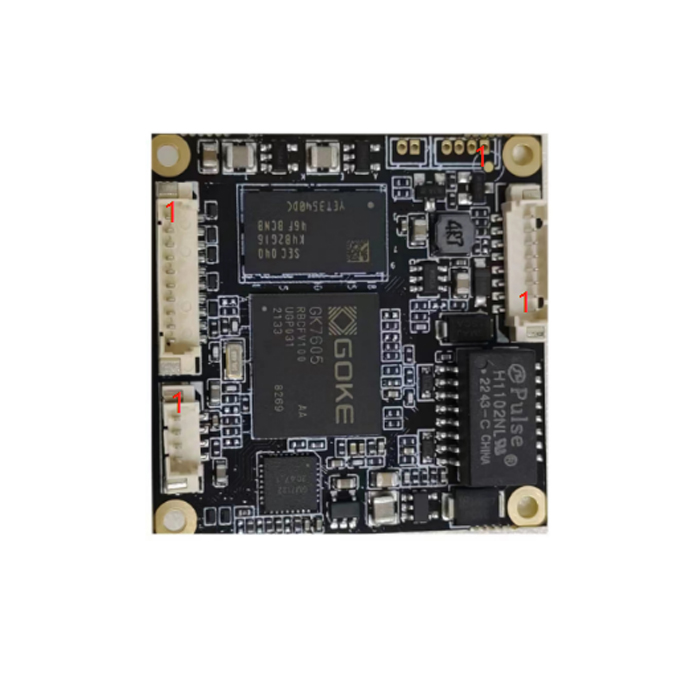

| Master chip | GK7605V100, Cortex A7@900MHz |
| Image Sensor | 1/2" Progressive Scan CMOS IMX385 |
| Minimum illumination | Color: 0.01Lux@F1.2 (AGC ON), B/W: 0 Lux (IR ON) |
| Wide dynamic | 120 dB |
| Main stream | 30fps@(1920*1080, 1280*960, 1280*720) |
| Substream | 30fps@(704*576, 640*480) |
| Video compression standard | H.265+/H.265/H.264 |
| Video compression bit rate | 32 Kbps~16 Mbps |
| H.264 encoding type | BaseLine Profile/Main Profile/High Profile |
| H.265 encoding type | Main Profile |
| Bitrate control | Fixed Bit Rate, Variable Bit Rate |
| Character overlay | support |
| Image enhancement | Backlight Compensation, Glare Suppression, 3D Digital Noise Reduction, Fog Transmission |
| Image Settings | Rotation, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance, Support Day/Night Conversion |
| Audio interface | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier |
| Audio sampling rate | 8 kHz |
| Audio Compression Standards | G.711ulaw / G.711alaw / G.726 / AAC-LC |
| Simultaneous previews | Maximum 6 channels |
| Network protocol | Supports HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE, etc., supports ONVIF and other standards-based agreements |
| Browser |
Preview using plug-ins: IE10, IE11 Preview using native services: Edge, Chrome, Firefox, etc. |

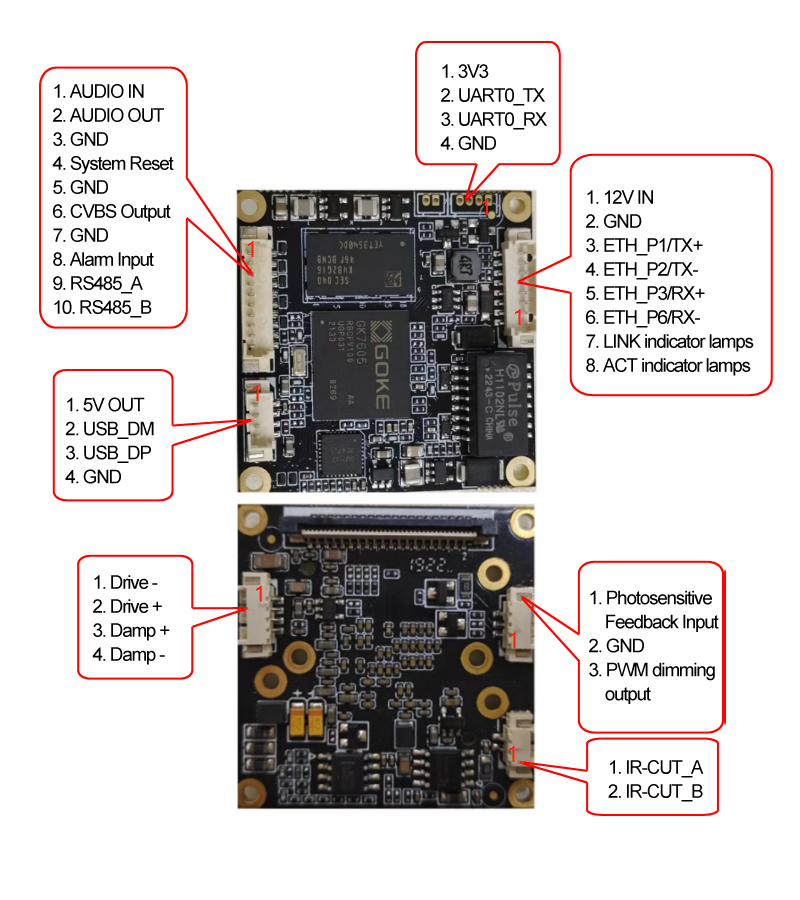

| Network | 1 RJ45 Ethernet port, 10 M/100 M adaptive |
| Audio | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier |
| lamppanel | Support photosensitive detection input, support PWM dimming |
| USB port | 1 USB2.0 interface (5V power supply), support the expansion of 4G/WiFi function |
| Reset | Support |
| CVBS Output | Support 1 CH CVBS analog video output (optional) |

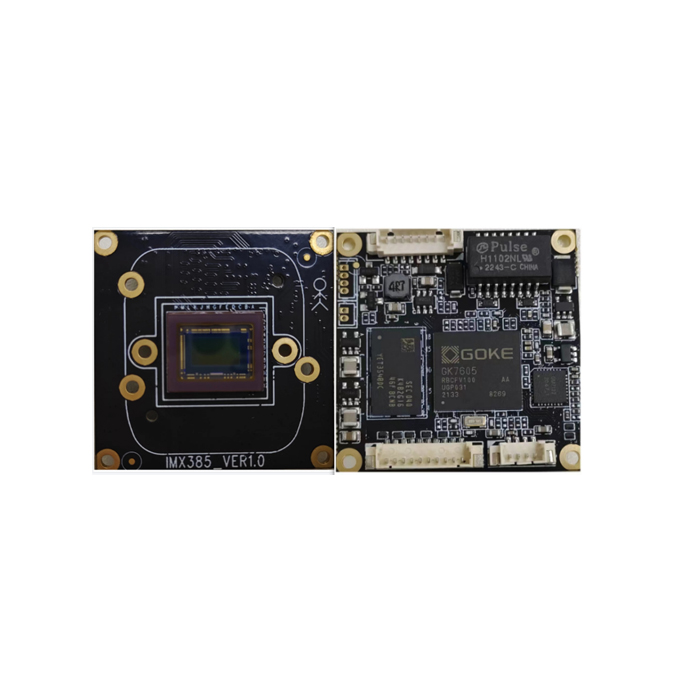

| Sizes | 38×38×10.8mm, 38 Double layers boards structure |
| weights | 10g |
| operating temperature | -20ºC~+60ºC |
| Power supply & power consumption | DC12V power input, 1.2W (MAX) power consumption |
