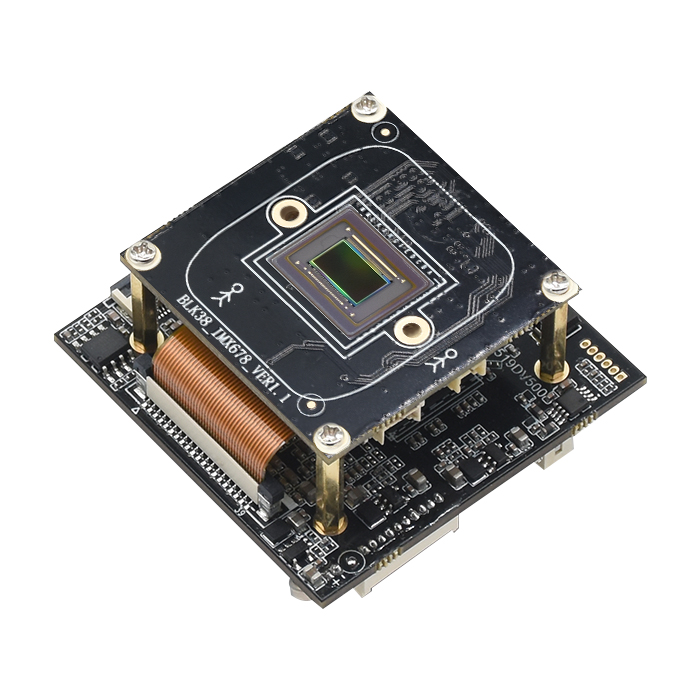

8MP 60fps Sony Imx678 CMOS Sensor 120dB WDR Onvif
50*50+38*38 IP Double Layers Camera Module
Key Features
* 1/1.8" 8MP CMOS Sensor;
* Standard 50*50 + 38*38 Double layers boards structure;
* H.265+, H.265, H.264 encoding;
* Supports image flip, backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, and digital wide motion;
* Support standard ONVIF, GB28181, RTMP, HK, DH and other proprietary protocols;
* Provide SDK development kit, support secondary development, support CGI, HTTP, WEBSOCK protocol docking;
* Gigabit network;
* 4T computing power;
* 8GB memory, 16GB EMMC storage;
* Support Google Core Browser without plugins;
* Supports high frame rate up to 60FPS;
* Supports AIISP image enhancement to enhance the low-noise effect.
* Standard 50*50 + 38*38 Double layers boards structure;
* H.265+, H.265, H.264 encoding;
* Supports image flip, backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, and digital wide motion;
* Support standard ONVIF, GB28181, RTMP, HK, DH and other proprietary protocols;
* Provide SDK development kit, support secondary development, support CGI, HTTP, WEBSOCK protocol docking;
* Gigabit network;
* 4T computing power;
* 8GB memory, 16GB EMMC storage;
* Support Google Core Browser without plugins;
* Supports high frame rate up to 60FPS;
* Supports AIISP image enhancement to enhance the low-noise effect.
Technical parameters
| Model No. | SV-NHF678 |

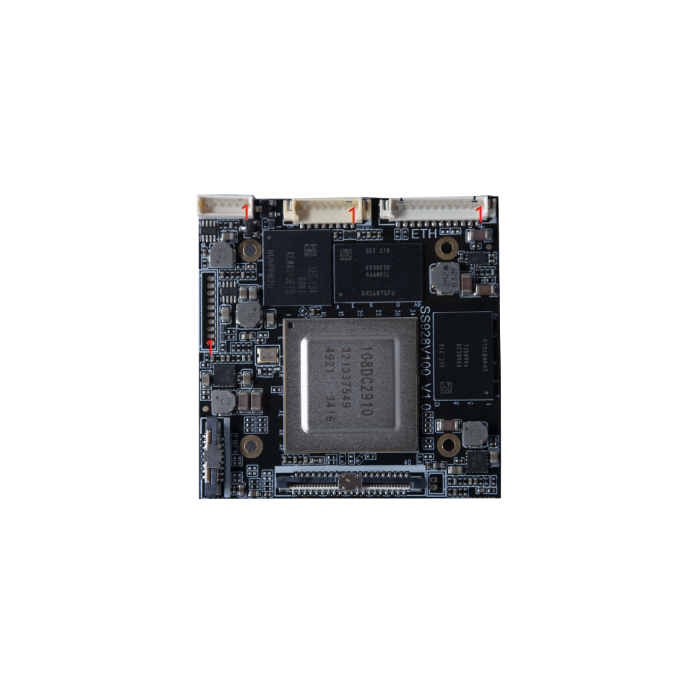

| Master chip | SS928V100 |
| Image Sensor | 8MP, 1/1.8" black light IMX678 CMOS Sensor |
| Minimum illumination | Color: 0.001Lux@F1.0 (AGC ON), B/W: 0.001 Lux (IR ON) |
| Watchdog | hardware watchdog |
| Wide dynamic | 120 dB |
| Main stream | 60fps@3840*2160,30fps@ (3840*2160, 2880*1620, 2560* 1440, 1920*1080) |
| Substream | 30fps@ (704*576, 640*480) |
| Video compression standard | H.265+/H.265/H.264 |
| Frame rate enhancement | Maximum support 4K@60FPS |
| Video compression bit rate | 512 Kbps~32 Mbps |
| Character overlay | support |
| Shutter | 1/12s ~ 1/100000s |
| Noise reduction | 3D/2D noise reduction |
| WDR | Support digital wide dynamic range |
| Auto Iris | Support DC IRIS automatic aperture |
| Audio interface | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier |
| Audio Compression Standards | G711U / G711A / AAC-LC |
| Simultaneous previews | Maximum 8 channels |
| Network protocol | Supports CGI, HTTP, HTTPS, GB28181, SIP, RTMP, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket and other network protocols. Supports standard protocols such as ONVIF |
| Browser |
Preview using plug-ins: IE10, IE11 Use plugin free preview: Edge, Chrome, Firefox, etc. |
| Network | 1 RJ45 Ethernet port, 10 M/100 M adaptive |
| Audio | 1 input, support microphone or pickup input; 1 output, support connecting headphones or amplifier |
| USB port | USB 2.0+USB 3.0 (5V power supply), supporting extended 4G/WiFi functionality |
| Sizes | 50x50x10.8mm, 38×38×10.8mm, 50+38 Double layers boards structure |
| weights | 20g |
| operating temperature | -20ºC~+60ºC |
| Power supply & power consumption | DC12V power input, 6W (MAX) power consumption(60fps with a power of 6.5w) |
