5MP Imx568 Global Exposure CMOS Onvif IP Camera Module
Key Features
- 1/1.8" 5MP IMX568 Global exposure CMOS Sensor.
- H. 265+, H.265, H.264 encoding. 60fps main stream
- Supports mirroring, flipping; BLH, HLC, 3DNR, Defog; Digital WDR
- Supports infrared/full-color/dual light modes, PWM dimming
- Standard ONVIF, GB28181, HIK, DH and other proprietary protocols
- Support electric zoom (optional), automatic aperture (optional)
- Provide SDK development kit, support secondary development, support CGI, HTTP, WEBSOCK protocol docking
- AIISP image enhancement, enhancing low noise effect
- Google Core Browser without plugins
- Support UVC
Technical parameters
| Model | SVN-HD568G |
| Camera | |

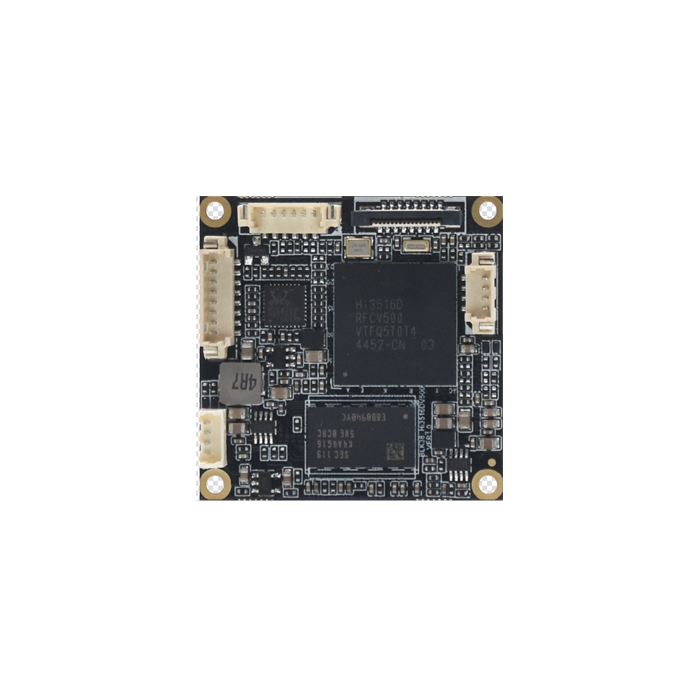

| DSP | Hi3516DV500, ARM Cortex A55@850MHz Dual-Core |
| DDR | 1Gbit DDR4 |
| Flash | 128MB SPl NAND Flash |

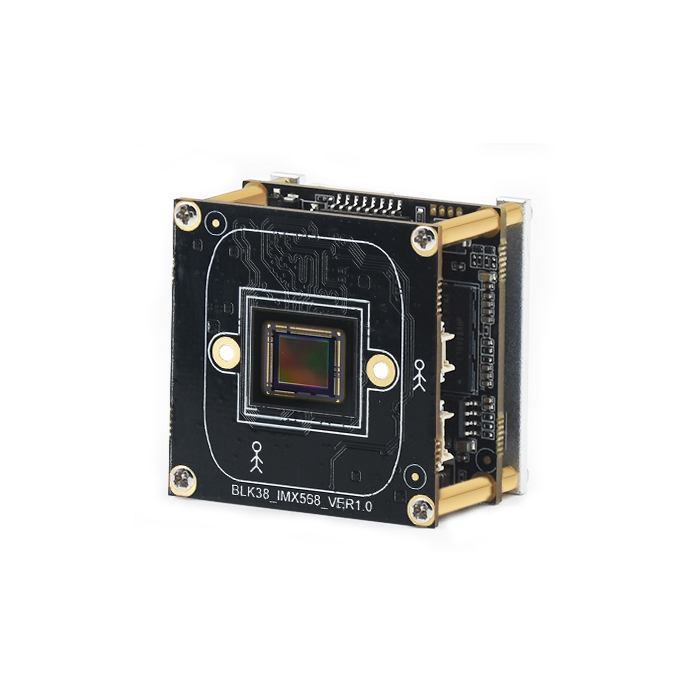

| Image sensor | 5MP 1/1.8 IMX568 Global exposure CMOS sensor, color: 0.001Lux@F1.2 Black and white: 0.001Lux@F1.2 |
| Watchdog | System watchdog |
| WDR | 120dB |
| Image parameters | |
| Main stream | 30fps@ (2448*2048, 2296*1920, 2048*1712, 1920*1080) |
| Subcode stream | 30fps@ (704*576, 640*480) |
| Third stream | 30fps@ (704*576, 640*480, 640*352, 320*240) |
| Video compression standard | H.265+/H.265/H.264 |
| Video compression bitrate | 512 Kbps~32 Mbps |
| white balance | Automatic/Manual/One time White Balance |
| Electronic shutter | 1/12 second to 1/100000 second |
| Noise reduction | Support 3D/2D noise reduction |
| WDR | Support digital wide dynamic range |
| Auto Iris | Support DC IRIS automatic aperture |
| AIISP | Support AISP image enhancement |
| Image function | Support BLC, HLC, Defog, anti-flicker, lens correction, mirroring, flipping, gain and other functions |
| Audio | |
| Audio Interface | 1-channel input, supporting microphone or microphone input; 1 output, supports connecting headphones or amplifiers |
| Audio Compression | G711U / G711A / AAC-LC |
| Network | |
| Simultaneously preview the number of routes | Maximum 12CH |
| Network protocol | CGI, HTTP, HTTPS, GB28181, SIP, RTMP, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket; Support standard protocols such as ONVIF |
| Browser |
Preview using plugins: IE10, IE11 Preview without plugins: Edge, Chrome, Firefox, etc |

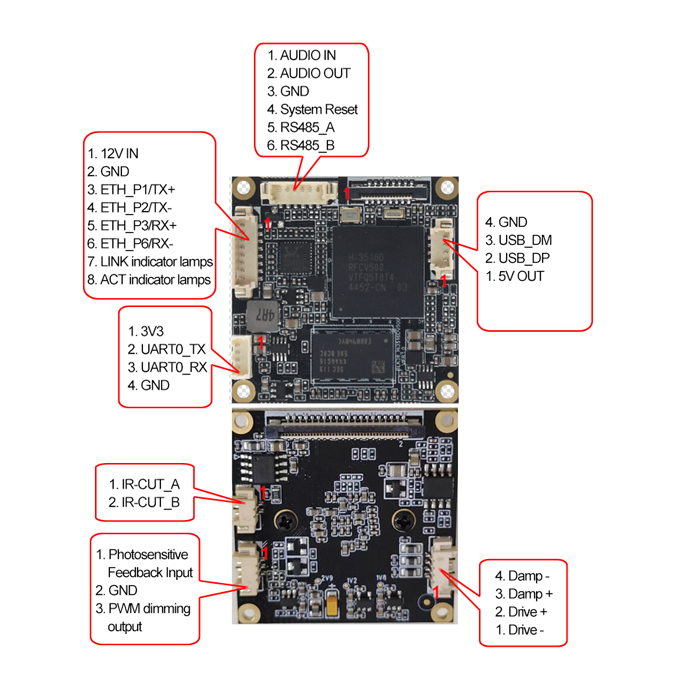

| Auxiliary interface | |
| Network | 1 RJ45 Ethernet port, 10 M/100 M adaptive |
| Audio | 1-channel input: supports microphone or microphone input; 1-channel output: supports connecting headphones or amplifiers |
| Lamp board control | Supports photosensitive detection input and PWM dimming |
| USB port | 1 USB 2.0 interface (5V power supply), supporting expansion of 4G/WiFi (dual band)/storage functions/UVC |
| General | |
| Size | 38*38*10.8mm, 38 Double Plate Structure |
| weight | 10g |
| Operation temperature | -20ºC~+60ºC |
| Power supply | DC12V, 2.9W(MAX) |
