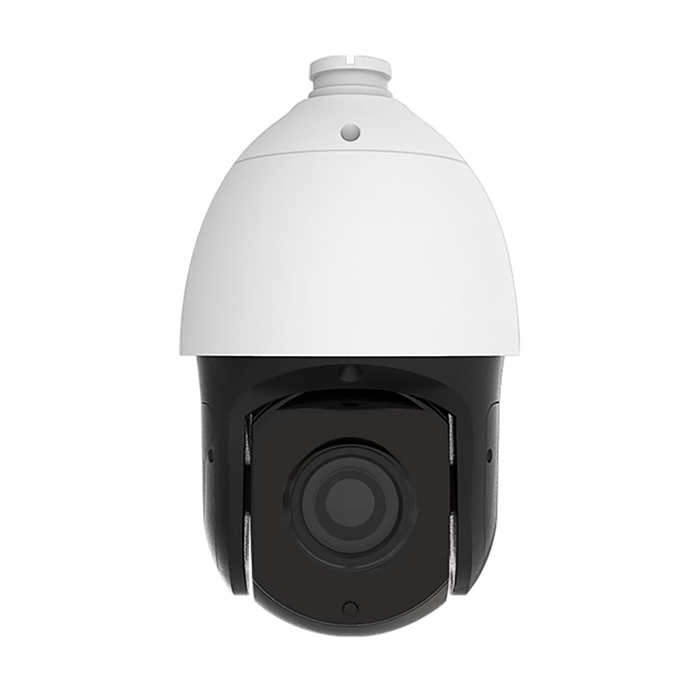

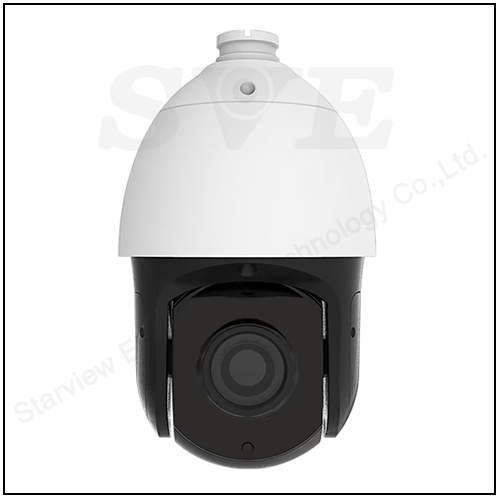

6" 33X 4.5-148.5mm 8MP (3840*2160) 3D Dnr, Dwdr, Blc, Hlc, Defog
Ai Vehicle/ Human Detection Poe IP PTZ Camera
- 8MP (3840*2160) 25fps.
- 1/2.7"8MP Low Lux progressive scan CMOS
- Color: 0.01Lux@ (F1.65, AGC ON), B/W: 0Lux with IR.
- Support 4.5-148.5mm optical lens.
- H.264/H.265 codec supported, multiple streaming
- Support 3D DNR, DWDR, BLC, HLC, Defog
- Support Motion Detection, Human/Vehicle Intrusion Alarm, Line Cross, Loitering, Area Enter/Leave, Facial Recognition, Facial Capture,People Count Statistics, Hard Hat Detection, and Crowd Detection
- Support 1ch alarm output, 1ch alarm input
- Support 1ch audio input, 1ch audio output and 1ch built-in speaker
- Support Local TF Storage (Max. up to 512GB)
- IR Light Range: 200 Meters
| Model | |
| CAMERA | |
| System Structure |
Embedded Linux Design, watchdog, Support RTC real time clock Dual Core Cortex-A7@950MHz+2Gb RAM + 1Tops NPU+FLASH: 2Gb ROM |
| Image Sensor | 1/2.7" 8MP Low Lux Progressive Scan CMOS |
| Dynamic Range | HDR Mode: >100dB, Linear Mode: 79dB |
| SNR | 38.8dB |
| Min. Illumination | Color: 0.01Lux@ (F1.65, AGC ON), B/W: 0Lux with IR |
| Shutter | (1/10 ~ 1/20000) Support auto and manual electronic shutter |
| Day/Night Switch | Auto/Manual/Schedule |
| BLC | Support, auto adjust |
| 3D DNR | Support, auto adjust |
| LENS | |
| Focal | 4.5mm-148.5mm |
| Focus Mode | Auto / Manual |
| Aperture | Max. F1.65 |
| FOV | Wide-Tele; Horizontal: 61.04° ~2.36°, Vertical: 36.89°~1.33°, Diagonal: 68.03°~2.69° |
| PTZ | |
| Pan Range | Horizontal 360° continuous rotate |
| Tilt Range | -15°~90°(auto flip) |
| Pan Speed | 0.1°-1600°/s Speed can be configured |
| Tilt Speed | 0.1°-80°/s Speed can be configured |
| Proportional Pan | Support |
| Preset | 255 |
| Patrol Scan | 16 patrols |
| Power Off Memory | Support |
| ILLUMINATOR | |
| Supplement Light | 4pcs Laser Lights + 6pcs high power IR Lights |
| Control Type | 2 groups of High Power IR lights + 2 groups of laser lights auto trigger by zoom ratio |
| IR Wavelength | 850nm |
| Supplement Light Range | IR: ≤200m |
| VIDEO | |
| Video Compression | H.264 / H.265 |
| H.264 Type | Baseline Profile/Main profile/High profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR(50kbps~12288kbps) |
| ROI | Support 1 self-configure ROI zone; Mainstream/Substream |
| Privacy Mask | Max. support 4 rectangle mask areas |
| Max. Resolution | 3840*2160@22fps |
| Main Stream | 25fps (3840*2160, 2880*1620, 2560*1440, 1920*1080, 1280*720, 720*576, 640*360) |
| Sub Stream | 1280*720, 720*576, 640*360 |
| Picture Parameter Config | Brightness, Contrast, HUE, Saturation, Sharpness can be configured |
| AUDIO | |
| Audio Compression | G.711ulaw/G.711alaw/PCM |
| Audio Bit Rate | 64 Kbps(G.711ulaw/G.711alaw) |
| Audio Sampling Rate | 8 kHz |
| Audio 3A | Acoustic Echo Cancel (AEC) / Automatic Noise Suppression(ANS) / Automatic Level Control (ALC) |
| Audio Language | Built-in Chinese/English audio alarm sound |
| NETWORK | |
| Protocol | TCP/IP, UDP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, SSL/TLS, FTP, DNS, DDNS, PPPoE, 802.1X, IPv4, IPv6, QoS, WebSocket |
| Interface Protocol | ONVIF, MWP |
| Security | Support username / password change, ONVIF password authentication, RTSP password authentication, IP address filtering |
| OSD | Title, date and time OSD, Support 7 lines self-defined OSD |
| System Upgrade | Support CMS, Web and online OTA upgrade |
| IMAGE ENHANCEMENT | |
| Image Rotation | Support image mirror and flip |
| Corridor Mode | N/A |
| AI ISP | Support AI ISP |
| Anti-Flickering | Support anti-flicker function for complex light environment |
| Network Disconnect | Support 3 network mode (disconnect reboot / disconnect does not reboot / offline mode) |
| Web Language | Built-in multiple language |
| INTERFACE | |
| Power Interface | 1pc power interface;DC 12V-DC 24V Self adaptive |
| Network Interface | RJ45 Network; 10M/100M adaptive |
| On-board Storage | Built-in Micro SD Card Slot (Max. support 512GB) |
| Audio Input | 1ch audio input (RCA) |
| Audio Output | built-in speaker + 1ch audio output (RCA) |
| Alarm Input | 1ch alarm input |
| Alarm Output | 1ch alarm output |
| Normal Event | |
| Alarm Linkage | Motion Detection |
| BEHAVIOUR ANAYLITICS | |
| AI Event | Human/Vehicle Intrusion Alarm |
| Behaviou r Analytics (Enable 1 at a time) | |
| AI Type | Intrusion # Line Cross # Loitering / Enter/Leave |
| Trigger Type | Human/Vehicle # Human # Human |
| Detect Speed | ≤200ms |
| Sensitivity | 5 level |
| Detect Areas | Max. 4 areas # 1 area # 1 area |
| Linkage | Sound / Light / Alarm Output / Platform |
| Others | Each area support independent alarm linkage # Line Cross Direction # Loitering Time Setup |
| AI ALGORITHMS (Enable 1 at a time) | |
| Face Capture |
Face Picture/Half body picture optional Support Sound / Light / Alarm Output / Platform |
| Facial Recognition |
Face Picture/Half body picture optional Blacklist/Whitelist Support Sound / Light / Alarm Output / Platform |
| Absent Alarm |
Full Screen Picture Can set time duration that allowed to leave Support Sound / Light / Alarm Output / Platform |
| Crowd Detection |
Full Screen Picture Can set over-load people threshold Support Sound / Light / Alarm Output / Platform |
| People Count Statistics | Can generate People Count Statistics Bar/Line Chart |
| OTHERS | |
| Operational Temperature/Humidity | -30ºC~65ºC; ≤95%RH |
| Power Supply | 12VDC ~ 24VAC Adaptive / Hi-Poe |
| Materials | Aluminium |
| Protection | IP66 |

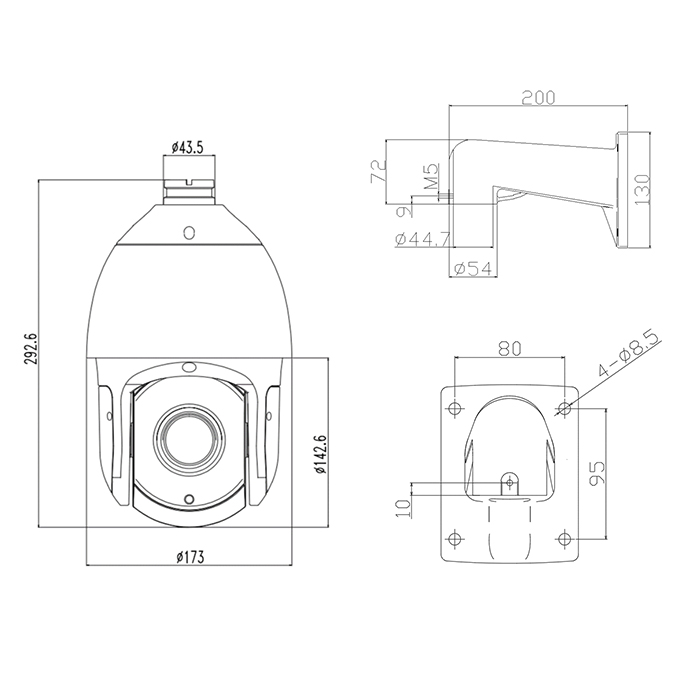

| Dimension | Φ173mm*293mm |
