MainFeatures

High-speed transmission interface

Utilizing USB3.1 Gen1/Gen2 (Type-C)ports, it provides bandwidth of up to 10Gbps,ensuring uncompressed,zero-latency transmission of 4Kp60 video.



True plug-and-play

Fully compliant with UVC/UAC standards,no additional drivers required,just connect to the computer and it can be used immediately.



Independent hardware processing

Built-in high-performance video processing chip,all encoding and decoding tasks are completed independently by the capture card.



Convenient Power Supply Design

No additional power adapter purchase is required; simply power the capture card directly through the USB-C interface.



Extensive System and Software Compatibility

Cross-platform support for major operating systems such as Windows,macOS,Linux,and Android;perfectly compatible with video capture and editing software like OBS,VLC,and Premiere Pro.

Host Interface	USB3.1 Gen1/Gen2 (Type-C), bandwidth: 10Gbps

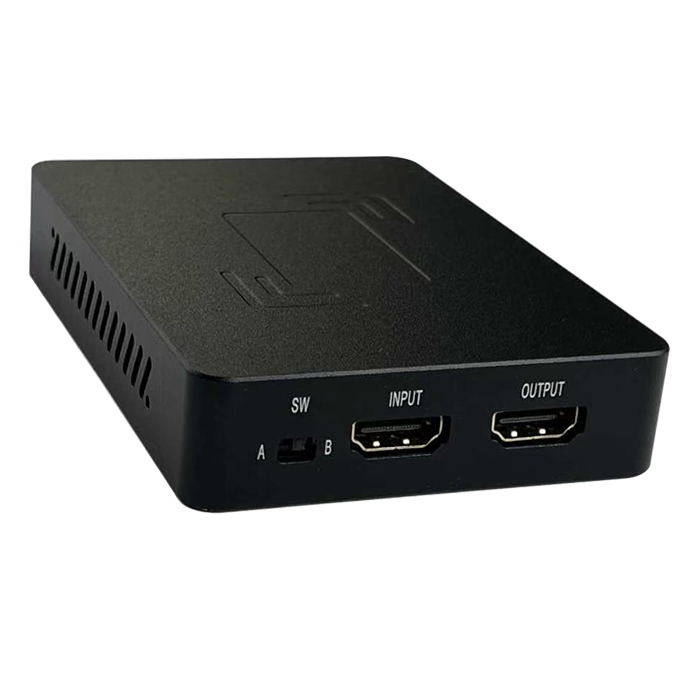

HDMI input/Loop-output	Compatible with HDMI 1.4/2.0 standards, supporting up to 4096x2160@60fps.

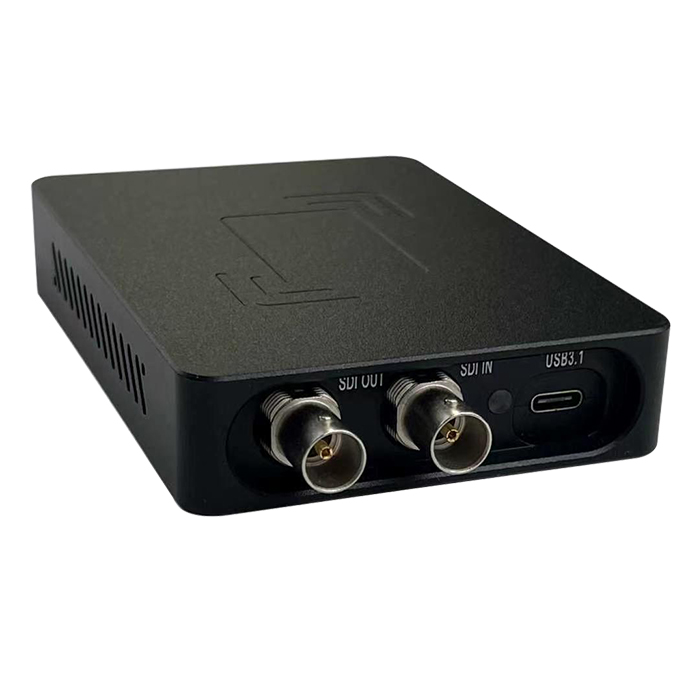

12G SDI input/Loop-output	Supports SD/HD/3G/6G/12G SDI, complies with SMPTE standards, with a maximum support of 4096x2160@60fps.
Capture resolution	Single channel: 4096×2160@60fps; Dual channel: 4096×2160@30fps; Quad-Channel: 1920×1080@60fps
High Frame Rate Support	Supports 1080p@120fps capture/loop/conversion output
multi-stream output	supports 1 channel input, 4 channel 1080p60 output
audio and video formats	video: YUY2,I420,NV12; Audio: LPCM (8 channels/48KHz/16bit)
Image adjustment	Supports adjustments for brightness, contrast, hue and saturation
System and upgrades	Independent hardware processing, does not occupy host CPU; USB-C by powered, supports online firmware upgrades
