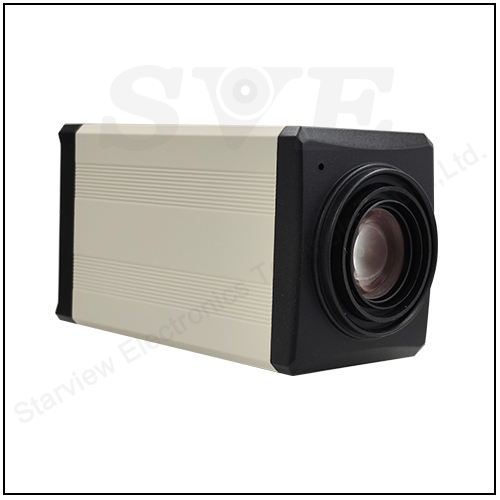

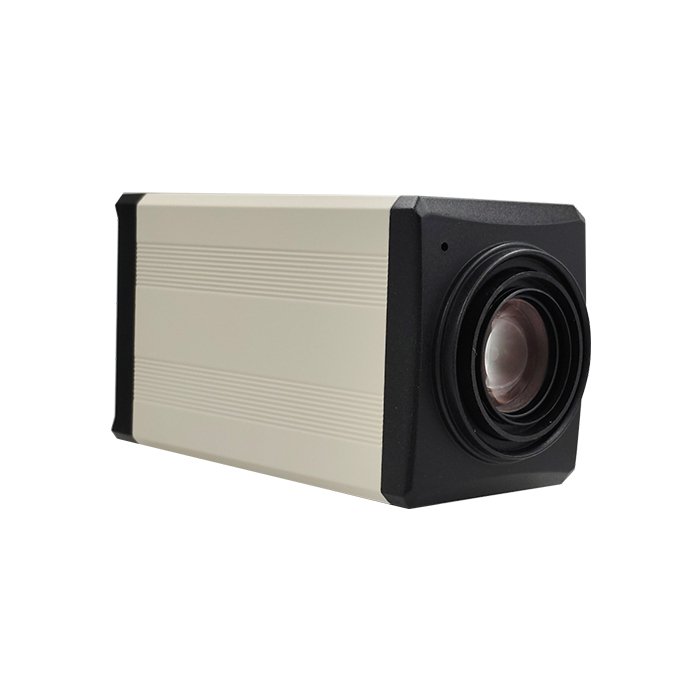

5MP 20X Optical Zoom Human Detection Onvif Poe Box

Model IP20-5MP
SOC SSC377D
Image sensor 5MP, 1/3" CMOS
Video processing H. 265+/H.265/H.264 video encoding, support adjustable bitstreams of 0.1M-4Mbps; Support frame rate adjustable from 1 to 25 frames per second;
Main stream 25FPS@(2592×1944,2560×1440,2304×1296,1920×1080,1280×720);
Sub-stream D1,VGA,640×360;





























Product Features
  1. Sensor: 1/3 inch 5MP CMOS;
  2. H.265+, H.265, H.264 encoding
  3. Support soft photosensitivity: dual-light mode, full-color mode, infrared mode;
  4. Support intelligent analysis: precise human shape detection, area detection, and tripwire detection;
  5. Support image flipping, supports digital wide dynamic range;
  6. Support Onvif;
  7. Support SDK(WINDOWS, Android ,Linux)development kit
Power On Self-Test
Power: POE/DC12V power adapter for the camera;
Self-test of the camera: After startup, the zoom lens first retracts and then extends. The lens returns to the maximum wide-angle position, where the device is typically recognized. Indicates that the self-test has been completed.

Network video output
Support RTSP/RTMP and enables configuration via browser login
Default IP address: 192.168.0.123
User name: admin, password: 123456
Image resolution:2592*1944/25fps

Specification:
Model IP20-5MP
SOC SSC377D
Image sensor 5MP, 1/3" CMOS
Video processing H. 265+/H.265/H.264 video encoding, support adjustable bitstreams of 0.1M-4Mbps; Support frame rate adjustable from 1 to 25 frames per second;
Main stream 25FPS@(2592×1944,2560×1440,2304×1296,1920×1080,1280×720);
Sub-stream D1,VGA,640×360;
IRCUT interface Integration IRCUT switching circuit, Auto/External Control/Manual/Timed to control IRCUT day and night mode
Lens 4.7-94mm  20X optical zoom
Control interface RS485
Control protocol PELCO-D  9600  1

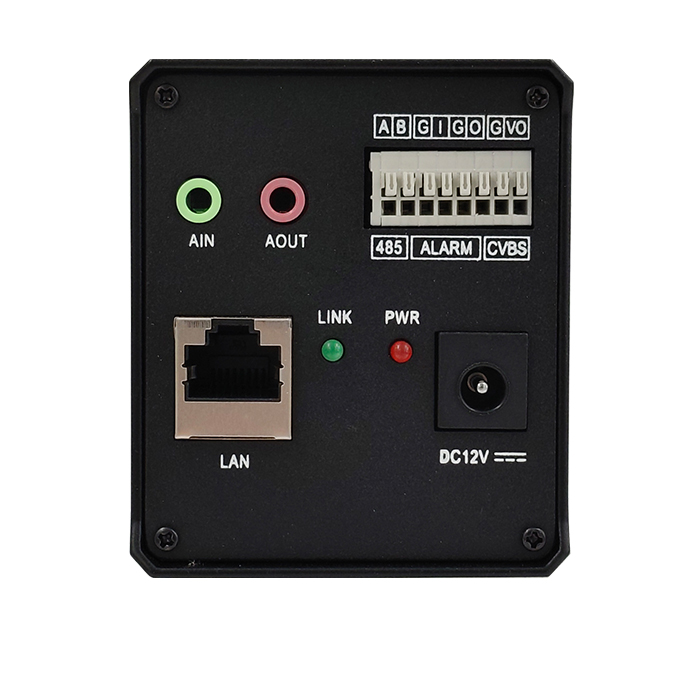

Network interface 1 RJ45 Ethernet interface, 10/100M adaptive;
Light board interface PWM IR, PWM warm light
Reliability Comprehensive lightning protection for power supply and network
Other feature Support OSD,precise human-shaped detection, dual light source alarm;
Network Protocol HTTP / RTSP / DHCP / NTP / ONVIF network protocol
Power DC12V, Max:250mA / POE

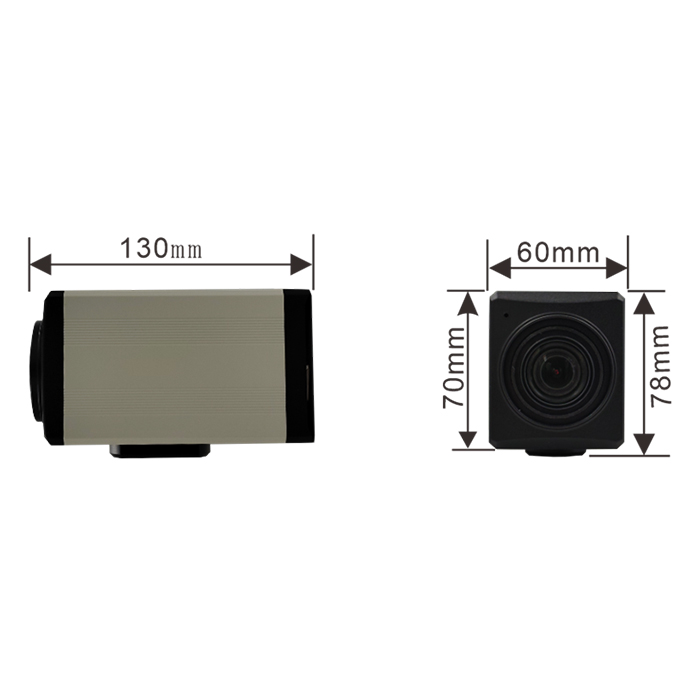

Size 130*60*70mm
