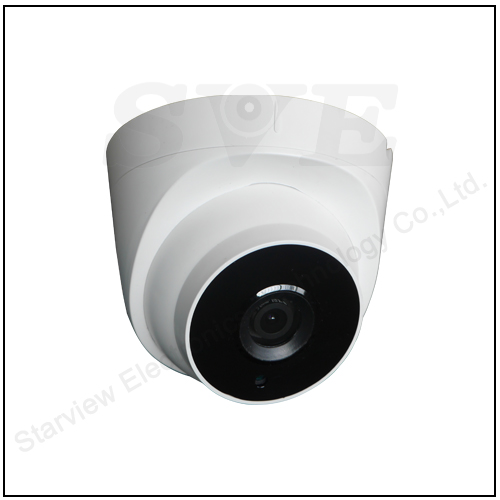

1080P AHD/TVI/CVI dome camera
- 1/2.8" Sony 323 CMOS Sensor
- 25fps/30fps@1920*1080HD video output
- AHD/TVI/CVI/CVBS video output
- BNC interface,Support Over 500m via 75-3 coaxial cable;
- High efficiency, long-distance, real-time transmission
- 2.8mm~12mm vari-focal Lens(Optional)
| Model | SV-D30S20TAC |
| VIDEO | |
| Imaging Device | 1/2.8" Sony 323 CMOS Sensor |
| Effective Pixels | 1920(H)*1080(V) |
| Video Frame Rate | PAL:25FPS ; NTSC:30FPS |
| Sync System | Internal Synchronization |
| Min.Illumination | Color 0.01Lux@F1.2, 0Lux IR on |
| S/N(Y signal) | 50dB |
| Video Output | BNC: AHD/TVI/CVI/CVBS video output |
| Transmission distance | Up to 500 meters loss less transmission with 75-3 coax |
| Day&Night | Auto ICR cut |
| Backlight | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Lens | |
| Focal Length | 2.8mm~12mm vari-focal Lens(Optional) |
| Other | |
| Operation Tem. | -10C~ +50C RH95% MAX |
| Storage Tem. | -20C~+60C RH95% MAX |
| weight | 0.3KG |
| ELECTRICAL | |
| Input Voltage | DC 12V10% |
| Power Consumption | DC12V/100Ma |
