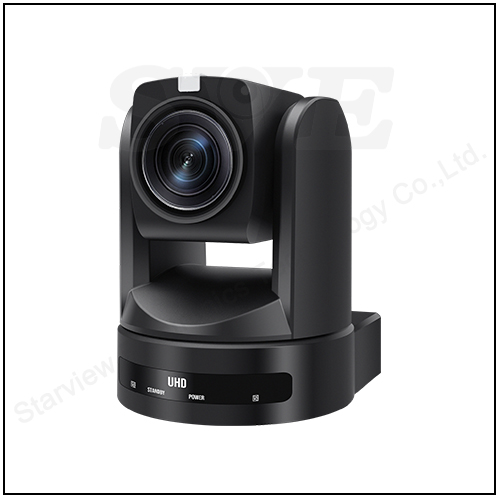

30X Zoom 4K60fps Ndi Optional HDMI/USB/12g SDI/Network PTZ Camera
Key Features
Interface diagram
- 1/1.8" 4K(3840*2160)@60fps Exmor R CMOS Sensor
- 30X (6.5~195mm) Optical Zoom, 12X Digital Zoom
- 2D/3D noise reduction algorithm, wide dynamic range
- Horizontal rotation: ±170º, Vertical rotation: -30° ~ +90°, Preset: 255
- HDMI:4K60/50/30/25, 1080P60/50/30/25, 720P60/50;
- Network: 4K60/50/30/25, 1080P30/25, 720P30/25;
- USB3.0: 4K30/25, 1080P30/25, 720P30/25
- RS232, RS485, IP external control interface;
- 12G-SDI: 4K60/50/30/25, 1080P30/25, 720P30/25;
- Network protocols: IPv4, TCP, UDP, HTTP,NTP,DNS, DHCP,ARP, RTSP, RTP,RTCP, RTMP, NDI(Optional),ONVIF,VISCA OVER IP;
- Control interface: RS422 is compatible with RS485, RS232-IN, and RS232-OUT. The RS232 interface supports cascading
- With multi-function infrared remote control, easy to operate.
- Supports VISCA, PELCO-D, and PELCO-P protocols, and supports automatic identification protocols.
- Support auto-tracking, Defog, HDMI audio and video output simultaneously, Image freeze, Preset position cruise,
- Work on Zoom, Facebook, Youtube, SKype, OBS, Potplyer,
| Model | |
| Model No. | SVN-4K60U30PW |
| Camera | |
| Signal system | 3840*2160P60/50/30/25, 1080P60/50/30/25, 720P60/50 |
| Image Sensor | 1/1.8"8MP Exmor R CMOS Sensor |
| Scanning mode | progressive |
| Minimum illumination | Supports ultra-low illumination, 0.1Lux@F1.8 (color) |
| Shutters | 1/30s ~ 1/10000s |
| White balance | Automatic, Indoor, Outdoor, Manual |
| BLC | Support |
| Digital noise reduction | 2D&3D Digital noise reduction |
| Signal-to-noise ratio | ≥52dB |
| Lens | 30X Optical zoom, F1.65-F3.8, f=5.33-110mm |
| Digital zoom | 12X |
| HOV | 59.2°(Wide) ~ 1.98°(Far) |
| Focal length | F1.8-F3.6, f=6.5-195mm |
| Horizontal rotation | ±170º |
| Vertical rotation | -30° ~ +90° |
| Horizontal rotation speed | 1 º/s ~ 100 º/s |
| Vertical rotation speed | 1 º/s ~ 60 º/s |
| Mirror | Support Horizontal, Vertical |
| Preset | 255 |
| Preset Accuracy | ±0.1° |
| USB interface | |
| Video compression | YUV/H.264/ MJPEG |
| Resolution & Frame Rate |
H.264:( 3840X2160, 1920×1080, 1280×720, 800*600, 640*480, 704*576, 320*240) 30fps MJPEG:( 3840X2160,1920×1080, 1280×720,800*600,640*480,704*576,320*240) 30fps YUV: (1920×1080,1280×720) 30fps |
| Protocol | UVC1.1 UAC1.0 |
| Control | Support zoom, pan-tilt control, adjustable parameters including brightness, contrast, hue, saturation, sharpness, exposure, focusing. |
| USB upgrade | Support USB upgrade |
| I/O interface | |
| HDMI 2.0 | Max 4K60 |
| 12G-SDI | Max 4K60 |
| USB 3.0 | Max 4K30 |
| Network Encoding | H.265/H.264/MJPEG |
| Network protocol | IPv4, TCP, UDP, HTTP, NTP, DNS, DHCP, RTSP, RTP, RTCP, RTMP, NDI(Optional),ONVIF, VISCA OVER IP |
| Communication interface |
1 CH RS-232 IN, max. distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 CH RS-422, max. distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
| Audio interface | Line in X1 |
| Power supply | JEITA Type (DC IN 12V) HEC3800 |
| General | |
| Input voltage | AC110V-AC220V to DC12V/1.5A |
| Current | DC12V(DC11.5-DC12.5V) |
| Operating temperature | 0°C ~+45°C |
| Storage temperature | -10°C ~ +60°C |
| Power consumption | 24W(Max) |
| Size | 178*200*236.5mm |
| Weight (net) | 4KG(3KG) |

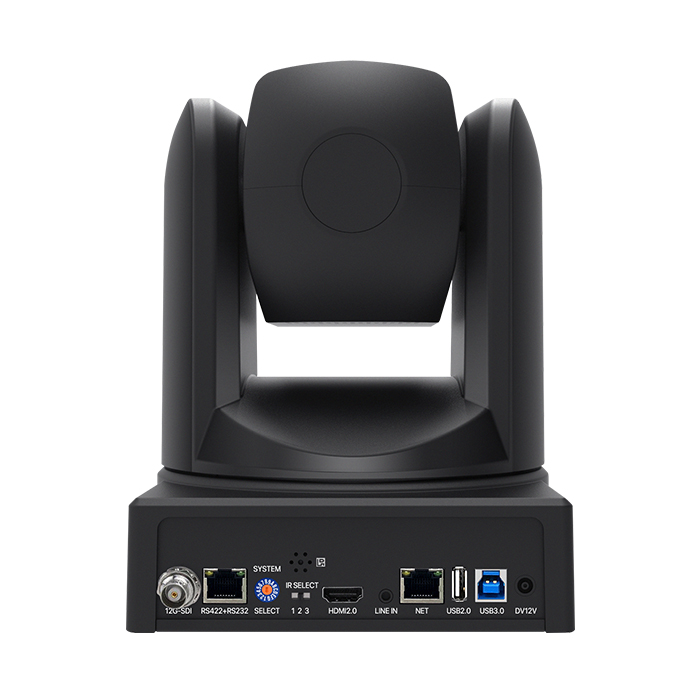

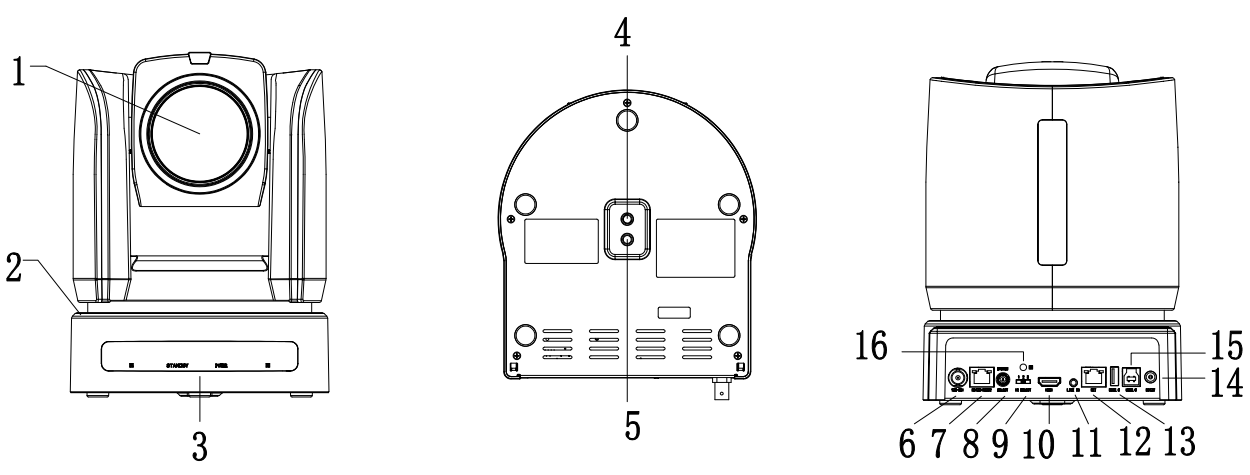

| 1. Lens | 6. 12G-SDI Interface | 11. LINE IN Interface |
| 2. Camera | 7. RS232/RS485 Interface | 12. Network Interface |
|
3. Remote Control Receiver, Power Indicator |
8. Video format selection switch | 13. USB2.0 Interface(Reserve) |
| 4. Mounting screw holes | 9. Infrared address jumper switch | 14. DC12V Interface |
| 5. Mounting Positioning Holes | 10. HDMI Interface | 15. USB3.0 Interface |
| 16. Infrared receiver |

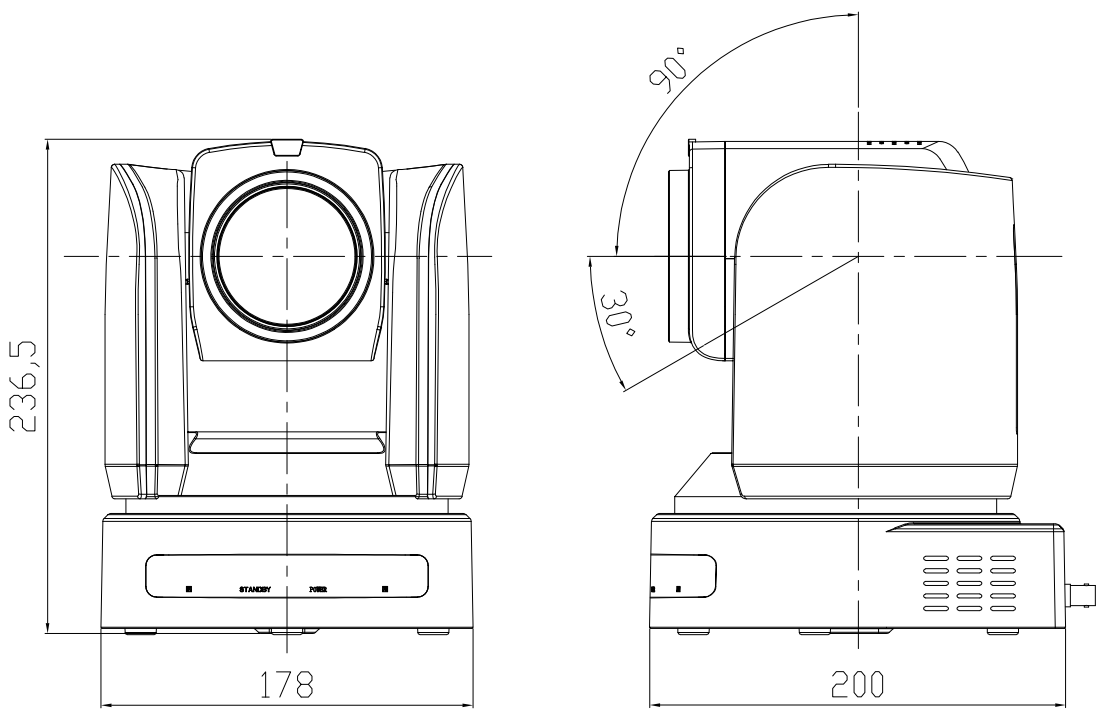

Size(mm)
