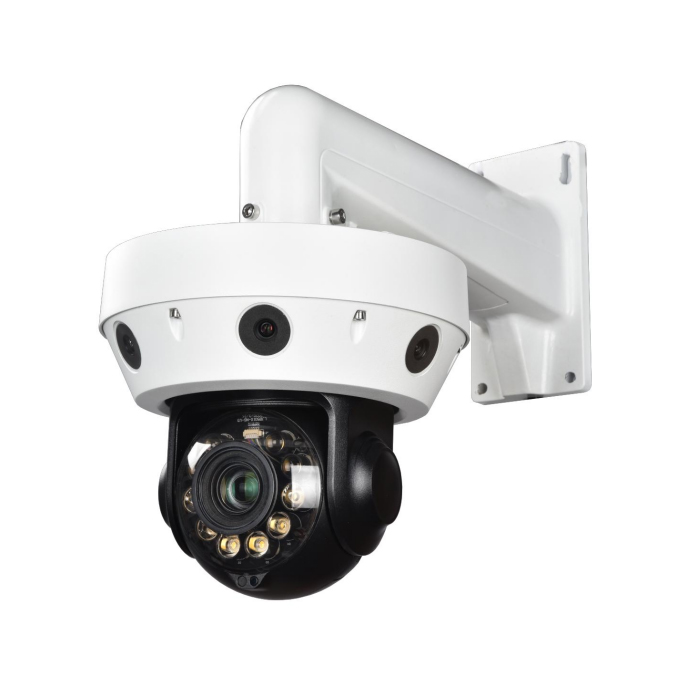

5MP IP Panoramic Human Detection Alert Tracking PTZ Camera
Product Description
- Intelligent analysis +panoramic + autotracking
- 1 device, 1 Cable, 5 images, 5MP*5=25MP
- Solution: 5 X SigmaStar377+GC4653(Starlight low illumination)
- Full Color Night Vision
- Fixed lens camera: 6mm/F1.0; Zoom camera: 4.7-94mm (20X optical zoom)
- Rotation speed: 240°/S (High speed dome)
- Built-in Microphone
- Mobile APP for free
Humanoid Recognition intrusion detection based on AI intelligent analysis.
Warning line, warning area linkage trigger tracking and zooming
4 fixed-focus cameras for 240° panoramic monitoring, 20X zoom PTZ camera Magnified image to detect target details for global detail monitoring
Support auto tracking function.
Precision motor drive, professional grade subdivision circuit, support high precision and smooth motion positioning
IP66 waterproof
Key Features
| Model | |
| Model No. | SV509QQLD-NG-BF46D |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.001Lux, B/W: 0.001Lux,0 Lux with IR (Starlight illumination) |
| 3D NDR | Support |
| WDR | Support |
| Electronic Shutter | AUTO |
| Day Night Mode | AUTO ICR Color to B/W |
| Fixed lens camera | 6mm/F1.0 |
| Zoom cam Focal Length | 20X Optical zoom, 4.7- 94mm |
| Zoom Speed | Approx.4s (Optical Wide ~ Tele) |
| Panoramic field of view | 240° |
| PTZ Angle of View | 52°-2.9° (Wide-Tele) |
| Resolution | 2560(H)x2048(V) |
| Main Stream | 2592*1944@25fps, 2500*1600@25fps, 2048x1536@25 fps |
| Sub Stream | D1@30fps |
| Video Compression | H.265+/H.265/ H.264 |
| Network protocol | HTTP, TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, PPTP |
| Interface protocol | ONVIF |
| APP | AC18Pro / Video-link |
| PTZ Control | |
| Warm Light Distance | 100M |
| Horizontal Range | 0°~360° continuously |
| Vertical Range | -5°~90° |
| Horizontal Speed | 0.05°~240°/s |
| Vertical Speed | 0.05°~200°/s |
| Max Speed | 240°/S |
| Preset | 256 |
| Patrol scan | Support |
| L/R Scan | 1pc |
| Horizontal Scan | 1pc |
| Power-off memory | Support |
| PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
| Watch position | Support |
| General | |
| Power | DC12V/5A |
| Consumption | <35W |
| Mounting Wall | mounting or lifting |
| Work environment | temperature: -20~60°C;humidity<90% |
| Protection level | IP66 waterproof,6000V lightning protection |
| Packaging Information | |
| Single package size | 29*29*38m |
| 4 package size | 61*61*40cm |
| Single gross weight | 4.2KG |
| 4 package gross weight | 17KG |
