6MP 2.8mm/36X Bullet & PTZ Dual Lens Wi-Fi Camera
6MP 2.8MM/36X Bullet&PTZ Dual Lens Wi-Fi Camera
1PCS 36X PTZ 4.7-94MM lens, 1PCS 2.8MM lens, dual screen
High quality image with 6MP, 2PCS CMOS*1/2.9"CMOS sensor and F1.6 large aperture lens
6MP (2304*2592)@ 12fps
Ultra 265, H.265, H.264, MJPEG
Colorhunter technology ensures 24-hour full-color images
Clear imaging against strong back light due to 52 dB WDR technology
Support intelligent analysis: pedestrian detection, vehicle type detection, area detection, tripwire detection
Support Onvif,Support all NVR docking
Built-in shielded microphone,High sensitivity pickup
Built-in high-decibel speaker
Audio alarm to warn intruders off
10PCS Double light LED(2PCS laser Infrared+4PCS Infrared+4PCS White light)
White light up to 30 m, IR light up to 50m,laser IR light up to 80m
Supports 128 GB Micro SD card
Water and dust resistant (IP66)
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n.
Specifications
| Model NO. | SVN-VZ10D-6M36X |
| Camera | |
| Image Sensor | 2PCS*1/2.9" Starvis Back-illuminated CMOS sensor |
| Resolution | 6MP |
| Effective Pixels | 2304(H)*2592(V) |
| Compression | H.265 AI video coding compression |
| Audio Compression | G711A/U,AAC, MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | 1/50 (1/60) second to 1/10000 second |
| Minimun Illumination | Color: 0.01 Lux @ (F1.2, AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| S/N Ratio | 52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| WDR | Support 2D/3D noise reduction |
| Lens | |
| Zoom lens | 1PCS 4.7-94.5MM, 36X optical zoom |
| Fixed lens | 1PCS 2.8MM |
| Aperture | F1.6 |
| Pixels | 6MP |
| PTZ | |
| Pan/Tilt Range | Pan: 335° ; Tilt: 0° to +85° |
| Manual Control Speed | Pan: 0.1°-30°/s ;Tilt: 0.1°-30°/s |
| Preset Patrol | 3 patrols, up to 16 presets for each patrol |
| Preset | 48PCS |
| Power-off Memory | Yes |
| Night Vision | |
| Supplement Light | 10PCS Double light LED(2PCS laser Infrared+4PCS Infrared+4PCS White light) |
| Light Distance | White light up to 30 m, IR light up to 50m,laser IR light up to 80m |
| Light Status | Auto Control |
| Light Power On | Smart, Manual & Timed mode |
| Network | |
| Ethernet | 1 RJ45 Ethernet interface, 10/100M adaptive |
| WiFi | IEEE802.11b, 802.11g, 802.11n |
| Frequency range | 2.4 GHz ~ 2.4835 GHz |
| ONVIF | Support ONVIF |
| P2P | YES |
| Main Stream | 2304*2592@12fps |
| Sub Stream | 640*720@12fps |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iOS, Android |
| AI Function | |
| Intelligent Analysis | Intrusion Detetion(based on human and Vehicle Detection) |
| Camera Features | |
| Day/Night | Black and white, color (black and white to color, triggered by human detection) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance |
| Full Color | Support |
| Corridor Pattern | Support |
| Motion Detection | Support(support enable the detection based on human movement only) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web/TF caed |
| Interface | |
| Audio Input | Built in Mic |
| Audio Output | Built-in speaker |
| SD Card Slot | Built-in Internal SD card slot (Max 128GB) |
| General | |
| Housing | Metal , IP66 |
| Operation Temperature | -20ºC ~ +60ºC RH95% Max |
| Storage Temperature | -20ºC ~ +60ºC RH95% Max |
| Power Source | DC12V±10%, 1000mA |

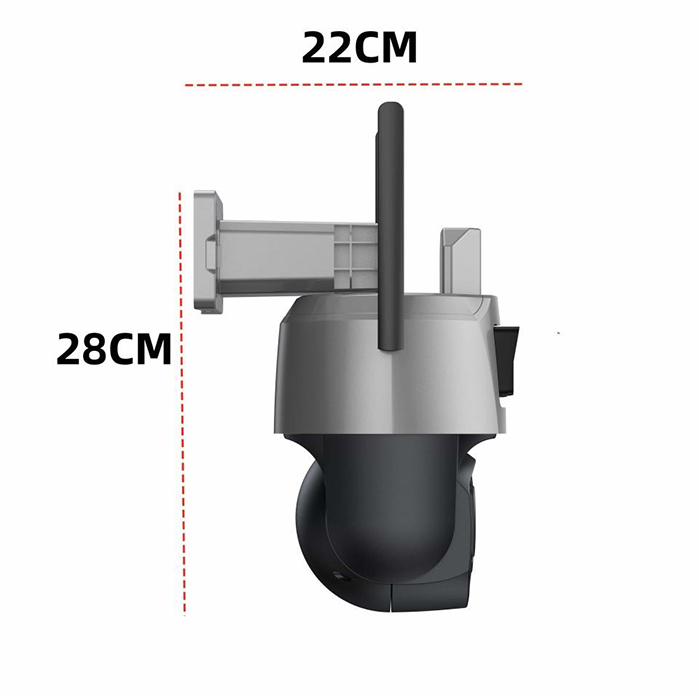

| Dimension | 280*220mm |
| Weight | 800g |
