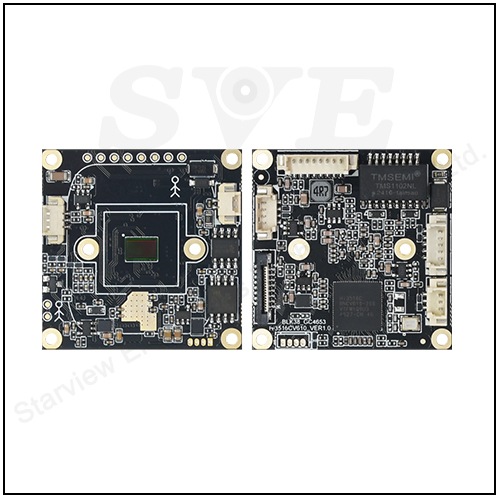

4MP Gc4653 CMOS Blh/Hlc 3D-Dnr Onvif IP Camera Module
Key Features
- 1/2.8" 4MP GC4653 CMOS Sensor..
- H. 265+, H.265, H.264 encoding
- Supports mirroring, flipping; BLH, HLC, 3DNR, Defog; Digital WDR
- Supports infrared/full-color/dual light modes, PWM dimming
- Standard ONVIF, GB28181, HIK, DH and other proprietary protocols
- Provide SDK development kit, support secondary development, support CGI, HTTP, WEBSOCK protocol docking
- Intelligent functions: motion detection, area intrusion, intelligent PTZ, departure alarm
- Google Core Browser without plugins
- Support UVC
Technical parameters
| Model | SVN-HS463L |
| Camera | |
| DSP | Hi3516CV610, ARM Cortex-A7 MP2@950MHz Dual-Core |
| DDR | 16MB |
| Flash | 128MB |
| Image sensor | 4MP 1/2.8 GC4653 CMOS sensor, color: 0.0001Lux@F1.0; Black and white: 0Lux@IR NO |
| Watchdog | System watchdog |
| WDR | 80dB |
| Image parameters | |
| Main stream | 25 fps@ (2560*1440)30 fps@ (1920*1080) |
| Subcode stream | 30 fps@ (704*576, 640*480) |
| Video compression standard | H.265+/H.265/H.264 |
| Video compression bitrate | 512 Kbps~10 Mbps |
| white balance | Automatic/Manual/Onetime White Balance |
| Electronic shutter | 1/12 second to 1/100000 second |
| Noise reduction | Support 3D/2D noise reduction |
| WDR | Support digital wide dynamic range |
| Image function | Support BLC, HLC, Defog, anti-flicker, lens correction, mirroring, flipping, gain and other functions |
| Audio | |
| Audio Interface | 1-channel input, supporting microphone or microphone input; 1 output, supports connecting headphones or amplifiers |
| Audio Compression | G711U / G711A / AAC-LC |
| Network | |
| Simultaneously preview the number of routes | Maximum 6CH |
| Network protocol | CGI, HTTP, HTTPS, GB28181, SIP, RTMP, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket; Support standard protocols such as ONVIF |
| Browser |
Preview using plugins: IE10, IE11 Preview without plugins: Edge, Chrome, Firefox, etc |
| Auxiliary interface | |
| Network | 1 RJ45 Ethernet port, 10 M/100 M adaptive |
| Audio | 1-channel input: supports microphone or microphone input; 1-channel output: supports connecting headphones or amplifiers |
| Lamp board control | Supports photosensitive detection input and PWM dimming |
| USB port | 1 USB 2.0 interface (5V power supply), supporting expansion of 4G/WiFi (dual band)/storage functions/UVC |
| General | |
| Size | 38*38*10.8mm, 38 Single board structure |
| weight | 10g |
| Operation temperature | -20ºC~+60ºC |
| Power supply | DC12V, 1.3W |
