20X Zoom 4K/30fps Ndi Optional HDMI/USB3.0 SDI Network Video Conference IP PTZ Camera
Key Features
Interface diagram
- 1/2.5” 4K(3840*2160)@30fps Exmor R CMOS Sensor
- 20X (5.5~110mm) Optical Zoom, 12X Digital Zoom
- 2D/3D noise reduction algorithm, wide dynamic range
- Pan&Tilt operates quietly and smoothly, with precise and rapid positioning and a maximum horizontal speed of 100 °/s;
- HDMI:4K30/25, 1080P60/50/30/25/23.98, 720P60/50;
- Network (HX2-NDI Optional): 4K/30/25, 1080P30/25, 720P30/25;
- USB3.0: 4K30/25, 1080P30/25, 720P30/25
- RS232, RS485, IP external control interface;
- 3G-SDI: 1080P60/50/30/25/23.98, 720P60/50;
- RS232, RS485, IP external control interface;
- With multi-function infrared remote control, easy to operate.
- Support auto-tracking
- Work on Zoom, Facebook, Youtube, SKype, OBS, Potplyer, AMCAP, etc.
| Model | |
| Model No. | SV-20X40EP4 |
| Camera | |
| Signal system | 3840*2160P30/25, 1080P60/50/30/25/23.98, 720P60/50 |
| Image Sensor | 1/2.5”8MP Exmor R CMOS Sensor |
| Scanning mode | progressive |
| Digital zoom | 12X |
| Minimum illumination | 0.1Lux@F1.6 (color), 0.01Lux@F1.6 (B&W) |
| Shutters | 1/30s ~ 1/10000s |
| White balance | Automatic, Indoor, Outdoor, Manual |
| BLC | Support |
| Digital noise reduction | 2D&3D Digital noise reduction |
| Signal-to-noise ratio | ≥52dB |
| HOV | 10x: 55º(Wide) ~ 5.5º(Far) f=5.7~57mm, 12x: 70.5°(Wide) ~ 5.9°(Far) f=4~48mm, 20x: 58°(Wide) ~ 2.9°(Far) f=5.5~110mm |
| Horizontal rotation | ±170º |
| Vertical rotation | -30° ~ +90° |
| Horizontal rotation speed | 1 º/s ~ 100 º/s |
| Vertical rotation speed | 1 º/s ~ 60 º/s |
| Mirror | Support Horizontal, Vertical |
| Preset | 255 |
| Preset Accuracy | ±0.1° |
| I/O interface | |
| HDMI 2.0 | Max 4K30 |
| USB 3.0 | Max 4K30 |
| 3G-SDI | Max 1080P60 |
| Network Encoding | H.265/H.264/MJPEG |
| Network protocol | IPv4, TCP, UDP, HTTP, NTP, DNS, DHCP, ARP, RTSP, RTP, RTCP, RTMP, NDI, ONVIF, VISCA OVER IP |
| Communication interface | 1 CH RS-232 IN, max. distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol, 1 CH RS-422, max. distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
| Power supply | JEITA Type (DC IN 12V) HEC3800 |
| General | |
| Input voltage | AC110V-AC220V to DC12V/1.5A |
| Current | DC12V(DC11.5-DC12.5V) |
| Operating temperature | 0°C ~+45°C |
| Storage temperature | -10°C ~ +60°C |
| Power consumption | 12W(Max) |

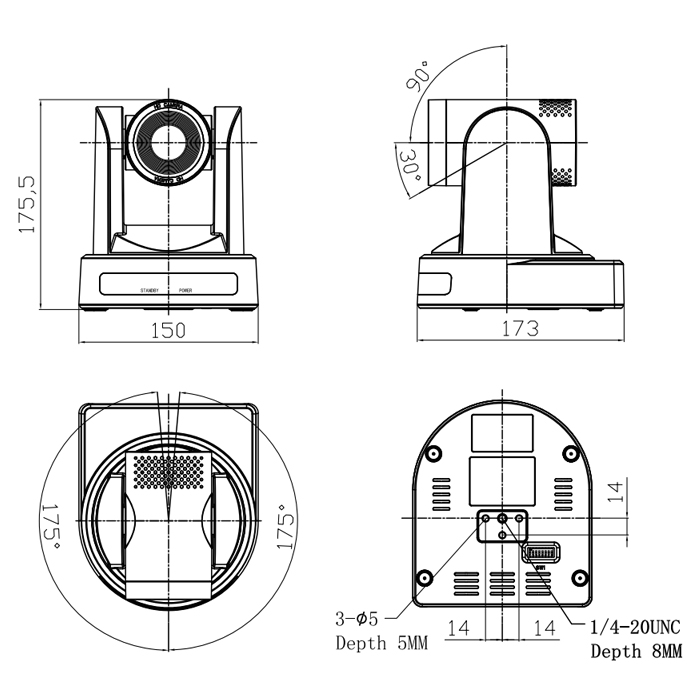

| Size | 173*150*175.5mm |
| Package Size | 355mm*270mm*255mm |
| Weight (net) | 2KG(1.2KG) |

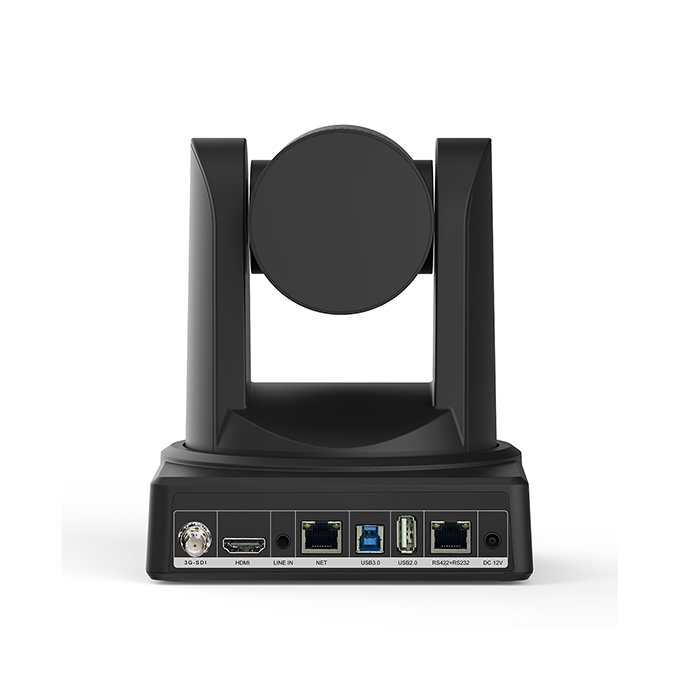

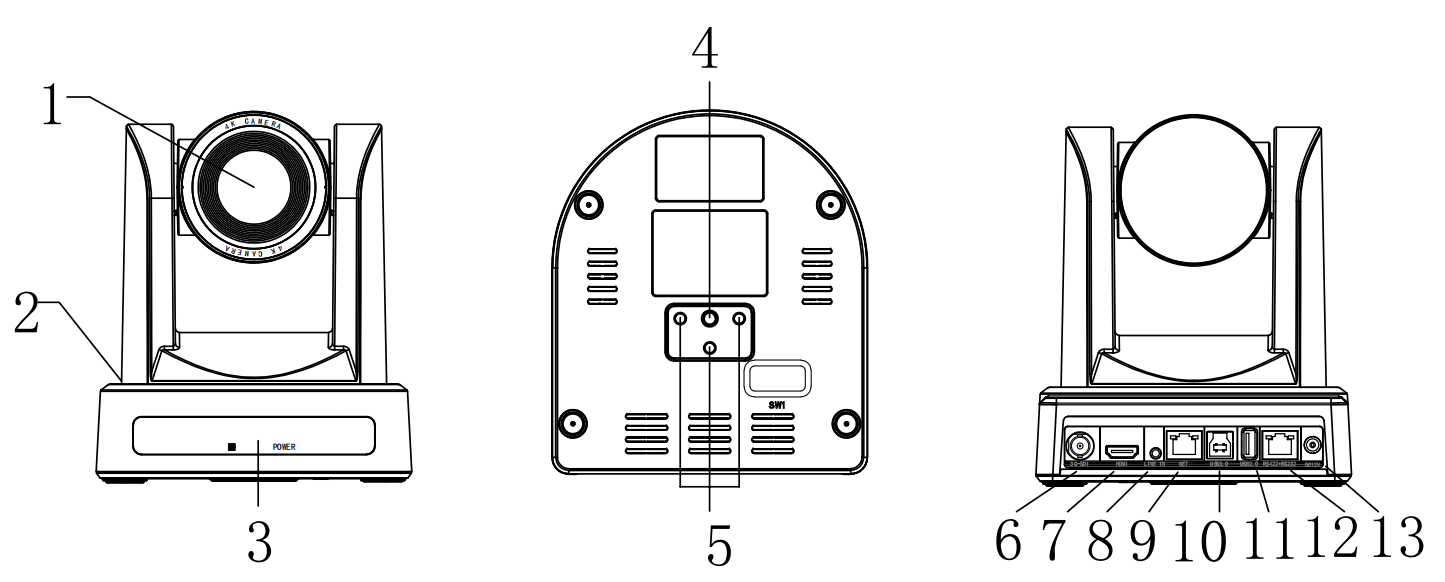

Interface diagram
| 1. Lens | 6. 3G-SDI | 11. USB2.0 Interface(Reserve) |
| 2. Camera | 7. HDMI Interface | 12. RS232/RS485 Interface |
|
3. Remote Control Receiver,
Power Indicator
|
8. LINE IN Interface | 13. DC12V Interface |
| 4. Mounting screw holes | 9. IP Port | |
| 5. Mounting Positioning Holes | 10. USB3.0 Interface |
