Doppler Radar for Low altitude aircraft, ground personnel, vehicle detection and tracking
Overview
The Radar-02A radar is a pulse Doppler system three-coordinate radar featuring azimuth mechanical scanning and elevation phased scanning. It is primarily used for detecting and tracking low-altitude aircraft, ground personnel, and vehicles. The radar can accurately determine the spatial position of targets and can be cascaded with countermeasures such as jamming, laser weapons, and navigation spoofing systems.

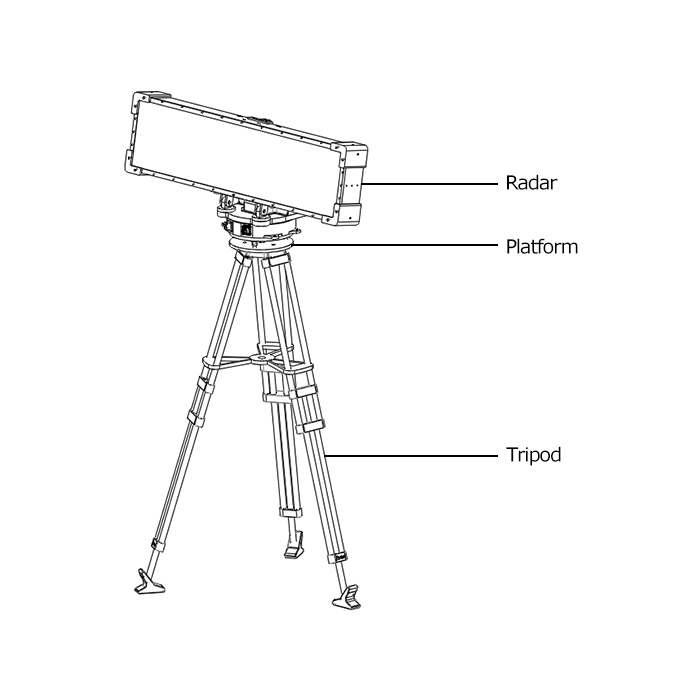

Product Appearance Diagram
Technical indicators
DownLoad PDF
The Radar-02A radar is a pulse Doppler system three-coordinate radar featuring azimuth mechanical scanning and elevation phased scanning. It is primarily used for detecting and tracking low-altitude aircraft, ground personnel, and vehicles. The radar can accurately determine the spatial position of targets and can be cascaded with countermeasures such as jamming, laser weapons, and navigation spoofing systems.

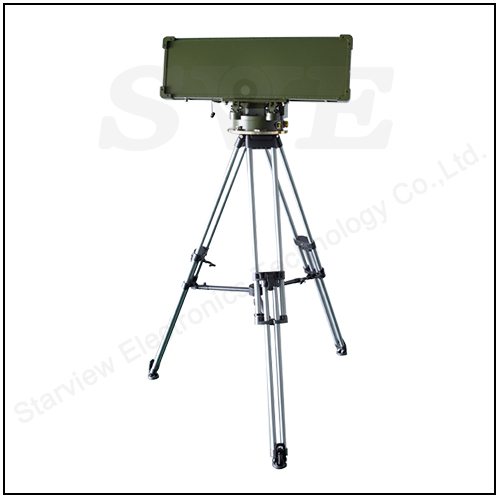

Product Appearance Diagram
Technical indicators
1) Radar band: X band(9GHz~10.2GHz)
2) Detection range (False alarm rate: 10-6, Detection Probability: 90%)
| Drone | RCS=0.01m2(DJI Phantom 4) |
| Power coverage | ≥5km/ data rate 6s; ≥3km/ data rate 3s |
3) Detectable target speed: 1~100m/s;
4) Close range blind spot: ≤180m;
5) Detection range
Direction:0~360°,
Pitch:≥40°(scan),Max 60°(track);
Direction:0~360°,
Pitch:≥40°(scan),Max 60°(track);
6) Multi objective capability
Number of targets: ≥200;
7) Accuracy
Direction:≤0.6°;
Pitch: ≤0.6°;
Distance: ≤10m;
8) Self checking ability
Real time monitoring of the working status of subsystems;
Environmental adaptability
9) Communication protocol: UDP
10) Total power consumption: ≤220W
11) Power supply: AC220V/50Hz
12) Data interface: Gigabit Ethernet port
13) Overall Dimension: ≤850mm×290mm×410mm(L×W×H)
14) Weight of the whole machine
(excluding triangular bracket and rain cover):≤35kg.
1) Operating Temperature:−40℃～+70℃;
2) Storage temperature: −45℃～+75℃;
3) Protection level: IP65.
