5" LCD Video Camera Network and Analog Visa, Onvif, Pelco-P, Pelco-D Hx2-Ndi Protocols Poe Keyboard Controller
Key Features
- Supports both network and analog control modes, with independent IP addresses in network mode;
- Built-in 5-inch screen: Supports real-time preview of the current camera feed via streaming protocols (RTSP only);
- streaming supports ultra-high-definition video at up to 4K@30 resolution;
- Red monochrome, backlit silicone button;
- Supports VISA, ONVIF, PELCO-P, PELCO-D, FREE-D, Panasonic protocols, and network HX2-NDI VISA full compatibility;
- Implement software function control for conference cameras;
- Variable speed four-dimensional joystick for control;
- Support adding and configuring front-end device parameters for PC apps;
- Seven quick control buttons for cameras;
- Support standard POE power supply.

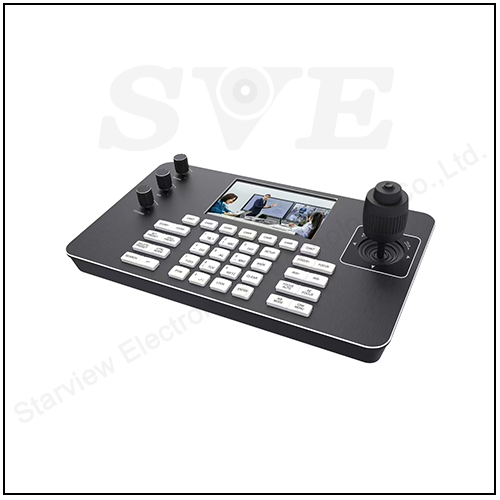

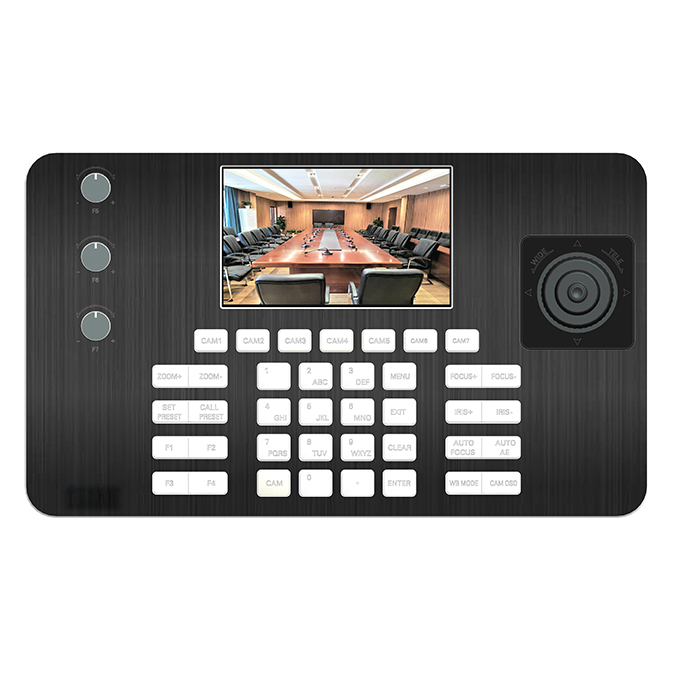

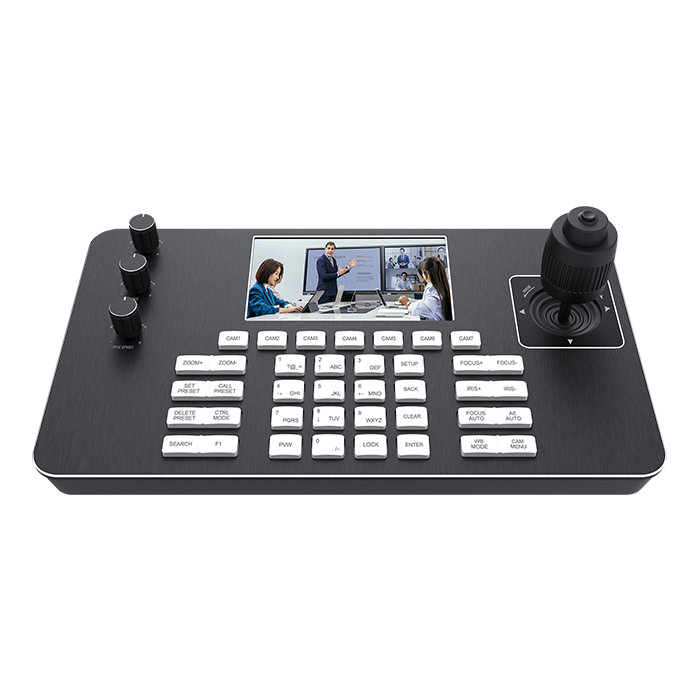

The video conference keyboard adopts a new design of CNC aluminum panel fine sand oxidation upper shell and PC+ABS bottom shell, with an industrial grade LCD screen module. Supports VISA, ONVIF protocol, HX2-NDI and network VISA.
Technical parameters
Technical parameters
| Model NO. | SV-KB2000E |
| Shell technology | CNC aluminum alloy fine sand oxidation+PC/ABS bottom shell |
| Display screen | 5-inch TFT LCD, 800x480 |
| HDMI output | Maximum resolution 1080P30 |
| Joystick | Four dimensional precision joystick, top HOME button |
| Knob | 3D EC11 x3 (R/B GAIN, I/S/G, PT/Z SPEED) |
| Button | Silicone key+red monochrome LED backlight |
| Quick parking spot | CAM1 - CAM7 |
| Preset position | Maximum of 255 (up to 512 for VISA TCP/UDP/Over IP) |
| Network protocol | ONVIF, VISCA TCP/UDP/Over IP, RTSP, NDI, Freed-D, H.264/H265 |
| Serial Port Protocol | VISCA, Pelco D, Pelco P |
| Ethernet | 100Mbps，802.3af POE |
| Keyboard menu language | Simplified/Traditional Chinese, English, French, Spanish, Russian, Arabic, German, Japanese, Korean, Portuguese |

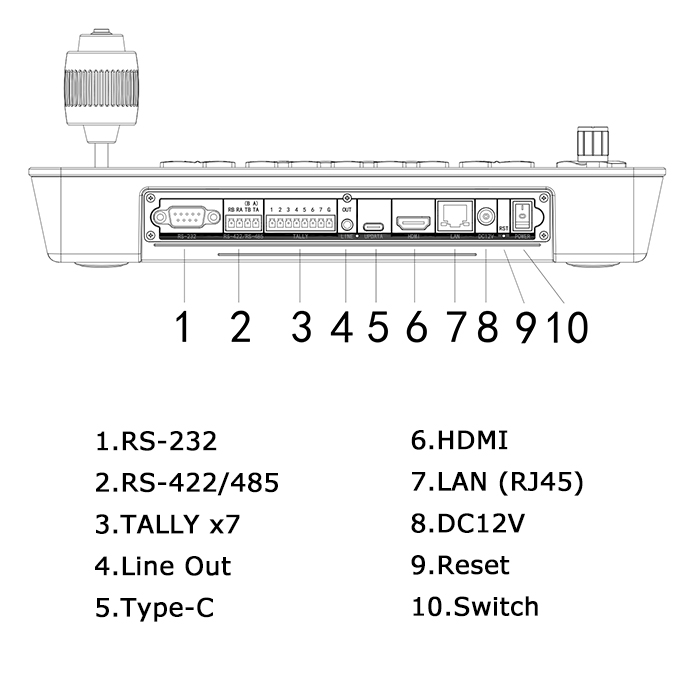

| Serial port | RS-232 DB9、RS-422/485 RJ45 |
| USB | USB Host (Upgrade) |
| TALLY | 7 CH |
| Audio output | Line Out 3.5 mm |
| Power supply | DC 12 V / 1.5 A，POE 802.3af |
| Rated Power | Approximately 18 W |
| Operating Temperature | -10 ℃ ~ +40 ℃ |
| Storage temperature | -20 ℃ ~ +60 ℃ |

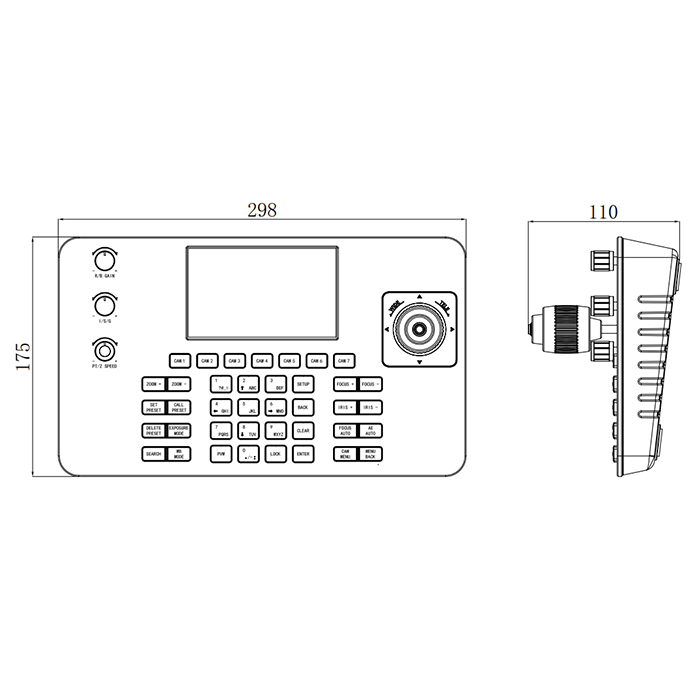

| Overall Dimensions | 298 x 175 x 110 mm |
| weight | Approximately 1.1 kg |
| Usage environment | Indoor |
