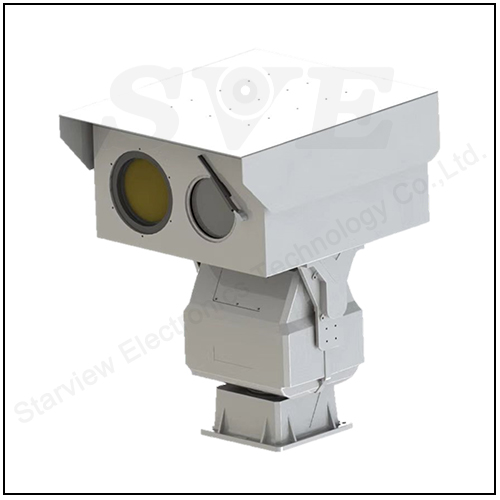

640*512 Thermal Imager 90-1000 Lens +4MP 100X Zoom PTZ Camera

Key Features

• Mid-wave thermal imaging with cooling 640*512 with 90-1000mm lens + 4MP 100X Optical Zoom HD Camera.
• Visible Camera: 1/1.8" 4MP Progressive scan CMOS, 100x (12.5-1250) optical Zoom.
• Thermal imaging detector 640(H) ×512(V), spectral range 3.7~4.8μm.
• Thermal camera optional 90-1000mm lens.
• Support man, car, boat, drone tracking.
• Support wiper function.
• Horizontal 360° continuous rotation, positioning accuracy up to ±0.1°
• platform adopts worm gear drive, power off self-locking protection function, strong wind resistance, stable and reliable operation.
• All-weather environment design, protection level up to IP67, DC36V power supply

Identify tracking characteristics:

• The multi band video object recognition and tracking module supports input of visible light video and infrared video, and supports functions such as multi type object detection, recognition, and tracking under video;
• The product supports video encoding, device management, object detection, deep learning recognition, tracking and other functions, and provides multi machine and touch based management software;
• Support secondary development SDK interfaces and open-source client application software; Item;

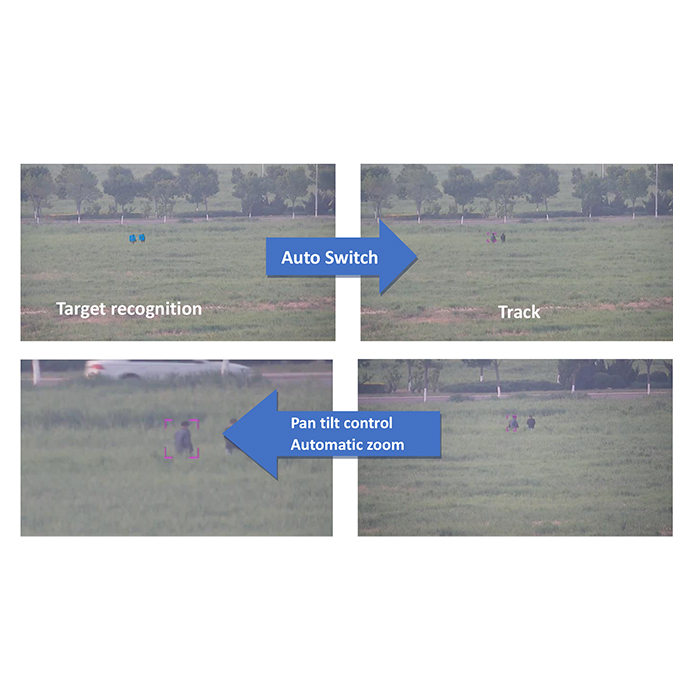

• Fully autonomous completion of precise control of pan tilt speed and lens zoom control during the tracking process, resulting in a fully closed-loop tracking process;
• Support multiple working modes such as recognition, fully autonomous mode, point and track, manual tracking, etc.

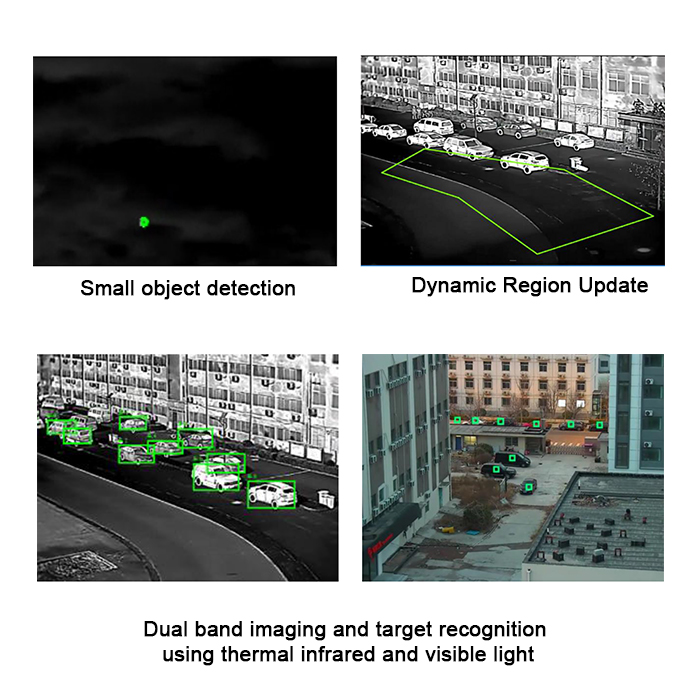

• Support functions such as target recognition, moving target detection, multiple pattern tracking algorithms, and dynamic updating of regions.
• Support deep learning recognition of objects such as airplanes, people, cars, ships, etc. in thermal infrared videos, visible light videos, and low light videos.

The image is target recognition and tracking at a distance of 2Km

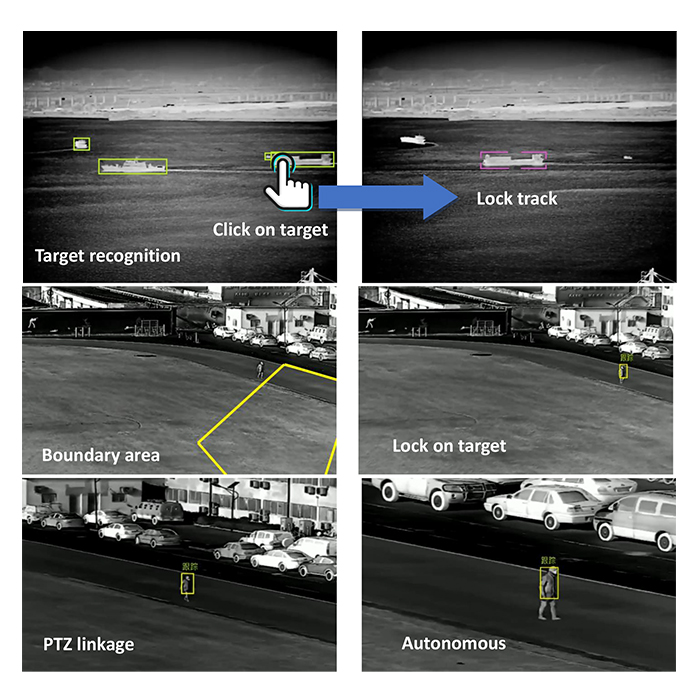

When there are multiple recognized targets in the screen, you can choose the point-to-point tracking mode separately. Click on the target to be tracked on the screen, and the module will lock the target for tracking.
Draw the area to be detected in the screen, and automatically lock and track moving objects entering the area. The area supports irregular shapes.

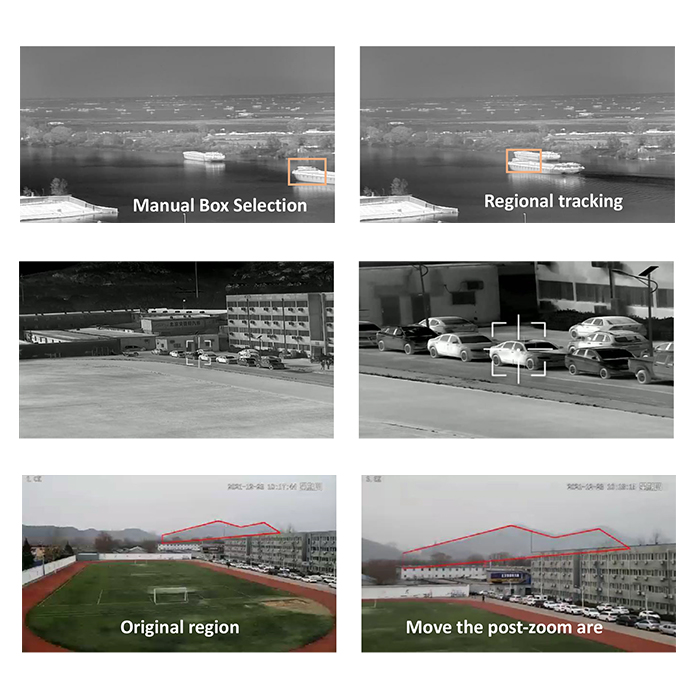

Manual box selection tracking: You can draw any box in the screen for tracking.
