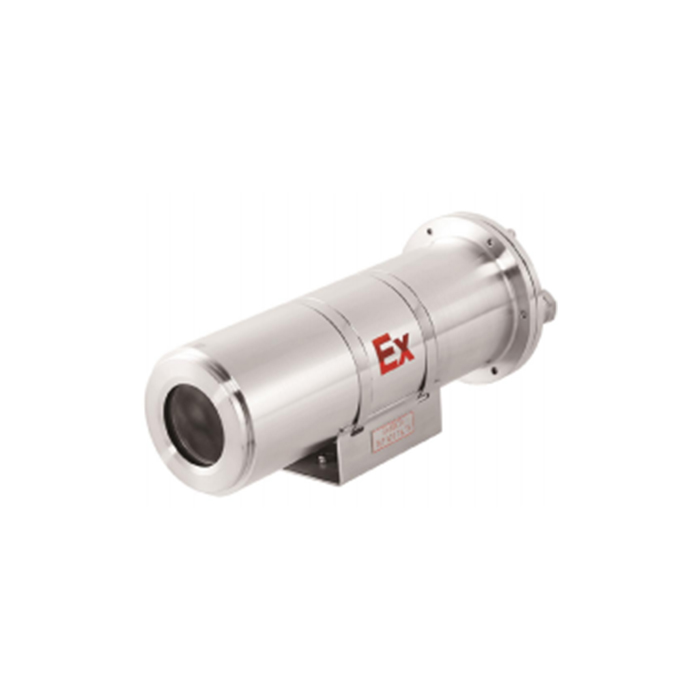

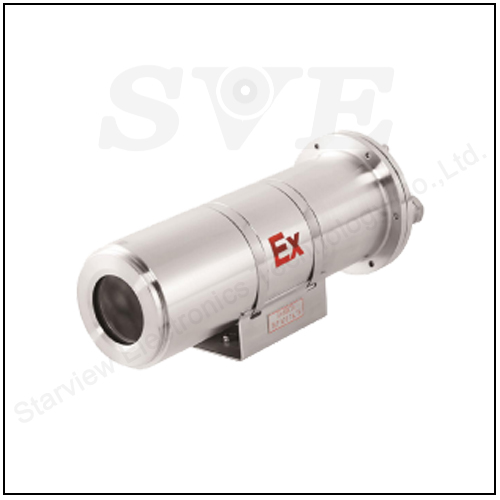

IP68 Stainless Steel IP Camera Vandal Proof CCTV Network 5MP High Temperature Enclosure
* 1/2.9" 5MP Sensor
* Support H.264, H.265 Video Compression
* Main stream:5MP/4MP/3MP/2MP/1MP, Sub stream: 448P/D1/360P/CIF
* Support DWDR/3DNR/BLC/WB
* Support ONVIF protocols, Other band NVR
* Support Privacy zone, Support Human face detecting
* Support OSD character superposition function, support network pair time
* Support audio in&out two-way radio, Audio and video synchronization(Optional)
* Support mobile remote(IOS, android), CMS
* Infrared, white light mode
* 304 stainless steel, anti-explosive housing, waterproof dusty-proof.
* Support customized service, Audio/POE/MIC function, secondary development
* Support H.264, H.265 Video Compression
* Main stream:5MP/4MP/3MP/2MP/1MP, Sub stream: 448P/D1/360P/CIF
* Support DWDR/3DNR/BLC/WB
* Support ONVIF protocols, Other band NVR
* Support Privacy zone, Support Human face detecting
* Support OSD character superposition function, support network pair time
* Support audio in&out two-way radio, Audio and video synchronization(Optional)
* Support mobile remote(IOS, android), CMS
* Infrared, white light mode
* 304 stainless steel, anti-explosive housing, waterproof dusty-proof.
* Support customized service, Audio/POE/MIC function, secondary development
|
Model
|
|
| Model No. | SVN-Ex-LYHSND5 |
| Mechanical properties | |
| Material | 304 stainless steel |
| Surface treatment | Stainless steel original color, optional electric polishing |
| Protection level | IP68 |
| Interface Specification | 2-M25 * 1.5 |
| Weight | About 6.5kg |
| Installation Method | Wall-mounted |
| Electrical performance | |
| Input voltage | DC12V+POE power supply |
| Operating current | ≤2A |
| Camera | |
| Image sensor | 5MP, 1/2.8 "Progressive Scan CMOS |
| Resolution | Main stream: 5 MP(2880*1624), 4MP(2560*1440), 3MP(2304*1296), 2MP(1920*1080), 1MP(1280*720) |
| Lens | 2.8mm |
| HOV | 98° |
| SNR | ≥56dB |
| Minimum illuminance | 0.1Lux/F1.2 (color); 0.01Lux/F1.2 (black and white) |
| Network protocol | ONVIF, P2P, CGI, HTTP, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, IP Filter |
| Platform protocol | Onvif |
| Image Function | Backlight compensation |
| Wide dynamic range | Supports ≥ 120dB |
| Intelligent Analysis | Humanoid detection, custom area |
| Mirror | Supports |
| Electrical Connection |
Network cable + power cord flame retardant composite cable (2m)
|
| Environment | |
| Ambient temperature | -30℃, +70℃ |
| Atmospheric pressure | 80-106KPa |
| Relative humidity | ≤95%RH(+25℃) |
