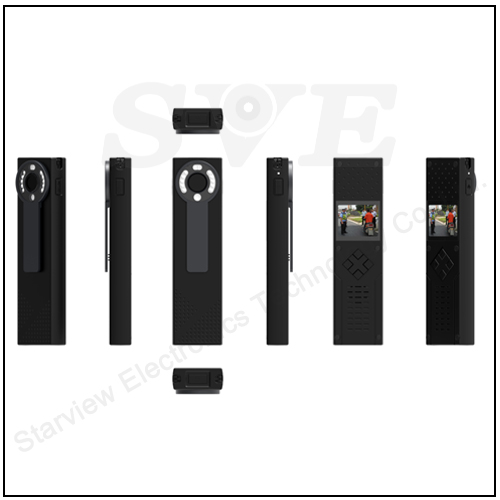

Pen Type Law Enforcement Recorder 3MP Zoom Wireless Portable Camera
- The advanced master chip of master AI8328,AR330 is adopted,Min illumination industrial grade CMOS photosensor element
- Video pixels up to 2304X1296 30 frames / sec camera, H.264 encoding
- Take 20 million pixels, JEPG format
- Built-in Wifi,Dual microphone design, high sensitivity, high signal to noise ratio recording function
- One click playback allows you to quickly view videos and videos.
- An extension of video recording, pre recorded, ensure that the process of law enforcement without missing any enforcement picture.
- 10 infrared light,2 white light
- Realize on-board mode, power on automatic video recording, cycle video
- Single cell screen 1080P can record 3 hours and 30 minutes
- HD 1.5 inch display,Horizontal perspective>=110°Oblique viewing angle:130°Diagonal Viewing:F/2.0
- 16X optical zoom,Night vision, 5 meters visible human face
- Interface types:Micro-SD Card Slot,currency HDMI mini 19PIN,USB2.0 mini 5PIN
| Model | SV-HD95A7 |
| Master control | AIT8328 |
| Sensor | AR0330 3.0MP COMS Sensor Built-in Wifi |
| Camera lens | Horizontal perspective>=110°Oblique viewing angle:130° |
| Diagonal Viewing | F/2.0 |

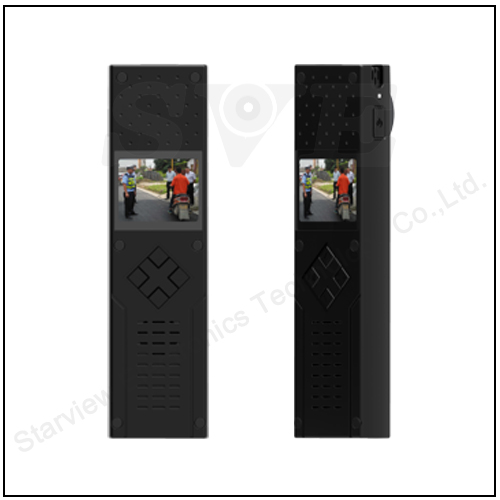

| LCD | HD 1.5 inch display |
| Sensor Resolution | 2304*1296 |
| Video Resolution | 2304*1296 30P / 1920*1080 30P / 1280*720 30P |
| Compression | H.264 |
| Video format | MOV |
| Camera pixel | 2.0MP Photo format:JPEG |
| Storage | 16GB/32G/64G/128G |
| Battery capacity | 1800 mAh |
| Interface types | Micro-SD Card Slot,currency HDMI mini 19PIN,USB2.0 mini 5PIN |
| Size | 140*20*35 |
| Colour | Black |
| Infra-red | 10 infrared light,2 white light |
| Videotape | Single cell screen 1080P can record 3 hours and 30 minutes |
| Enclosure | USB line, power plug, CD, manual |
| Remote control | Scalability |
| One click video | Under the condition of shutdown, long press the video key can automatically boot and video |
| A key screenshot | Video capture a key screenshot |
| Time-lapse photography | After stopping the video, the machine can delay the video, the delay can be set according to the menu, the longest record of 300 seconds |
| WIFI | Built in WIFI function |
| Three shooting | According to the menu settings, can be continuous three |
| Vehicle mode | Realize on-board mode, power on automatic video recording, cycle video |
| Recording double track | Dual microphone, simultaneous video recording. Sound recording |
| Correction of correction | Software has been adjusted for distortion |
|
Cyclic video recording |
When the machine is fully filled, the file loop is covered |
| Zoom function | 16X optical zoom |
| Laser positioning | Matching |
| Infrared night vision | Night vision, 5 meters visible human face |
