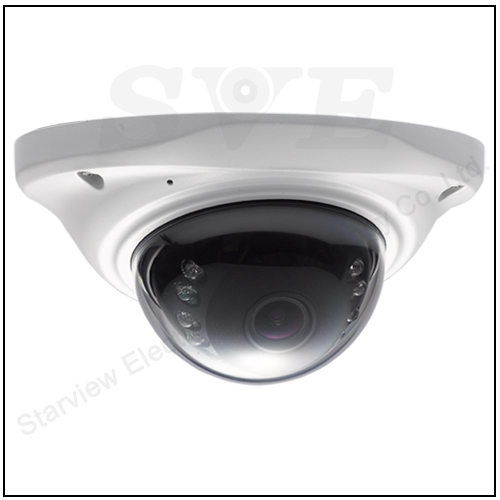

8MP HD AHD TVI CVI IR Mini Dome Camera
Key Features
- 1/2.8" Sony IMX415 CMOS Sensor
- 3840*2160@15fps HD video output
- AHD/TVI/CVI/CVBS video output
- BNC interface,Support Over 500m via 75-3 coaxial cable;
- Support TVI/AHD/CVBS video output,
- High efficiency, long-distance, real-time transmission
- OSD Menu, DWDR, BLC,White balance, 3DNR,
- Privacy masking, Motion Detection ,Digital zoom ;
- IR cut function, Day@Night surveillance
- Ø5X12PCS IR LEDS, IR Distance: 10M
| Model | SV-D6S80TAC |
| VIDEO | |
| Imaging Device | 1/2.8" Sony IMX415 CMOS Sensor |
| Effective Pixels | 3840(H)*2160(V) |
| Horizontal Resolution | 4K(8MP) |
| Video Frame Rate | PAL/NTSC |
| Day&Night | Auto ICR cut |
| S/N(Y signal) | 50dB |
| WDR | 120DB |
| Min.Illumination | Color 0.01Lux@F1.2, 0Lux IR on |
| BLC | Auto |
| AWB | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Video Output | BNC: AHD/TVI/CVI/CVBS video output |
| Transmission distance | Up to 500 meters lossless transmission with 75-3 coax |
| Lens | |
| Focal Length | 2.8 fixed lens |
| ELECTRICAL | |
| Input Voltage | DC 12V10% |
| Power Consumption | DC12V/100Ma(IR ON 250ma) |
| Other | |
| IR LEDS | Ø5X12PCS IR LEDS |
| IR Distance | 10M |
| Operation Tem. | -10C~ +50C RH95% MAX |
| Storage Tem. | -20C~+60C RH95% MAX |
| weight | 0.5KG |

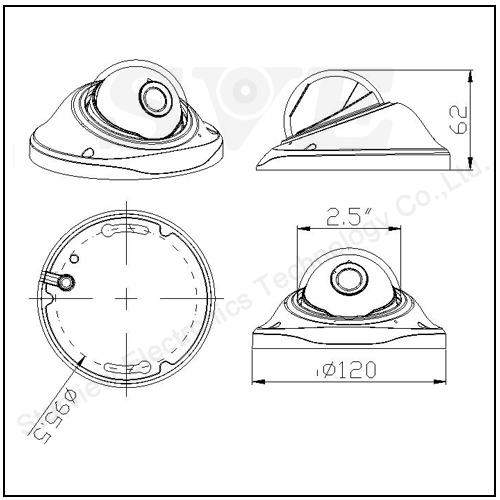

| Dimensions | 120(L)x62(W)mm |
