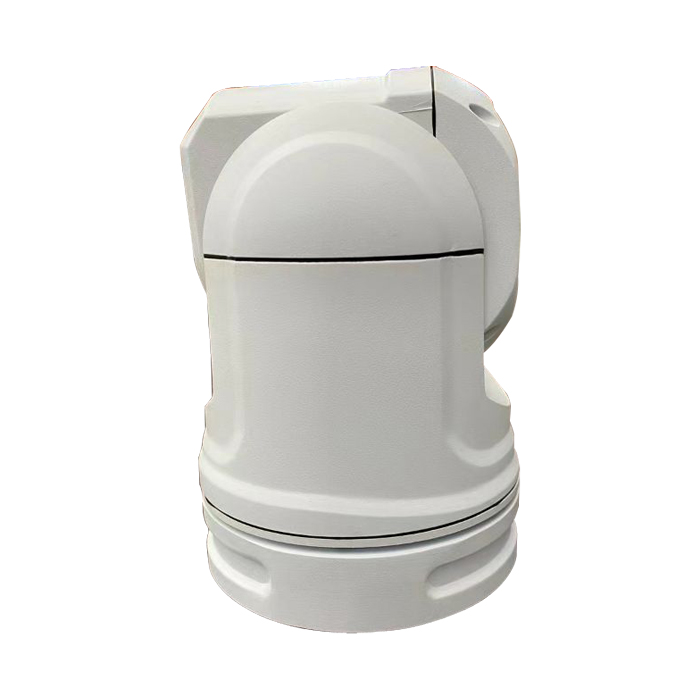

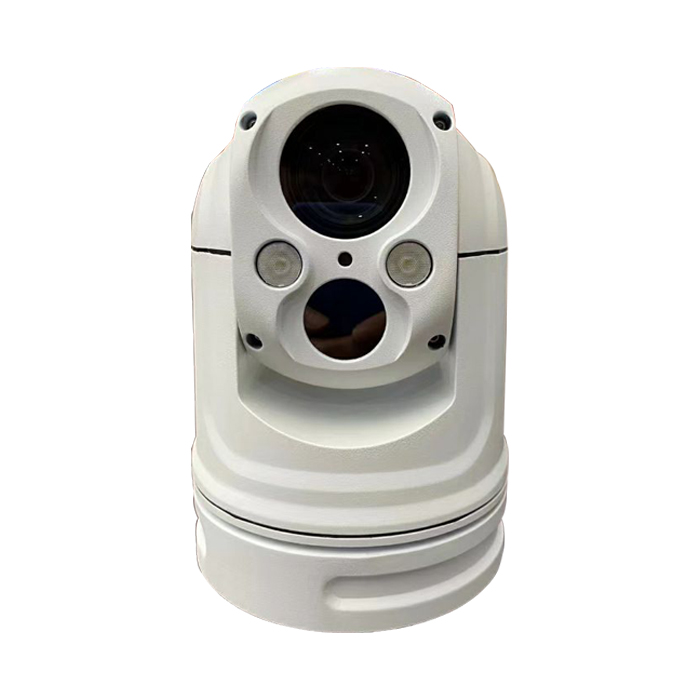

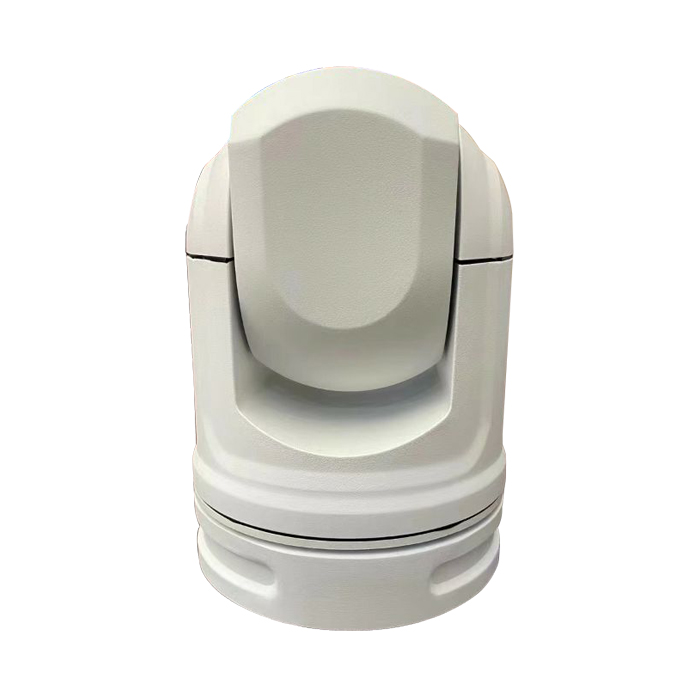

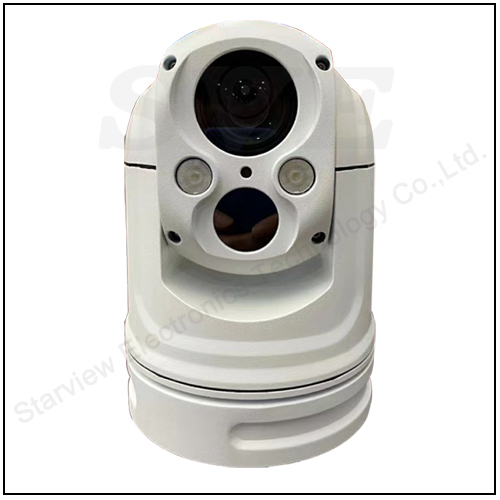

Vehicle Dual Sensor IP PTZ with Thermal Imaging
Key Features
2.0MP 1/2.8” Progressive Scan CMOS;
33X(F5.5-180mm) optical zoom;
Optional Thermal Lens, up to 25mm;
384*288 resolution, high sensitivity sensor, support contrast adjustment;
Weatherproof IP66, 4000V lightning protection;
ONVIF comply;
ideal for mobile surveillance, for vehicle, marine application
Application
Enclosed with aluminum housing and excellent sealing solution, the camera is designed with an ingress protection rating of IP66, protecting the internal components from dust, dirt and liquids.

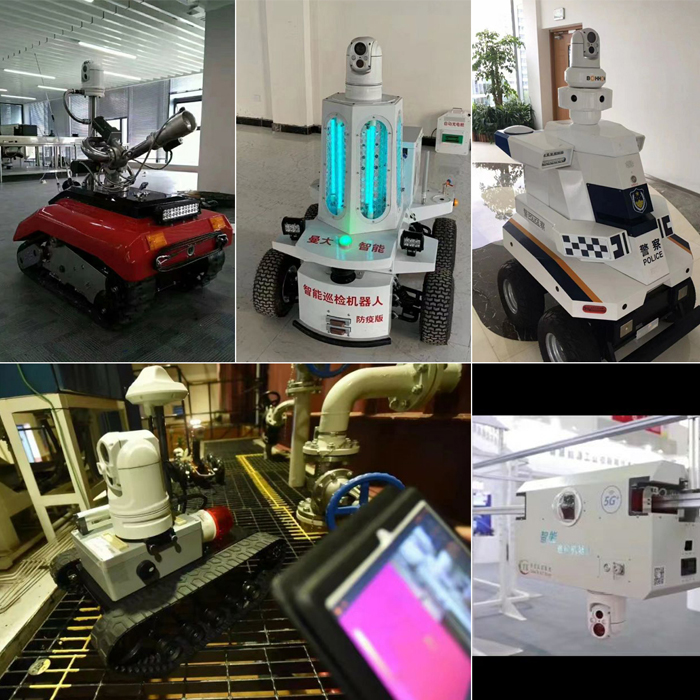

The rugged, mobile mounting options make this camera ideal choice for many mobile surveillance
application:like law enforcement, military vehicle surveillance, specialized robot, marine surveillance.
Technical parameters
Model
Model No. SVN-30X71TH
Thermal Imaging
Array format/Pixel pitch 384x288/17μm
Lens 15mm(10mm, 19mm, 25mm Optional)
HOV 25°X19°
F# 1.0
Thermal Imaging Ethernet
Ethernet Control and Imaging
Type Gigabit
Standard IEEE 802.3
Connector Type RJ45
Image Streaming RTSP, ONVIF
Protocols TCP, UDP, ICMP, DHCP
Temperature measurement
Temperature range -20℃~550℃
Temperature measurement accuracy ≤±2℃
Software function
Parameter setting Video adjustment, Alarm temperature setting, Temperature measurement parameter setting, Full screen mode setting, Image segmentation settings, etc
Temperature measurement Mouse temperature measurement, Temperature cursor overlay, Full screen maximum temperature / minimum temperature
Alarm Multiple alarm temperature points, Alarm snapshot, Alarm switch, Alarm sound switch
Video recording Video recording switch, Manual recording, Automatic recording
Historical data query Query historical alarm data, Process historical alarm data
Visible Camera
Image Sensor 2.0MP, 1/2.8" Progressive Scan CMOS
Effective pixel 1920*1080, 2.0MP
Min. Illumination Color:0.01 Lux; Black:0.0005Lux
Focal Length 5.5-180mm; 33x optical zoom
Aperture Range F1.5-F4.0
HOV 60.5-2.3°(wide-tele)
Minimum Working distance 100mm(wide)-1000mm(tele)
Automatic control ATW, Automatic gain, Auto exposure
Signal to noise ratio ≥55dBG
BLC On / off
Shutter 1/25~1/100,000sec
Day/Night Switch IR cut filter
Digital zoom 16X
Focus mode automatic / manual
Pan/Tilt
Pan Range 360° (endless)
Pan Speed 0.05° ~ 80°/s
Tilt Range –25° ~ +90°
Tilt Speed 0.05° ~ 60°/s
Proportional zoom support
Preset 255
Power-off self-locking support
Data interface RJ45 10Base-T/100Base-TX
Frame rate 25/30fps
Video compression H.265/H.264/MJPEG
Interface Protocol ONVIF
Network protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IPv6
Dual stream support
Local storage Micro SD card storage
Security Password protection, Multi-user access control
General
Power DC 10V-24V
Power consumption 24w
Working temperature -20℃~65℃
Working humidity <90%
Ingress Protection IP66,4000V lightning protection
