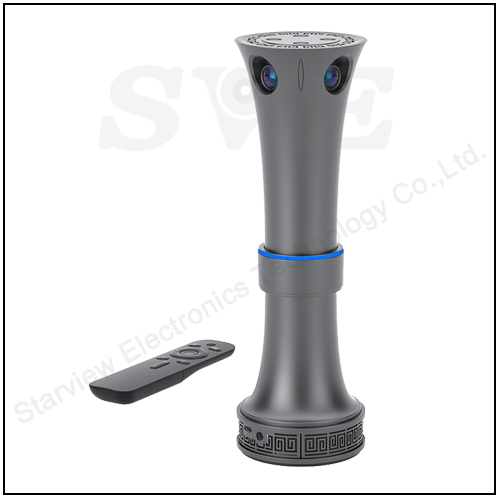

Panoramic 360-degree Video Conference Camera with Speakerphone
Product Description
Specification sheet
- Capturing Panoramic 360-degree Video at 1080P@30FPS
- 360 degree audio pick up range of 6 meters
- Smart audio Video camera with automatic voice tracking
- IR Remote control access to OSD Menu for values adjustable
- Multiple Presentation Mode to highlight the speaker
- Plug and Play. Enjoy easy and simple operation and connection to PC with USB C-type Camera, UVC control available
- UNIVERSALLY COMPATIBLE. Compatible with virtually all web-based video conferencing platforms, including Zoom, GoTo Meeting, Google Meet, Microsoft Teams, Cisco Webex, BlueJeans, and many others.
Specification sheet
| Model No. | SV-PCF11 |
| Video parameter | |
| Image sensor | 1/2.8" CMOS ,2.07 Megapixel, 4 Sensor |
| Focus | f=2.02mm |
| Iris | F2.5 |
| HOV | 360 Panoramic, Close up speaker |
| Focus system | Fixed |
| Exposure Control | AUTO |
| Shutter Speed | 1/25～1/10,000S |
| White Balance | Manual |
| Digital Noise Reduction | 2D/3D |
| S/N Ratio | ≥ 50dB |
| BL Compensation | support |
| Video Adjustable Parameters | Brightness, Contrast, Saturation |
| Multiple Presentation Mode | Voice Tracking Mode, 360 degree Patrol mode, 180 degree Patrol Mode, Close Up speaker Mode |
| OSD MENU | English |
| Voice Localization | |
| Microphone | 8x Omni-directional mic |
| Audio parameter | |
| Microphone | 2pcs omni-directional mic |
| Sensitivity | -38±1dBV |
| S/N Ratio | 65dB(A) |
| Frequency Range | 100Hz~16kHz (Playback: 100HZ-16kHz Record:100Hz–8kHz) |
| Sampling Rate | 48kHz (Playback: 48kHz Record: 16kHz) |
| Automatic Noise Reduction | support |
| Speaker power output | 4.2W MAX |
| Automatic Gain Control | support |
| Echo Cancellation | Advanced echo cancellation algorithm, full duplex communication |
| Pick-up Radius Range | Max 5 Meters, suggest to work in 3 meters distance |
| Interface | |
| Power Supply | JEITA type, DC IN 12V2A input, JEITA Type, DC IN 12V1A input |
| Control connector | IR Remote control |
| USB Interface | 1xType-C, support UVC, UAC protocol |
| Resolution: 1920x1080, 1440x900, 1400x900, 1360x768, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 640x480 | |
| Fps: 30fps | |
| USB2.0: MJPG | |
| USB3.0: MJPG, YUY2 | |
| General Specification | |
| Consumption | < 24W |
| Work Environment | Work Temperature0～50, EnvironmentHumidity10%～95% |
| Dimension (L x W x H) | 90mm x 90mm x 286mm |
| Net Weight | 490g |
| Color | Grey |
Capturing Panoramic 360-degree Video at 1080P@30FPS

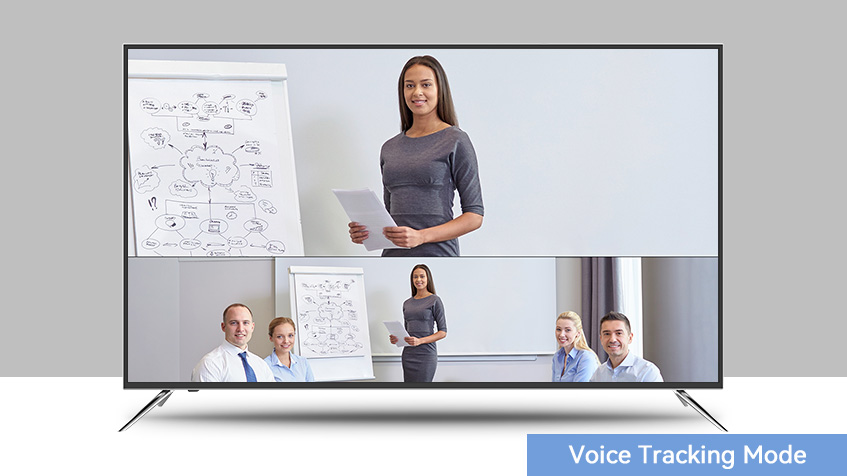

Voice Tracking Mode
To show who is speaking and switch another when the one stop.

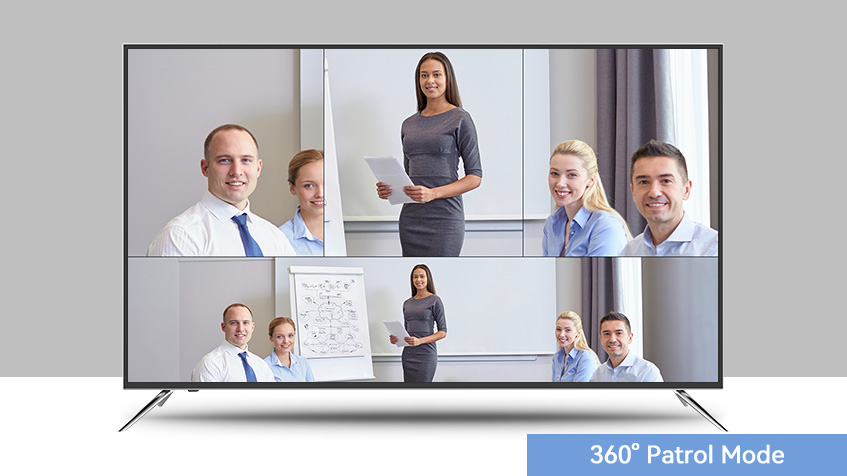

360-degree Patrol Mode

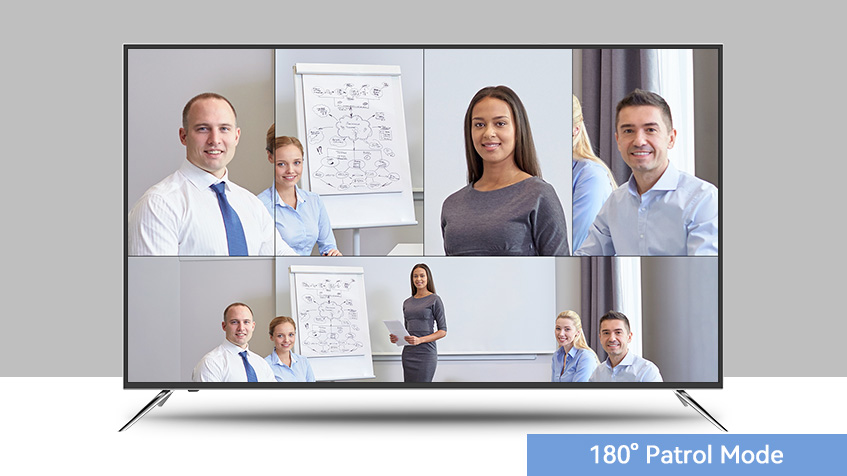

180-degree Patrol Mode

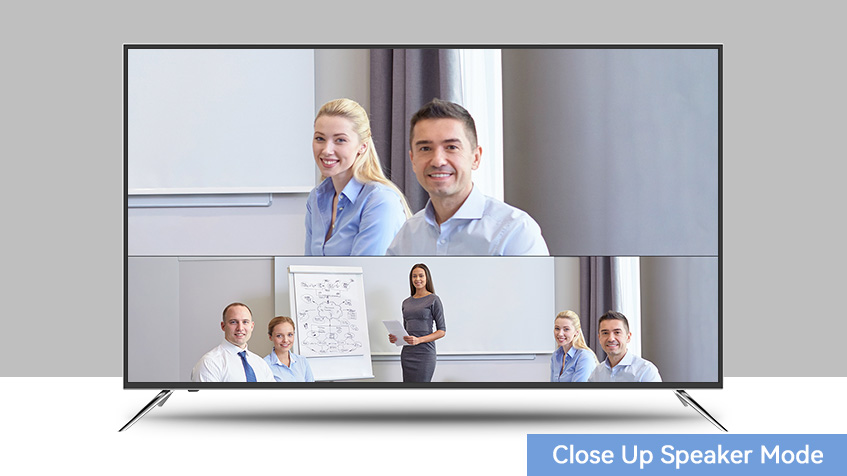

Close Up speaker Mode
Plug and Play
Enjoy easy and simple operation and connection to PC with USB C-type Camera, UVC control available
UNIVERSALLY COMPATIBLE
Compatible with virtually all web-based video conferencing platforms, including Zoom, GoTo Meeting, Google Meet, Microsoft Teams, Cisco Webex, BlueJeans, and many others.
