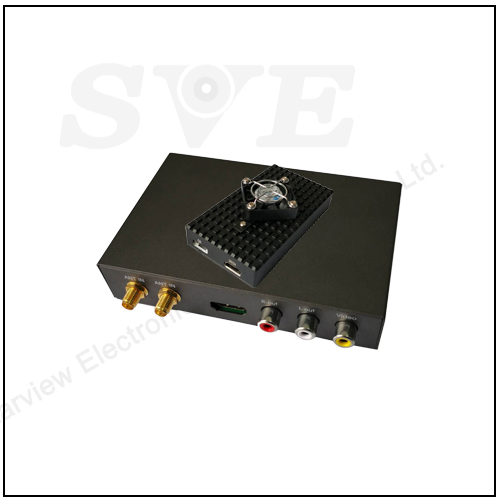

720p Mini COFDM HDMI Transmitter
- 720p Mini COFDM HDMI Transmitter and Receiver
- Machine is small in size and lightweight
- Easy to carry (hide, disguise)
- It has strong anti-interference ability and non-line of sight diffraction ability standard
- Clear picture to HD 720p effect
- Use COFDM coded orthogonal frequency division multiplexing coded orthogonal frequency division multiplexing
- Real-time image is clear and fluent

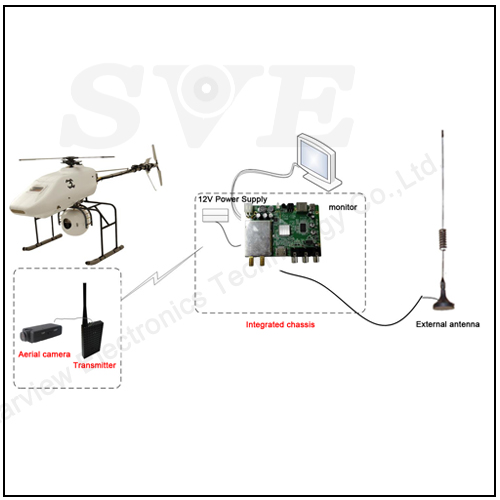

- It is suitable for integrated applications of the aerial image, aerial mapping, power inspection, unmanned vehicle, robot and other wireless images real-time transmission field
| Model | SV-CF80P |
| Transmitters | |
| Working frequency |
300MHz-1000MHz Frequency customization |
| RF power | ≤30dBm |
| Channel bandwidth | 4/6/8MHz |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Protection interval | 1/32, 1/16, 1/8, 1/4 |
| Stream | 2Mbps-16Mbps |
| Time delay | ≤300ms |
| bit error rate | ≤10-6 |
| Transmission distance |
Ground sight distance ≥1km Air-to-ground ≥15km NLOS ≥700M |
| Audio interface | HDMI |
| Encryption method | AES128 |
| Image | 1280*720p |
| Image frame | 24, 25, 30, 48, 50, 60fps |
| Power | 10-15V DC |
| Size specification | (L) 118 * (W) 66 * (H) 22mm |
| Weight | 180g |
| Receivers | |
| Working frequency | 300MHz-860MHz |
| Channel bandwidth | 4/6/8MHz |
| Sensitivity | 8MHz: -97dBm |
| Modulation mode | COFDM |
| Radio frequency interface | SMA |
| Video Output | 1 way HDMI, 1 way CVBS |
| Image | 1280*720p |
| Image frame | 24, 25, 30, 48, 50, 60fps |
| Power | 12V DC at 0.3A |
| Size specification | 115*75*25mm |
