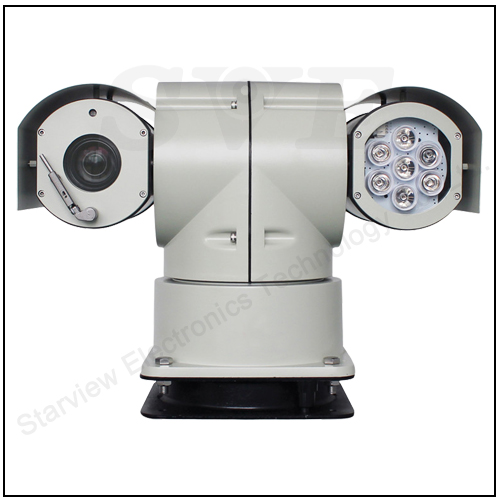

4G Wifi Network HD Vehicle PTZ Camera
Key Features
- Single channel 1080P HD video,storage transmission dual 1080P
- Intelligent bit rate adjustment, greatly reducing the transmission traffic and storage space H.265,backward compatible H.264
- 4G all Netcom communications, remote real-time monitoring, optional dual 4G
- Built in storage card,max 256G,with intelligent bit rate adjustment algorithm,can save much storage space
- Built-in WIFI,support hotspot mode work
- Support station to connect the router to remotely video output
- Support GPS/Beidou module,accurate locating
- Video overlay 4G signal strength information,local remote real-time read signal quality
- Support two-way voice intercom
- Support shock absorption structure, improve equipment stability
- IR distance:120-150m,optional laser light
Application:

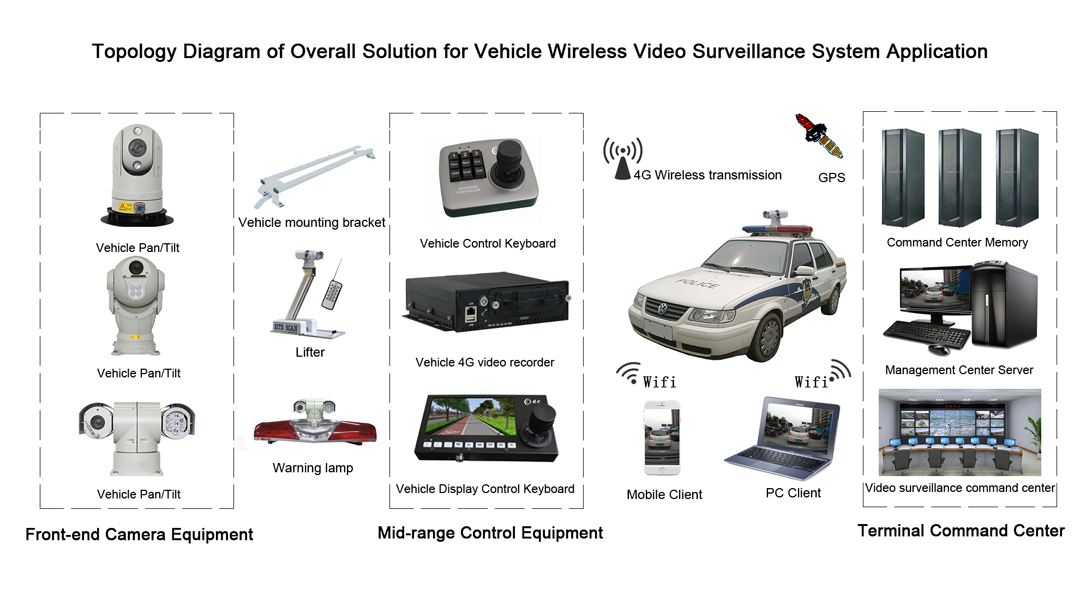

Used in a wide range of fixed point monitoring, vehicle video surveillance, field video surveillance and other places need high-definition monitoring, such as: construction sites, public security vehicles, land resources, sea ports, electricity, ships and so on.
| Product name | 4G Wifi Network Vehicle HD PTZ Camera |
| Camera | |
| Image sensor | 1/3" Ex-view 2.0 Mega Pixel CMOS |
| Resolution | Max 2.0 MP |
| Encoding | H.265./ H.264 |
| Optical zoom | 20x,30x optional |
| Min illumination | Color:0.05Lux @ (F1.4,AGC ON),B/W:0.01Lux @(F1.4,AGC ON),0 Lux with IR |
| Electric shutter | 1/1-1/10,000s |
| Day/night | Auto ICR color to black |
| IR Night vision | |
| IR distance | 120~150m |
| PTZ | |
| Pan speed | 0.1°- 60°/S preset speed 100°/ S |
| Tilt speed | 0.1°- 40°/S preset speed 80°/ S |
| Tilt range | -90°- 90° |
| Pan range | 360° contiously rotation |
| Proportional zoom | Support,change the speed with zoom changed |
| Preset position | 220pcs |
| Compression standard | |
| Video compression standard | H.264 |
| Compression rate | 64Kbps~8Mbps |
| Network | |
| Network | 4G,WIFI |
| Wire network | 1pc RJ45 |
| Positioning | |
| support | GPS,BDS dual module |
| Intercom | |
| Support | Support cluster intercom (optional) |
| Storage | |
| TF card | Max 128G |
| Others | |
| Power supply | DC12V±10% |
| Consumption | Day max 15W night max 50W(with heater) |
| Working temperature and humidity | -20ºC~+60ºC 10%~95%(No condensation) |
| Protect grade | TVS3000V Lightning protection, anti-surge, anti-surge |

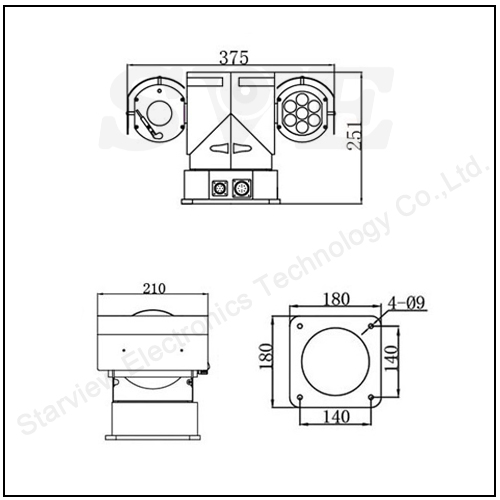

| Full integration size(mm) | 490*307*237 |
| Weight | 10Kg(including package) |
| Protect grade | IP66 |
