Overview

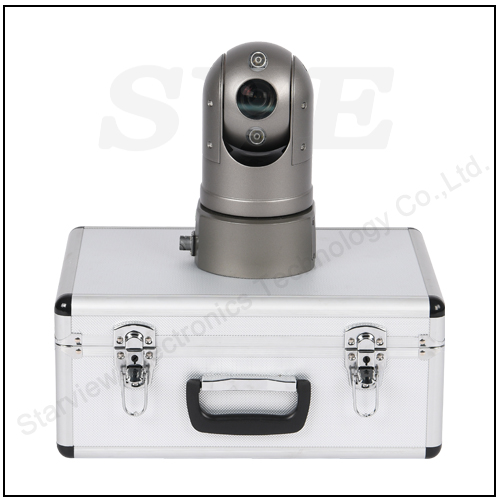

4G PTZ Dome Camera is a full-function and easy to carry, no need installed product for emergency video surveillance. The dome build-in large capacity Li-Batteries, and with waterproof, shockproof and other characteristics, Placed or adsorption the dome on the top of the car when execute temp-tasks quickly,and take it off the car when finished.

Key Features

• 30X 1080P/60fps HD Video for Storage and Transmission, with H.264/H.265 Encoder
• All 4G band,support TD-LTE. FDD-LTE, WCDMA, and EVDO,
• Main & sub Bit-Streams for optional freely.
• Built-in GPS
• Micro SD for Storage,128G
• 360°PTZ dome,Pan speed:240°/s
• Integration design for easy use,built-in huge magnet for easy install
• Built-in 7200mah Li-battery for more than 6 hours use.

Technical parameters

Item	Description
Model	SVN-HDW60-30F
Operation System	Linux
Video
Format	H.264/H.265/SMART264
Bit-steam	Main & Sub bit steam
Definition	1080P/720P/D1 for optional
Monitor	Support
Audio
Listen in	For optional
Storage
Local storage	TF slot X1, MAX capality: 256G
Wirelss
4G/3G	TD-LTE. FDD-LTE, WCDMA, and EVDO
Positon
GPS	Support,External GPS antenna
I/O	RJ45,RS485,12.6V for charger
Camera
Sensor	1/2.8" Progressive Scan CMOS
Video system	PAL/NTSC
Illuminancy	Color;0.005Lux @ (F1.6,AGC ON);Blank & White:0.0005Lux @(F1.6,AGC ON)
Focal length	4.5mm-135mm(F1.6-F4.4)
Field of view	67.8°-2.77°
IR	IR CUT
S/N	>55dB
Shutter	1/1s ~ 1/30,000s
Digital ZOOM	16X
resolution	1920x1080/1280*720 25fps/60fps
3D Denoise	support
Optical Zoom	30X
infrared	60-80m
PTZ
Protocol	PELCO-D/P
Horizontal Direction	360° ,Pan speed:240°/s
Verticality	-15°~90° ,Tilt speed:30°/s
Poewer
Battery	7200mAH
Charger Duration	<4 Hours
Operation time	>6 hours
Environmental
Environmental	-20°C +80°C
Working Humidity	<90%
Size
Main Body	160*210mm
Weight	Net weight:3kg,Gross weight:7.5kg
Accessories list	12.6V 3A Charger*1,Aeronautical line*1
