Key Features

• 1080P High Definition resolution
• H.264 Main Profile @ Level 5.0
• Ambarella SOC
• 32x Optical Zoom & Auto Focus
• Day&Night and auto ICR function
• WDR Function Level adjustable
• Low Bit Rate & Bandwidth Occupy
• 3D Positioning Control
• Keep Watch Function
• 360°continuous pan, 0°to +90° tilt
• 255 presets, Preset accuracy ±0.1°
• Pan/Tilt speed H: 0.1-220°/s, V: 0.1-180°/s
• 8 Sequence,8 Pattern
• 4 High-Power LED ARRAY lights, 4 infrared laser lights
• Night IR Range:120~150m
• Support Audio 1 in & 1 out(Optional)
• Support alarm in or out(Optional)

Technical parameters

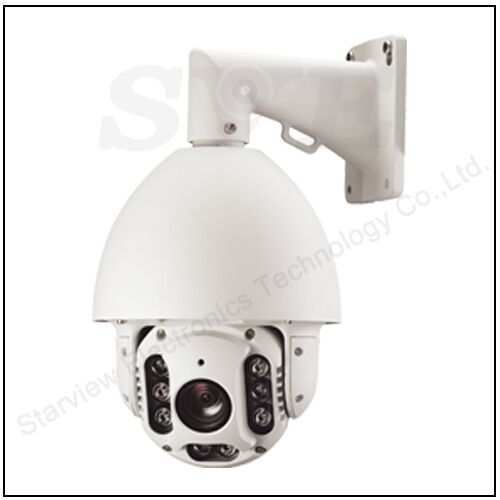

Name	2.0mp HD IP 32x IR High Speed Dome
Model	SVN-32C564HPL2
Lens(Tamron lens)
Optical Zoom	32x Optical Zoom
Focal lenght	f4.7-94 mm
Number aperture	Fw/1.6~Ft/3.0
Horizontal viewing angle	Wide: D72°x H55.5°x V43°(TBD)      Tele: D3.8°x H3.0°x V2.2°(TBD)
Minimum Focus Distance	0.2M(wide)~ 1.0M(tele)
Zoom speed	≤2.7s
Camera
Image sensor	1/3 "1.3MP sony progressive scan CMOS
Horizontal Resolution	>800TVL(1280x1024 pixels),>700TVL(1280X720 pixels)
Min.Illumination	Color: 0.05Lux @(F1.6,AGC ON),ICR ON,B/W: 0.02Lux @(F1.6,AGC ON), ICR OFF
3D DNR	3D - MCTF DNR
4A Automatic Control	AWB/AGC/AE/AIC
Privacy Mask	Support ( up to 4 zones)
WDR	D-WDR Level adjustable
BLC	ON/OFF
Electronic Shutter	Auto,1/10000s to 1/25s
IR-CUT	Day & Night ICR double filter auto switch
Focus	Auto/Manual
PTZ Function
IR LED	4 High-Power LED ARRAY lights, 4 infrared laser lights
Night IR Distance	120~150M
Pan Range	0°~ 360° Continuous pan
Tilt Range	0°~ 90° tilt with "AUTO FLIP"
Speed (H)	0.01°~ 220°/s
Speed (V)	0.01°~ 180°/s
Presets	255 Presets
Sequences	8 Sequences(Each 16 preset points)
Pattern	8 pattern
Outage memory	Support
Watch function	Support
3D control	3D Positioning Control
Proportion match	Support
Compression standard
Videl Compression	H.264/MJPEG
H.264 Level	Main Profile @Level 5.0
Video bit rate	32Kpbs~16Mpbs adjustable
Audio compression rate	G.711(64Kbps) / MP2(16kHz 16bit 32kbps)
Audio compression	G.711 / AAC / MP2
Video frame	25fps/30fps
Maximum resolution	SXGA(1280 x 1024)
Dual-stream	SXGA(1280 x 1024) + Full D1
Image settings	Can adjust the picture format , bit rate , brightness, contrast , saturation , sharpness , white balance
	OSD
	Auto, Manual or scheduled day / night mode
	D-WDR
	Coordinates image mode
Network
Protocols	IPv4,TCP/IP,UDP,HTTP,DHCP,RTP/RTCP,FTP,UPnP,DDNS,NTP,IGMP,ICMP,Onvif
POE	No
Compatible Protocols	ONVIF 2.4
Protection	Password protection, multi- user access
API	SDK
Communication Interface
Network Interface	1 RJ45 10M/100M Adaptive Ethernet port
ALARM	1 Input/1 Output(Optional)
Audio	1 Input/1 Output(Optional)
General
Operating Temp.	-10°C ~+55°C
Humidity	0~90% RH( Non-condensing )
Protection grade	IP66,All-aluminum enclosure , 3000V lightning protection, surge protection
Power Consumption	15W
Package Size	450 x 415 x 270mm
