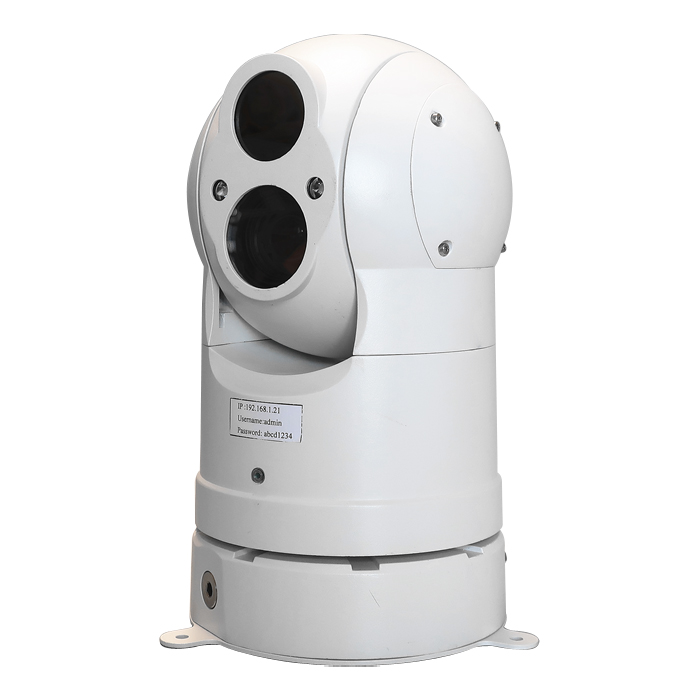

4MP 33X Optical Zoom 500m IR Laser IP PTZ Camera

Product Description

  1. 4MP 2560*1440@30fps video output
  2. 5.3-175mm focal length, 33x optical zoom
  3. IR Laser Distance: 500M
  4. Horizontal: 360° continuous speed: 120° /S, vertical: -20~90° speed: 60° /S
  5. 6 tour tracks, 128 preset positions
  6. Support H.265/H.264/MJPEG Video Compression Algorithm
  7. Strong light suppression, fog transmission, 120dB wide dynamic
  8. Support Micro TF card storage up to 256G
  9. Protection grade: IP67; Aluminum alloy precision casting shell, impact resistance, corrosion resistance
  10. Can be used in a variety of harsh environments, support camera -35 ° start

Model
Model No. SVN-AJ-CR200-A
Camera
Image Sensor 1/2.8" CMOS
Minimum Illumination Color: 0.01; B/W: 0.01
Shutter 1/25s to 1/100,000s
Day/Night Switch IR cut filter
Lens
Focal Length 5.3-175mm, 33X Optical Zoom
Aperture Range F1.6-F4.3
Horizontal field of view 57-1.7°(wide-tele)
Effective distance 0.1m- Infinitely Far  (wide-tele)
Zoom speed Approximately 6s(optical lens, wide to tele)
Laser
Distance 500m
Wavelength 850±10nm(940nm / 980nm)
Laser chip power 2.0±0.3W
Pan&Tilt
Horizontal preset speed 120°/S
Vertical preset speed 60°/S
Horizontal manual speed control 0° ~120° /S
Vertical manual speed control 0° ~60° /S
Horizontal angle 360° unlimited position
Vertical angle +90° ~-20°
Preset position 128 preset positions, 6 tour tracks
Compression Standard
Compression standard H.264/H.265: Baseline, Main Profile, High Profile, MJPEG
Video Code Rate 64 Kbps~16Mbps
Audio Compression G.711A, AAC, G711U, G726.
Audio Code Rate 41.8/64/128Kbps
Main Stream 50Hz: 25fps (2560*1440, 23040*1296, 1920*1080, 1280*720); 60Hz: 30fps(2560*1440, 2304*1296, 1920*1080, 1280*720)
Third Stream 50Hz: 25fps (1280*720, 720*576, 352*288); 60Hz: 30fps (1280*720, 720*480, 352*240)
Digital Doubling 16X
Lens initialization Built-in
Spotlight Mode Automatic / manual / semi-automatic / primary focus
Wide Dynamic 120dB
Image Adjustment Adjustable brightness, contrast, saturation, sharpness, chroma, etc.
Image Settings Area blocking, anti-flicker, defogging, mirroring, flip, backlight compensation, glare suppression, bad spot compensation, wake, power down memory, electronic anti-shake, distortion
ROI 4 Area settings
Smart Detection Perimeter detection, line mixing detection
Smart Alarm Motion detection, video blocking, network disconnection, hard disk error, IP conflict, disk full
Network
Network 1 RJ45 10M/100M adaptive Ethernet port
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,IGMP,QoSR,TMP,IPv6
Interface Protocol ONVIF(PROFILE S,PROFILE G)
General
Storage TF Card Local Storage 256G
Operating temperature -40°C~55°C
Relative Humidity 90%
Protection class IP67
Impact resistance requirement ≥5G
Weight 5kg
