350W LED Pan &Tilt SearchLights
Overview
Technical parameters
- Mainly used in national defense, military departments, as well as large prisons, border guards, sea guards, airports and other places or deserts, Gobi and other harsh environments. It is also suitable to be installed on military vehicles to realize mobile searchlight, used to prevent drones or guide helicopters to land.
- The product adopts professional grade heavy duty turbine worm gear head, which is sturdy, reliable and resistant to strong wind.
Technical parameters
| Model | SVN-PTLED350W |
| Rated power | 350W |
| Rated voltage | 220VAC |
| Light source specifications | Osram LED7000K |
| Lamp Bead Life | Approx. 70,000 hours |
| Color temperature | Approx. 7000K |
| Brightness | Approx. 32,000 LM |
| Beam angle | Approx. 3° |
| Irradiation distance | Approx. 2500M-3000M |
| Pan &Tilt Specifications | Heavy Duty Worm Gear Pan &Tilt |
| Pan &Tilt angle | Horizontal: 355°, vertical: ±60°, With mechanical limit |
| Pan &Tilt speed | Infinitely adjustable speed |
| Control method | Keypad control, software control, programmed control |
| Communication interface | RS485 (optional network communication) |
| Pan &Tilt Functions | Preset Position, Guard Position, Cruise, Line Scanning |
| Protection class | IP65 |
| Housing Material | Aluminum electrostatic spraying treatment |
| Housing Color | 7035gray |

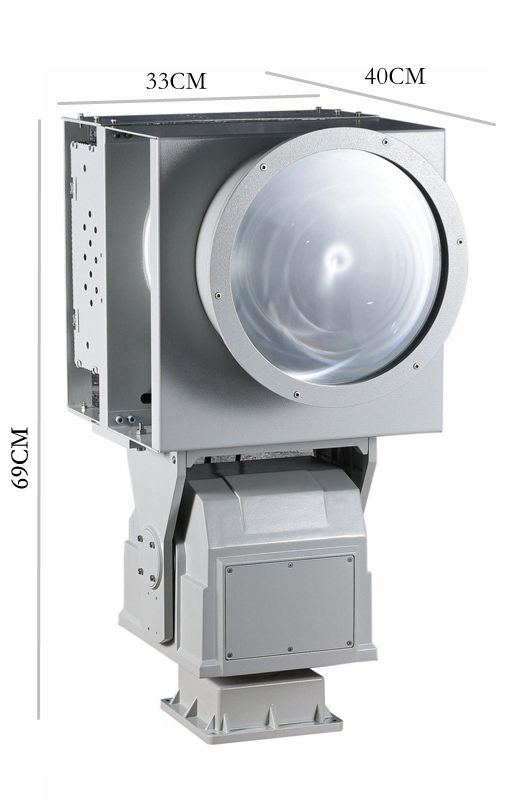

| Volume | 40cm*33cm*69cm |
| Weight | 28KG |
