640*512 Thermal imager 30-150 Lens +4MP 85X Zoom PTZ Camera

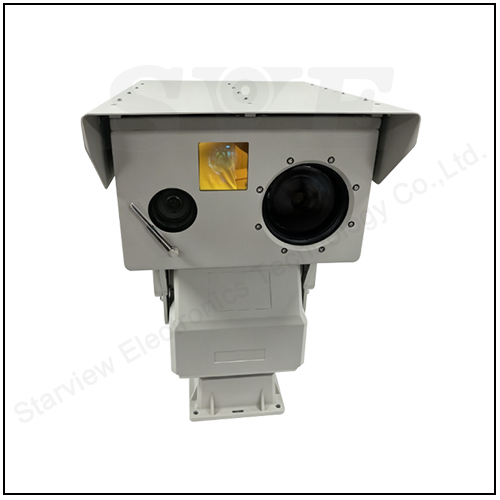

- 640*512 alarm type thermal camera with 30-150mm lens + 4MP 85X Optical Zoom HD Camera.
- Visible Camera: 1/1.8" 4MP Progressive scan CMOS, 85x(10-850) optical, 16x digital.;
- Thermal imaging detector 640(H) ×512(V), response band 8~14μm.;
- Thermal camera optional 30-150mm lens;
- 3000m laser ranging
- Support man, car, boat, drone tracking
- Support wiper function
- Horizontal 360° continuous rotation, positioning accuracy up to ±0.1°
- platform adopts worm gear drive, power off self-locking protection function, strong wind resistance, stable and reliable operation.
- All-weather environment design, protection level up to IP67, DC36V power supply
- The multi band video object recognition and tracking module supports input of visible light video and infrared video, and supports functions such as multi type object detection, recognition, and tracking under video

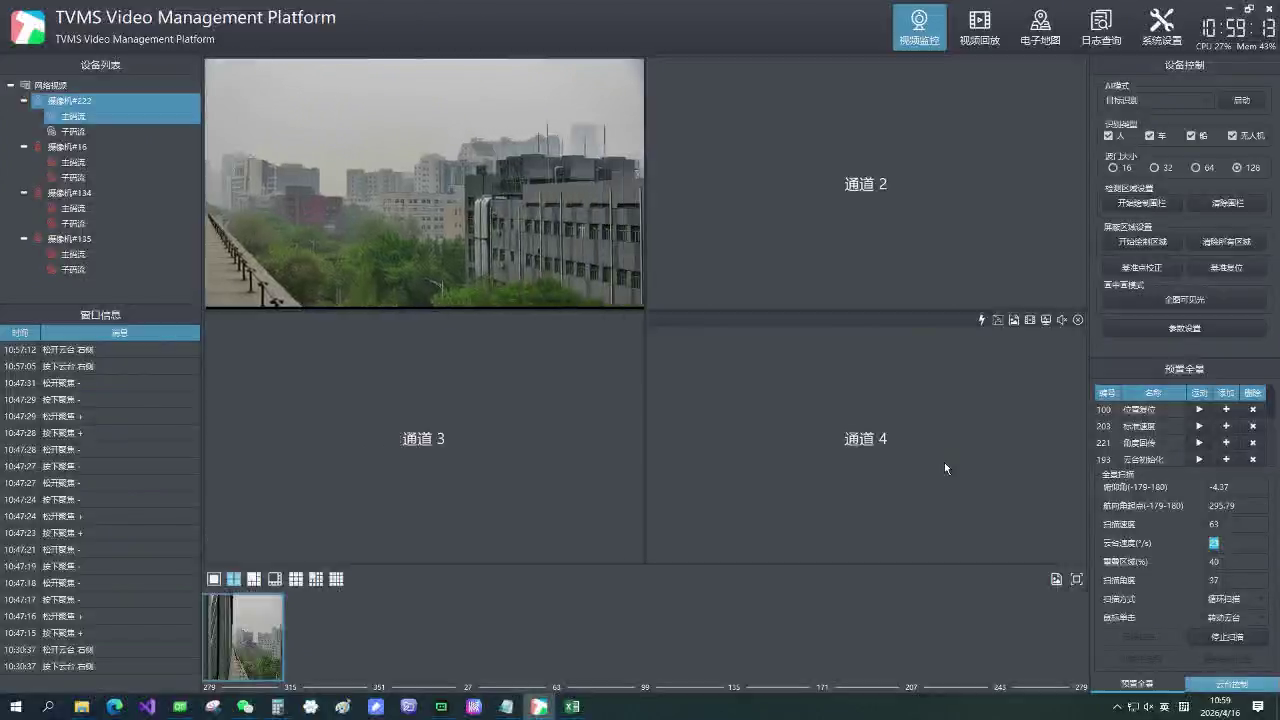

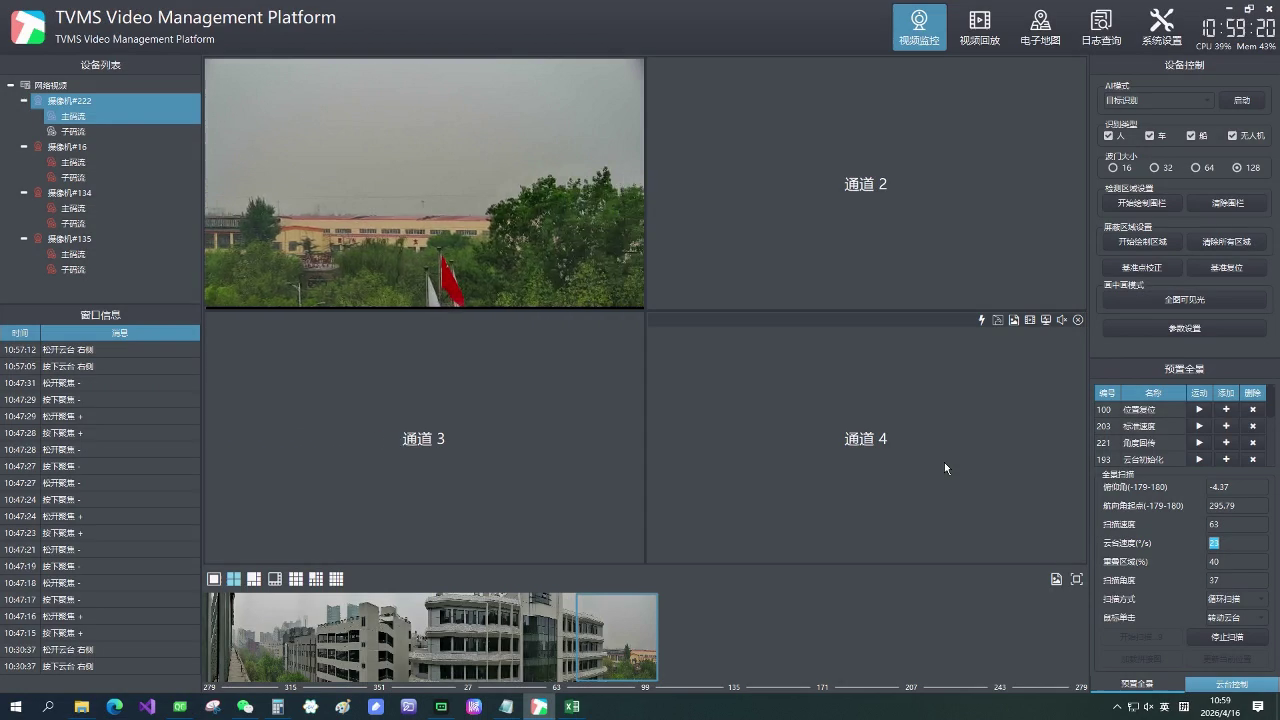

- The product supports video encoding, device management, object detection, deep learning recognition, tracking and other functions, and provides multi machine and touch based management software
- Support secondary development SDK interfaces and open-source client application software; Item

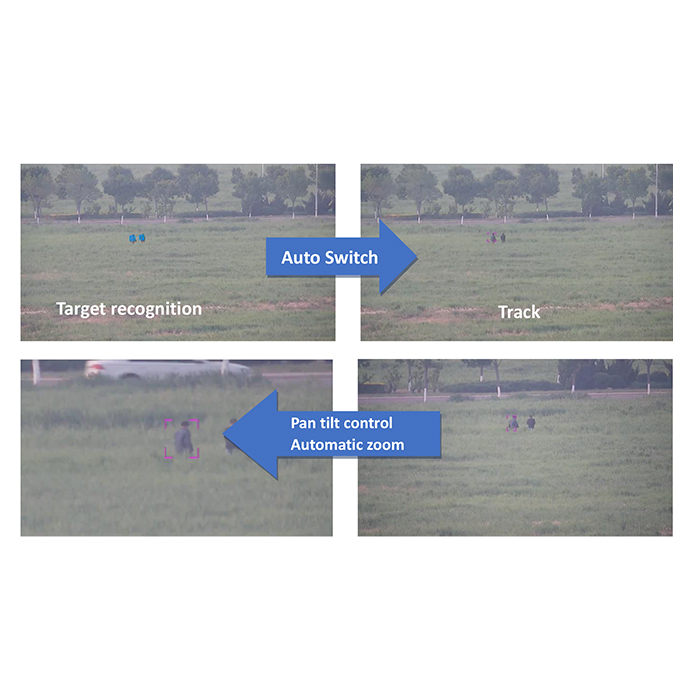

- Fully autonomous completion of precise control of pan tilt speed and lens zoom control during the tracking process, resulting in a fully closed-loop tracking process;
- Support multiple working modes such as recognition, fully autonomous mode, point and track, manual tracking, etc.
Algorithm Pattern
- Support functions such as target recognition, moving target detection, multiple pattern tracking algorithms, and dynamic updating of regions.
- Support deep learning recognition of objects such as airplanes, people, cars, ships, etc. in thermal infrared videos, visible light videos, and low light videos.

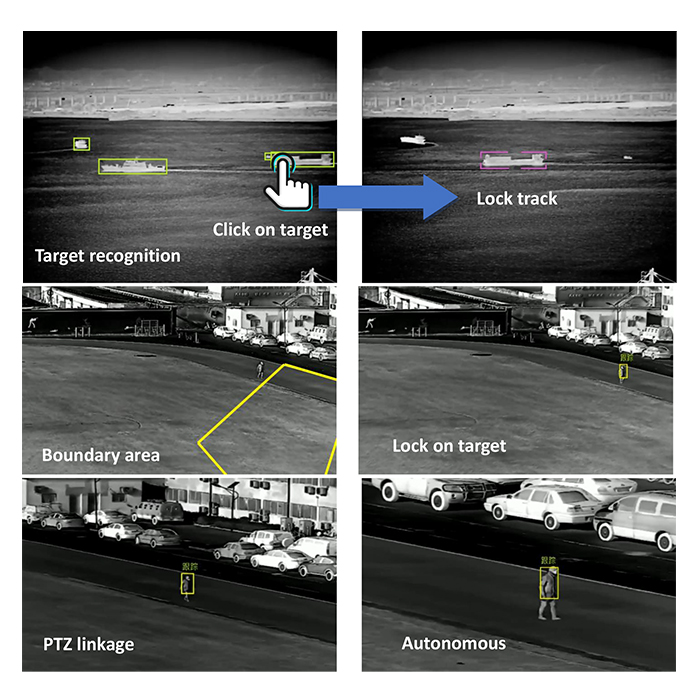

- Support multiple tracking modes such as fully automatic tracking, point-to-point tracking, moving target detection tracking, manual frame selection tracking, and wave gate tracking, and provide closed-loop gimbal and pod motion control and adaptive zoom function during the tracking process.
- Provide multiple modes of solutions for tracking situations such as target occlusion and loss.
- In automatic tracking mode, it avoids the trouble of traditional box selection and the inability to adapt to target size in wave gate tracking. After accurately identifying the target type, it automatically selects targets for tracking.
When there are multiple recognized targets in the screen, you can choose the point-to-point tracking mode separately. Click on the target to be tracked on the screen, and the module will lock the target for tracking.

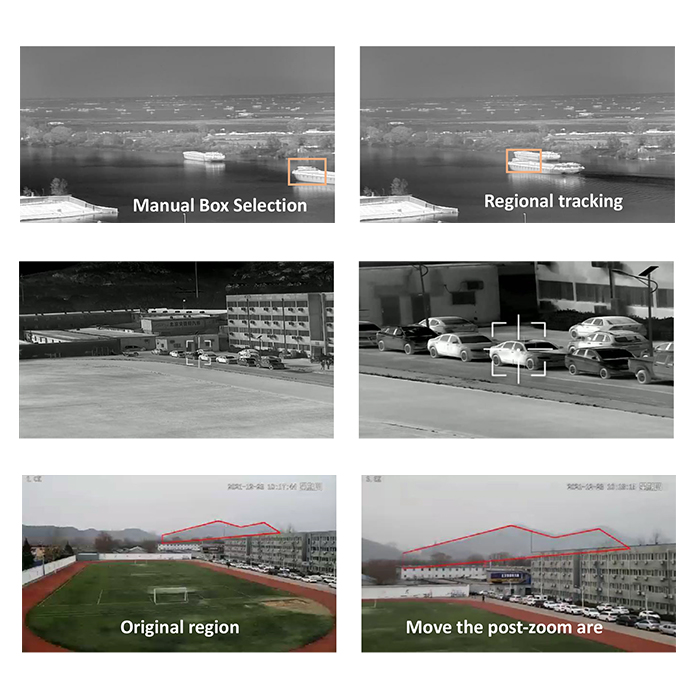

Draw the area to be detected in the screen, and automatically lock and track moving objects entering the area. The area supports irregular shapes.
Draw the area to be detected in the screen, and automatically lock and track moving objects entering the area. The area supports irregular shapes.
Manual box selection tracking: You can draw any box in the screen for tracking.
Gate tracking: Click on the screen to track directly according to the set gate size.

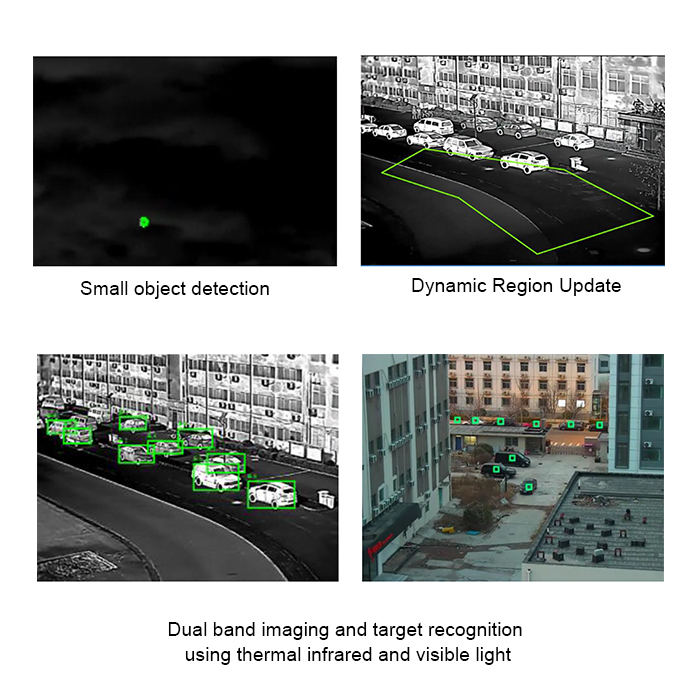

Dynamic Area: Supports irregular boundary area management, and automatically updates the position of the area in real-time during pan tilt and lens zoom processes.
Gate tracking: Click on the screen to track directly according to the set gate size.
Dynamic Area: Supports irregular boundary area management, and automatically updates the position of the area in real-time during pan tilt and lens zoom processes.

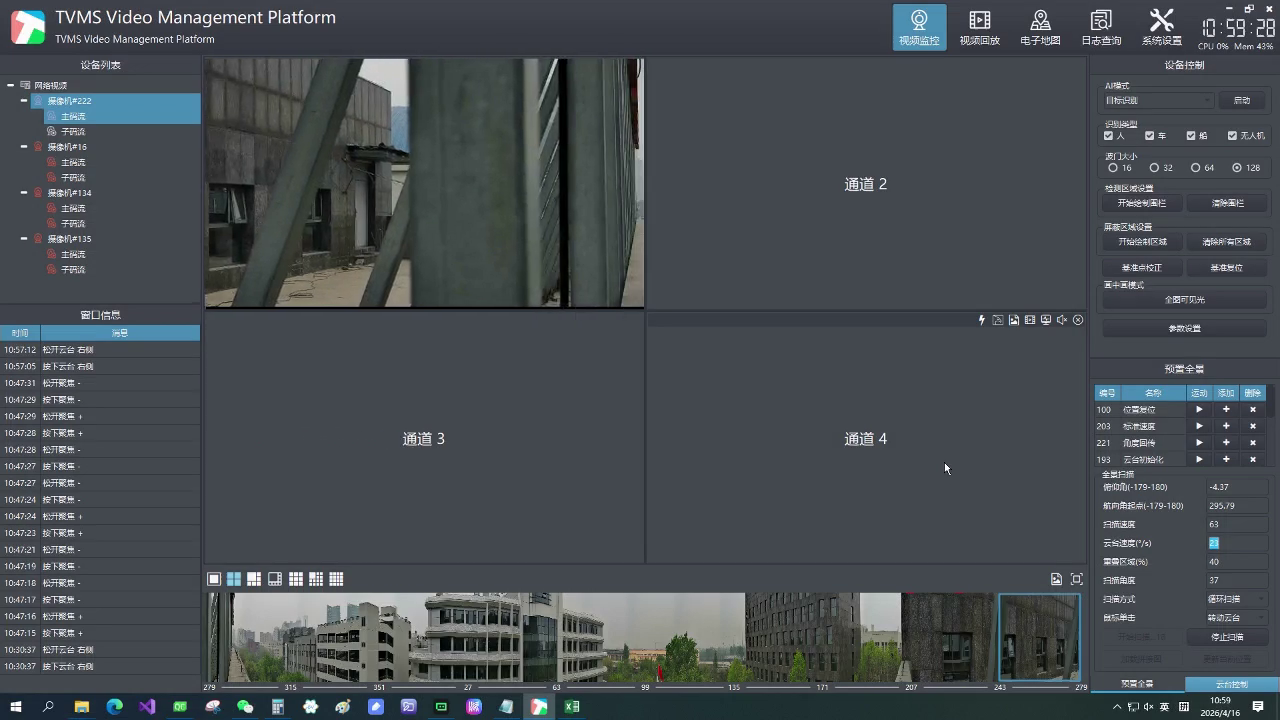

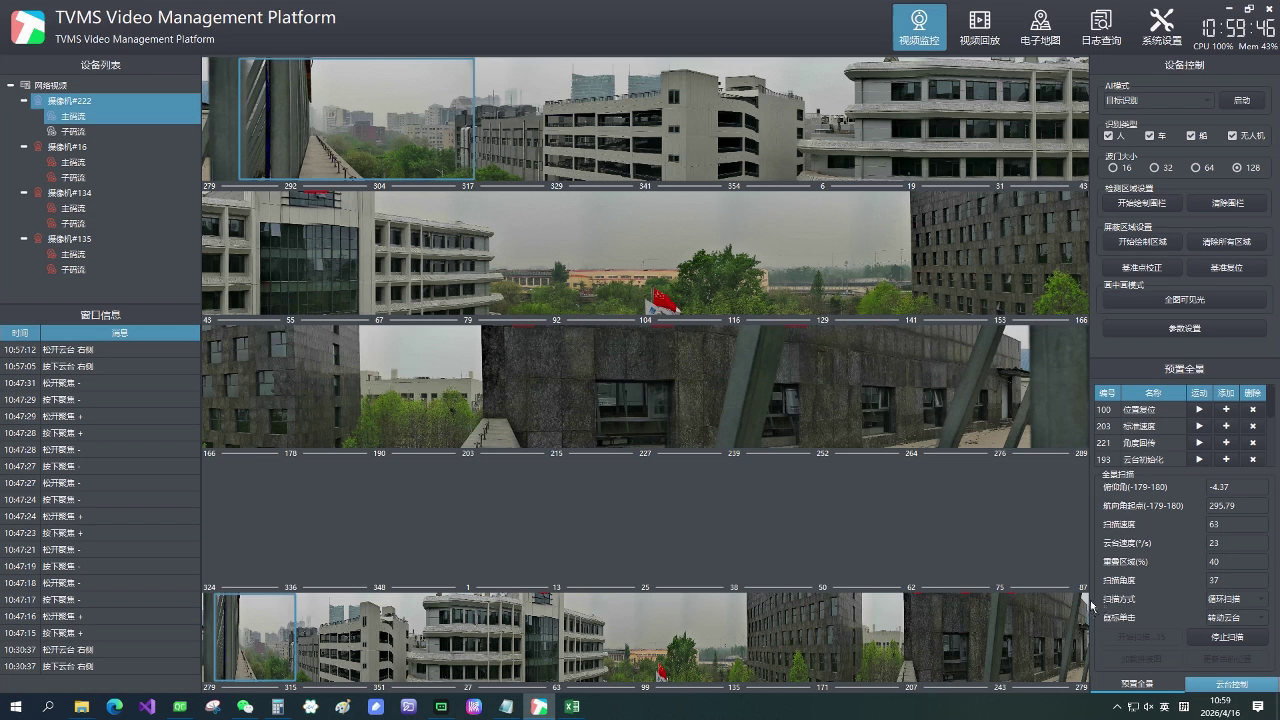

After rotating and scanning the panoramic view, the system automatically splices it together
Application
Suitable for forest fire prevention, border defense, environmental protection, petrochemical, power and other industries, as well as long-distance area inspections
Technical parameters
| Model | SVN-TCPZ/640-150MM/85X |
| Thermal imager Camera | |
| Detector type | Uncooled infrared focal plane sensor |
| Material type | Vanadium oxide |
| Original pixel | 640(H) ×512(V) |
| Pixel spacing | 12μm |
| Thermal sensitivity (NETD) | 50mK @F1.0 |
| Response band | 8~14μm |
| Frame rate output | 25/30Hz |
| Thermal camera lens | |
| Lens type | Continuous zoom |
| Focusing mode | Electrofocus |
| Focal length | 30-150mm |
| F-value | F1.0 |
| FOV | 14.6° x 11.7°-2.9° x 2.3° |
|
Detection distance (human body: 1.8x0.5m) |
150mm Detect 4000m, Identify 2000m, Recognize 1100m |
|
Detection distance (Vehicle: 4.0x1.4m) |
150mm Detect 12000m, Identify 5000m, Recognize 2000m |
| Fire point detection distance (2mx2m) | 8800m |
| Visible Camera | |
| Image Sensor | 1/1.8" Cmos CMOS |
| Resolution | 2668(H)×1520V) |
| Focal length | 10-850mm, 85X Optical Zoom |
| FOV | 42-0.44° (wide angle - telephoto) |
| Aperture | F2.0-F6.8 |
| Shutters | 1/5-1/20,000s |
| Minimum illumination | Color: 0.001 Lux @ (F1.5, AGC ON); B/W: 0.0001 Lux @ (F1.5, AGC ON) |
| SNR | 55dB |
| Focusing method | Auto/manual/semi-auto/one-touch focusing |
| Laser distance meter | |
| human eye safety level | Class1/1M |
| laser wavelength | 1535±5 nm |
| laser divergence angle | ~0.6 mrad |
| Receiving caliber | Φ16.5 mm |
| Maximum range | ≥3000 m; to vehicles ≥2500 m; to people ≥1500 m; to drones ≥600 m |
| Minimum range | 15m |
| Ranging accuracy | ±1 m |
| Ranging frequency | 1~10 Hz |
| Quasi-test rate | ≥98 % |
| PTZ control | |
| Angle of rotation | Horizontal: 0° ~ 360° continuous rotation, Vertical: +45° ~ -45 |
| Rotation speed | Horizontal: 0.1° ~60° /s; Vertical: 0.1° ~30° /s |
| wiper function | support |
| Preset | 256 |
| Preset Accuracy | ±0.1° |
| Cruises | 6 groups |
| Trajectory | support |
| Scan | horizontal scan |
| Audio and Video | |
| video streaming | Visible Camera: Main stream 2688×1520/1920×1080 @25/30fps; Sub stream D1/VGA/CIF/QCIF/QVGA @25/30fps |
| Thermal Imaging: Main Stream D1 @25/30fps; Sub stream CIF @25/30fps; | |
| Stream Control | CBR/VBR |
| Stream Range | Thermal Imaging: Main Stream 100Kbps~6000Kbps; Sub-stream 10Kbps~1500Kbps |
| Visible Camera: Main Stream 500Kbps~12Mbps; Sub-stream: 100Kbps~6Kbps | |
| Audio encoding | G711_A,G711_U,RAW_PCM,NONE |
| Audio streaming | 64kbps(G711),128kbps(RAW_PCM) |
| Video format | PAL/NTSC |
| Alarm command output | support |
| AI functionality | |
| Identification and Tracking | People, cars, boats, drones, etc |
| Algorithm Pattern | Support functions such as target recognition, moving target detection, multiple pattern tracking algorithms, and dynamic updating of regions. |
| Target tracking mode | Support multiple tracking modes such as fully automatic tracking, point-to-point tracking, moving target detection tracking, manual frame selection tracking, and wave gate tracking |
| Network service | |
| Network protocol | IPv4/IPv6 ,HTTP, HTTPS,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x, DDNS, PPPoE, FTP, SNMP, QOS |
| Access protocol | ONVIF, CGI, SDK |
| Concurrent Users | 10CH |
| Storage | NAS, Micro SD Card, supports up to 128GB |
| User permissions | Administrator, Operator |
| WEB Access | ≤IE11, Chrome, Firefox |
| Interfaces | |
| Network | RJ45 10/100Base-T |
| PTZ control | RS485 |
| Alarm Interface | 1 alarm input, 1 alarm output |
| Reset | Built-in camera |
| SD card interface | Built-in camera, supports up to 128GB Micro SD card |
| General | |
| Power supply | DC24V or DC36V |
| Power consumption | ≤200W |
| Working environment temperature | -40ºC~55ºC |
| Humidity of working environment | 0~95% (non-condensing) |
| Shell material | metals |
| Protection class | IP67 |
| Installation Methods | vertical installation |
| Dimension | Shroud size special customization, subject to actual |
| weights | 50Kg |
